with the lowest value has the highest priority and is selected as the active
LACP.

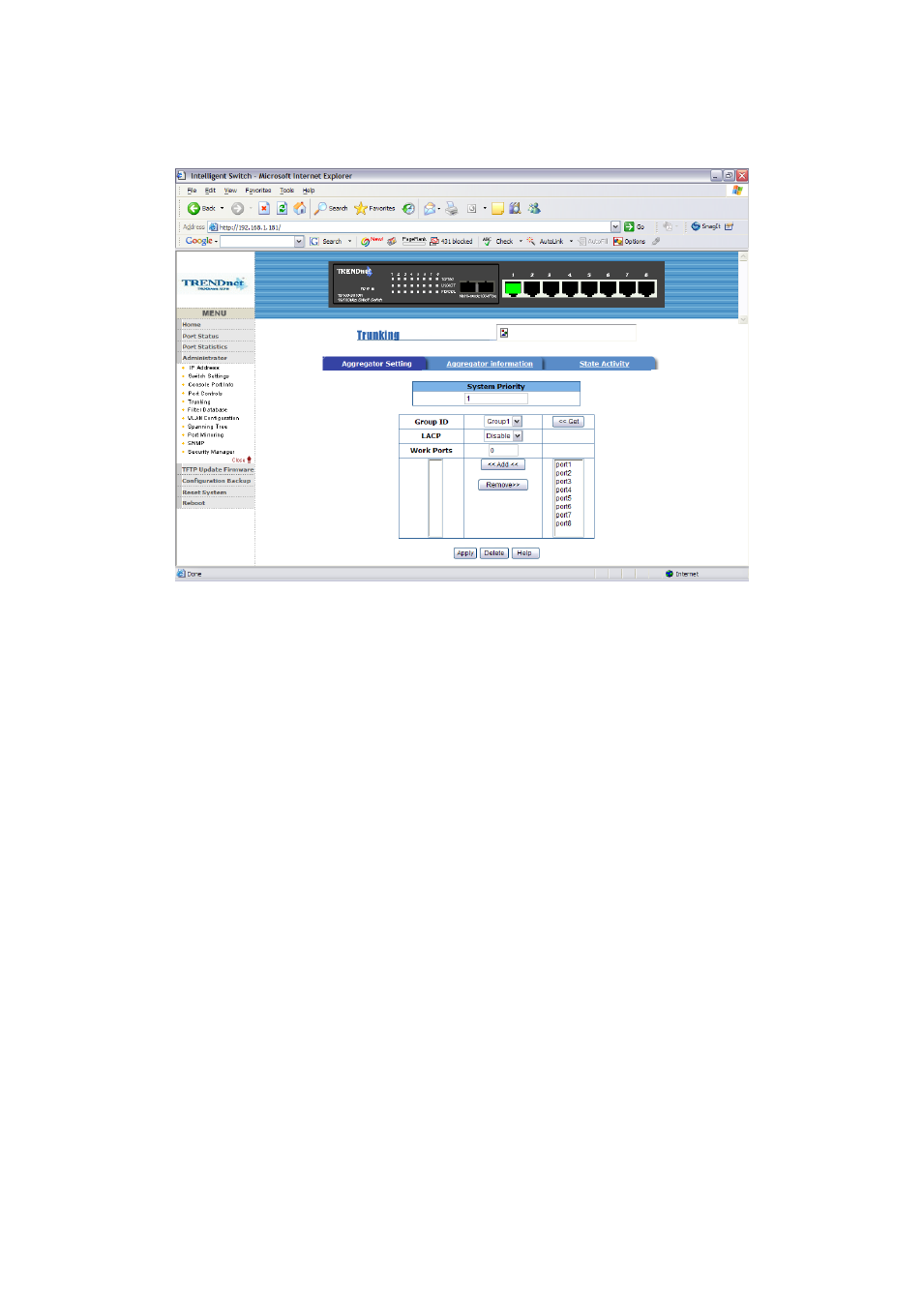

1.Group ID: you can create a link aggregation across two or more ports,
choose the "group id" and click "Get".
2.LACP: If enable, the group is LACP static trunking group. If disable, the
group is local static trunking group.
All ports support LACP dynamic trunking group. If connecting to the device
that also supports LACP, the LACP dynamic trunking group will be created
automatically.
3. Work ports:The max number of ports can be aggregated at the same
time. If LACP static trunking group, the exceed ports is standby and able to
aggreate if work ports fail. If local static trunking group, the number must
be the same as group ports.
4. Select the ports to join the trunking group
5. If LACP enable, you can configure LACP Active/Passive status in each
ports.
6. Click Apply.
