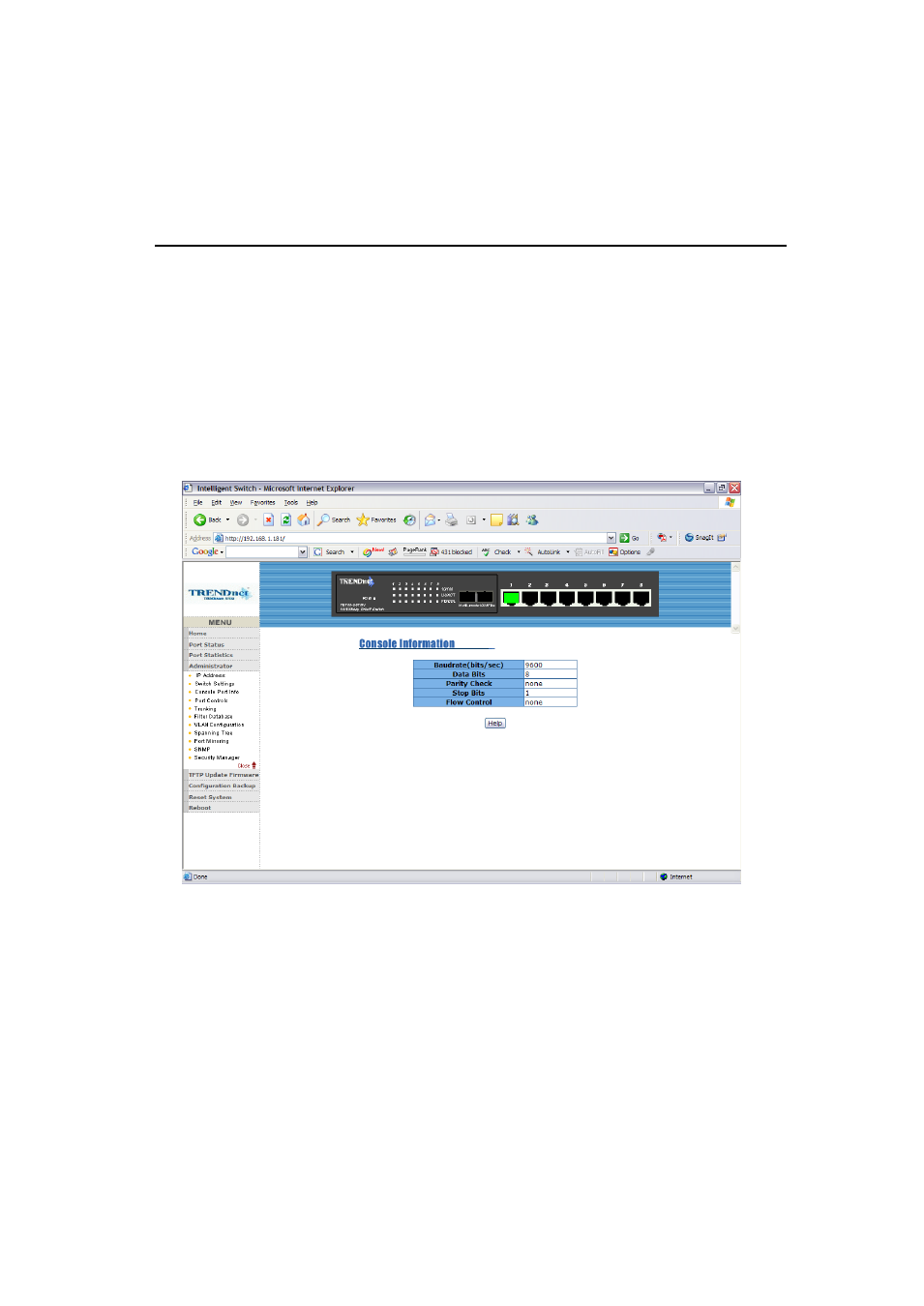

5-4-3. Console Port Information
1. Console is a standard UART interface to communicate with Serial Port.
User can use windows HyperTerminal program to link the switch.
Connect To->Configure
5-4-4. Port Controls
1. This page can Change every port status
State: User can disable or enable this port control
Auto Negotiation: User can set auto negotiation is enable or disable of
per port
Speed setting: User can set 100Mbps or 10Mbps speed (Port1~Port8)
Duplex setting: User can set full-duplex or half-duplex mode
Flows control setting: User can set flow control function is enable or
disable
Baud rate (bits/sec): 9600
Data bits: 8
Parity check: none
Stop Bits: 1
Flow control: none
