7

2.
Hardware Description

This section mainly describes the hardware of the TE100-S810Fi

series. The Switches is a compact switch ( 10 inches ) with 8x

auto-sensing 10/100Mbps Ethernet RJ-45 ports ( 8TP Management

Switch ) plus one 100Base-FX fiber port (TE100-S810Fi ).

The physical dimensions of the TE100-S810Fi are: 250mmx

132mmx 37mm ( Lx Wx H )

Front Panel

The Front Panel of the TE100-S810Fi series consist of 8x

auto-sensing 10/100Mbps Ethernet RJ-45 ports ( automatic

MDI/MDIX ), one 100Base-FX fiber port (TE100-S810Fi ) and the

LED indicators are also located on the frond panel of the switch.

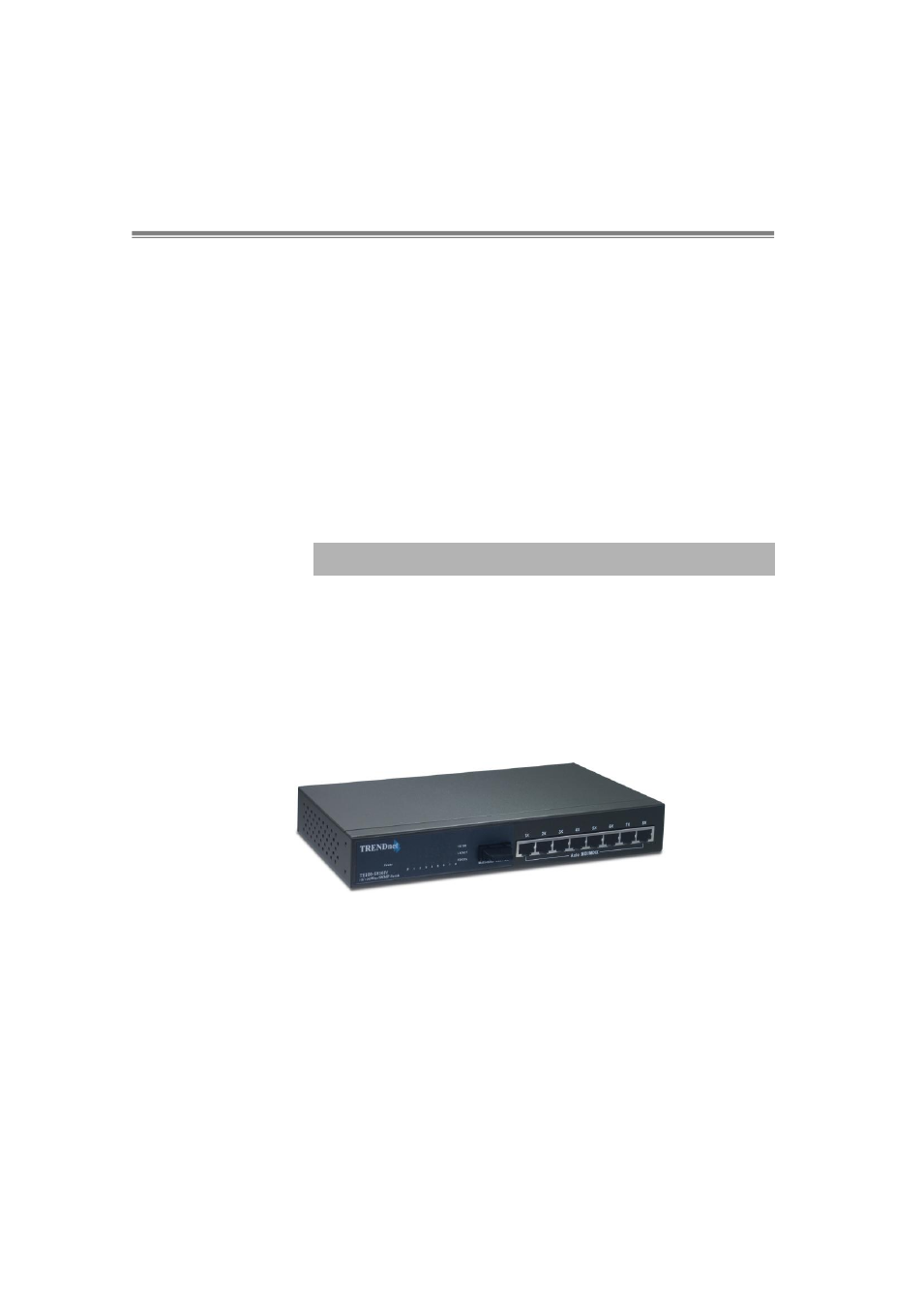

Figure 2-1. The Front Panel of the TE100-S810Fi

The Front Panel of the TE100-S810Fi is displayed as below. There

are four types of fiber connectors available for the convenience of

your connectivity. These fiber connector is SC multi-mode.
