69

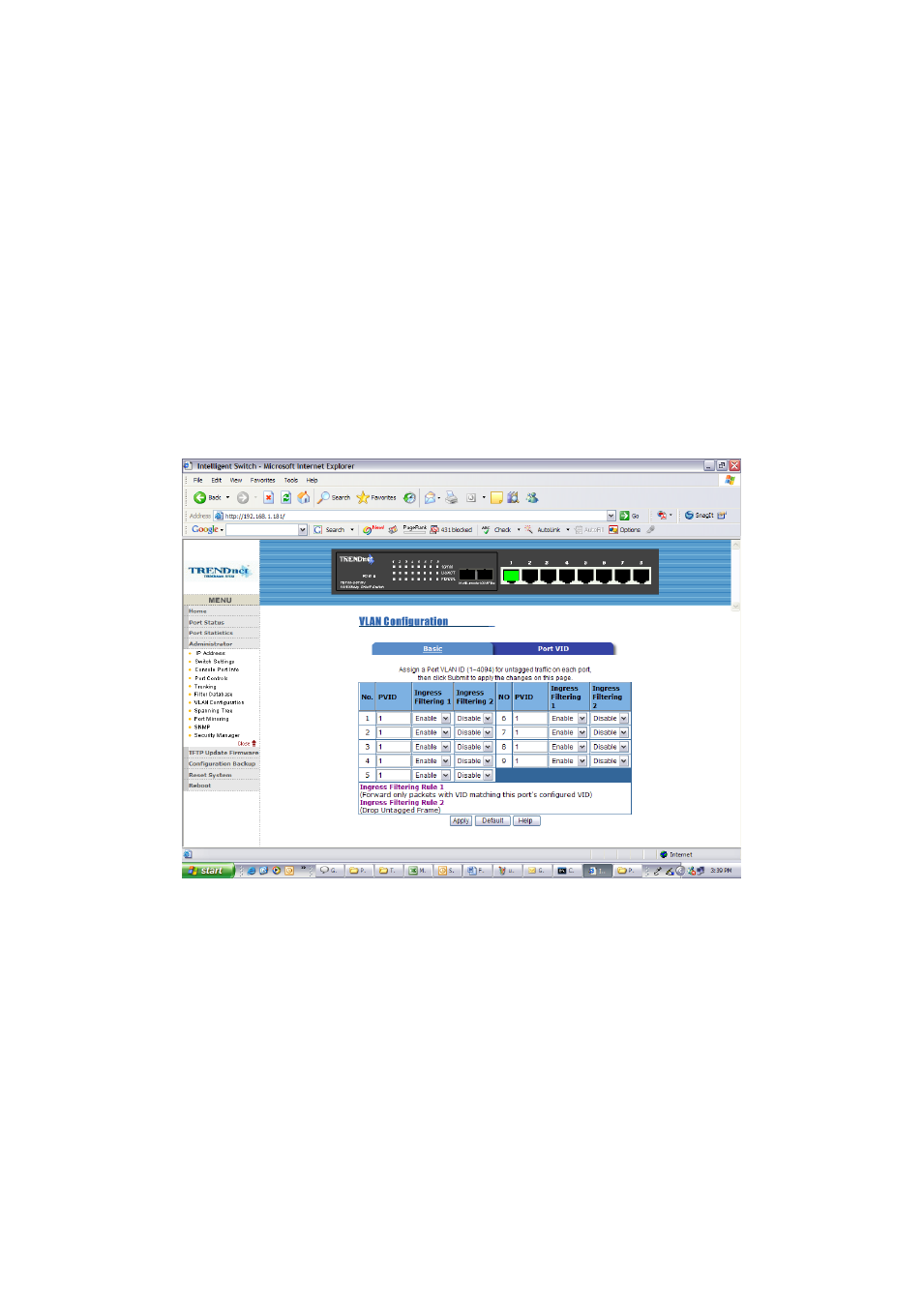

5-4-7-2. Port VID
Configure port VID settings
From the main Tag-based (IEEE 802.1Q) VLAN page, click Port VID
Settings.
Port VID (PVID)
Sets the Port VLAN ID that will be assigned to untagged traffic on a given
port. For example, if port 9's Default PVID is 100, all untagged packets on
port 9 will belong to VLAN 100. The default setting for all ports is VID 1.
This feature is useful for accommodating devices that you want to
participate in the VLAN but that don't support tagging. Only one untagged
VLAN is allowed per port.
Ingress Filtering
Ingress filtering lets frames belonging to a specific VLAN to be forwarded if
the port belongs to that VLAN. TE100-S810Fi have two ingress filtering
rule as follows:
Ingress Filtering Rule 1: Forward only packets with VID matching this
port's configured VID .
Ingress Filtering Rule 2: Drop Untagged Frame.
