33
Edit Filtering MAC address
1.Press key to modify a static Filtering address.
2.Choose the MAC address that you want to modify and then press enter.
3.Press key to modify all the items.
4.Press ESC to go back action menu line, and then select to save
all configure value.
Delete Filtering MAC address
1.Press key to delete a Filtering MAC address.
2.Choose the MAC address that you want to delete and then press enter.
3.After delete Filtering MAC address, you have to press to
complete the deleting operation.

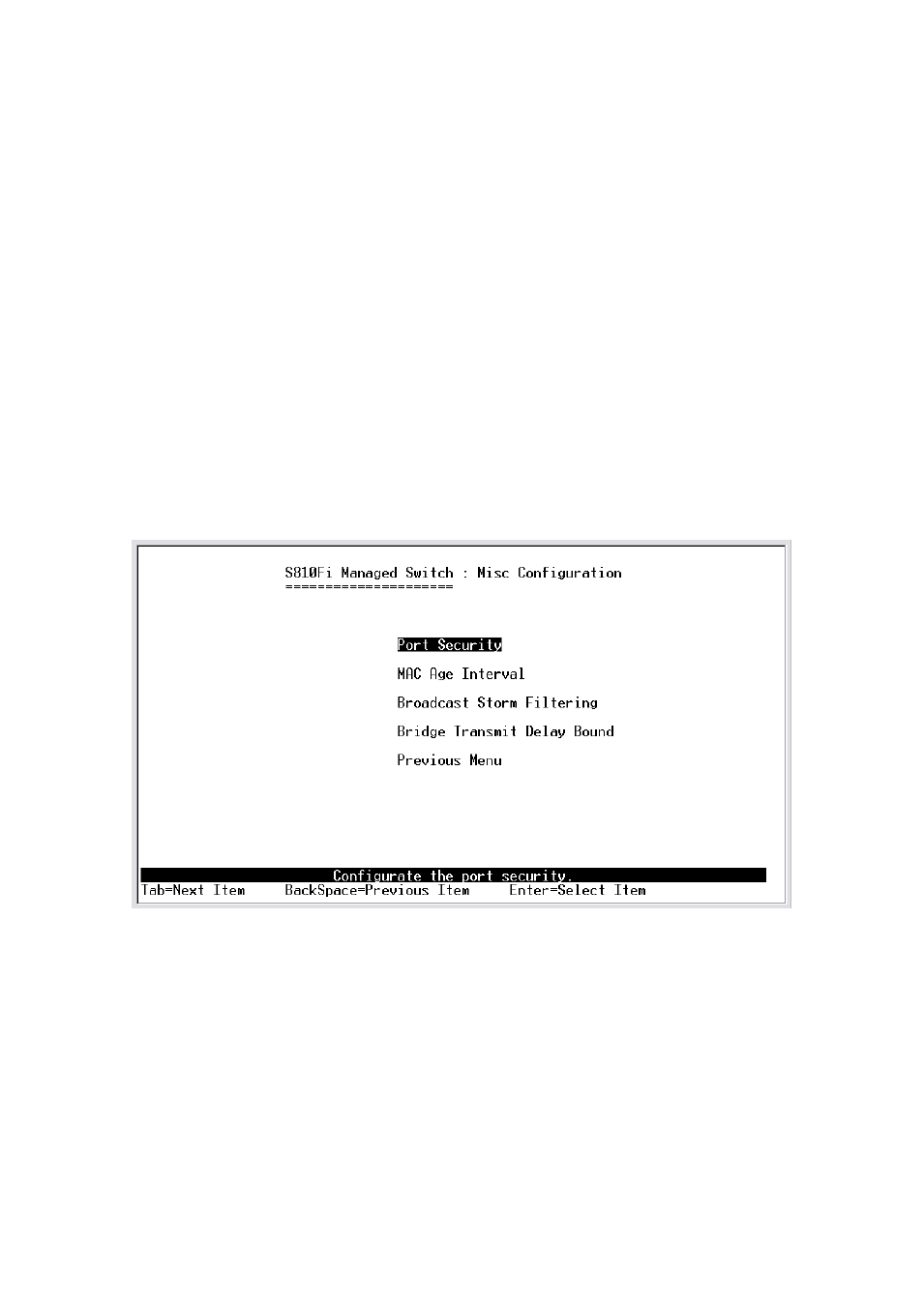

4-3-7.Misc Configuration
4-3-7-1.Port Security
A port in security mode will be “locked” without permission of address
learning. Only the incoming packets with SMAC already existing in the
address table can be forwarded normally. User can disable the port from
learning any new MAC addresses, then use the static MAC addresses
screen to define a list of MAC addresses that can use the secure port.
