19 Introduction
TV back panel connections
8 ARROWS / / / —When a menu is onscreen, these
buttons function as up/down/left/right menu navigation
buttons.
9 EXIT—Instantly closes an onscreen menu.
10 USB port—Accesses JPEG or MP3 files, or updates TV
firmware.
TV back panel connections
For explanations of cable types and connections, see “Overview of
cable types” on page 21 .

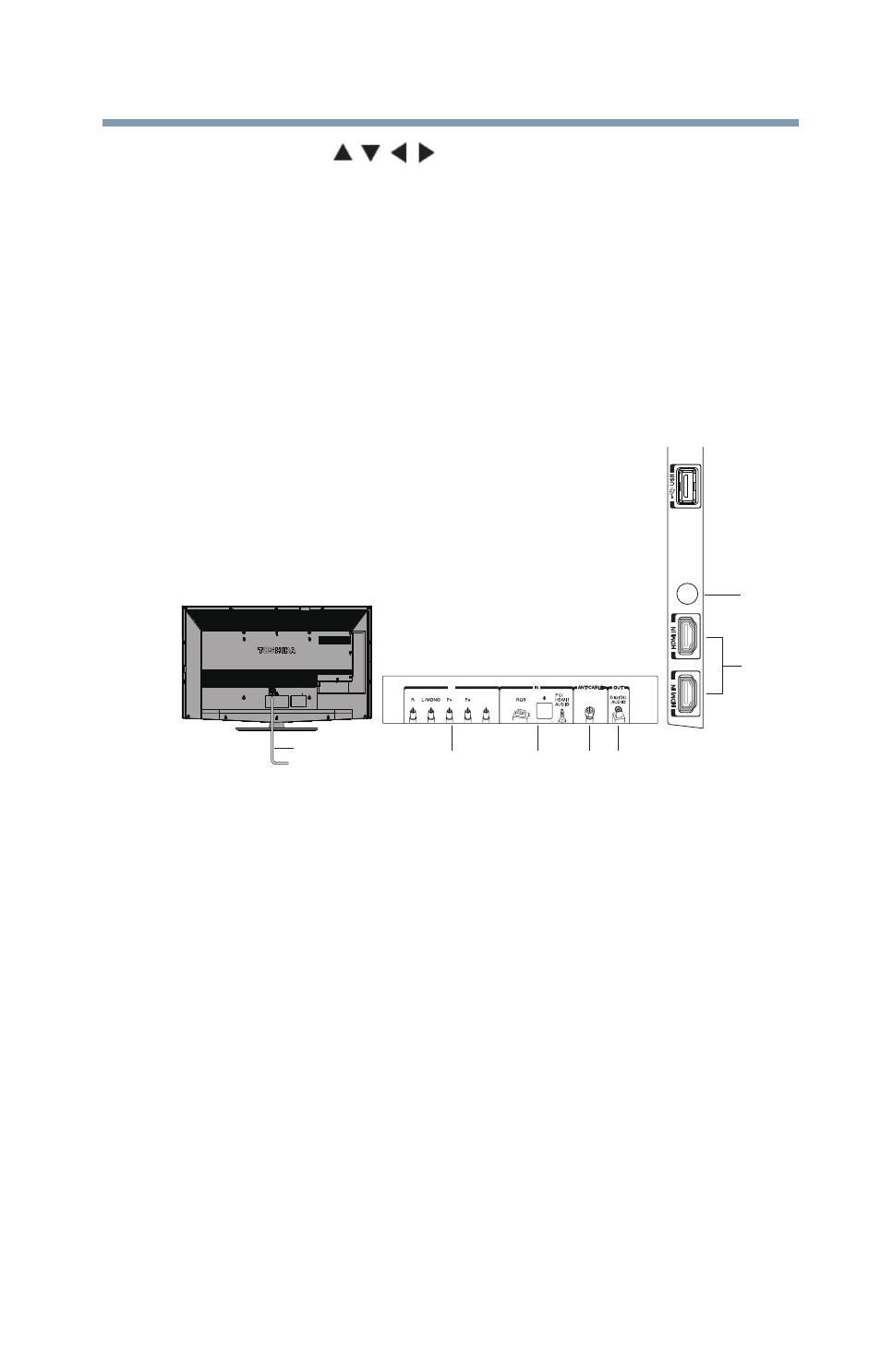

(Sample Illustration) Back panel connections
1 Digital AUDIO OUT—Optical audio output in Dolby ® Digital
or PCM (pulse-code modulation) format for connecting an
external Dolby Digital decoder, amplifier, or home theater
system with optical audio input.
2 ANT/CABLE—Antenna input that supports analog (NTSC)
and digital (ATSC) off-air antenna signals and analog and
digital cable TV (QAM) signals.
3 PC/HDMI-1 (Audio) IN—PC audio input terminal is shared
with an HDMI-1 analog audio input terminal, and its use can
be configured in the Audio Setup menu, see
“Setting the PC
Audio” on page 94 .
4 ColorStream ® HD—High-resolution component video input
and shared composite video input. See “Connecting a Blu-
ray™/DVD Player with ColorStream
®
(component video), and
a satellite receiver” on page 25 .
5 ANALOG AUDIO OUT—Analog audio outputs for
connecting an audio amplifier.
4
6
5
2 3 1
Power Cord
Y/VIDEO
VIDEO/COLOR STREAM HD
IN
2
1
ANALOG A
UDIO OUT
HGRD500010I
