35

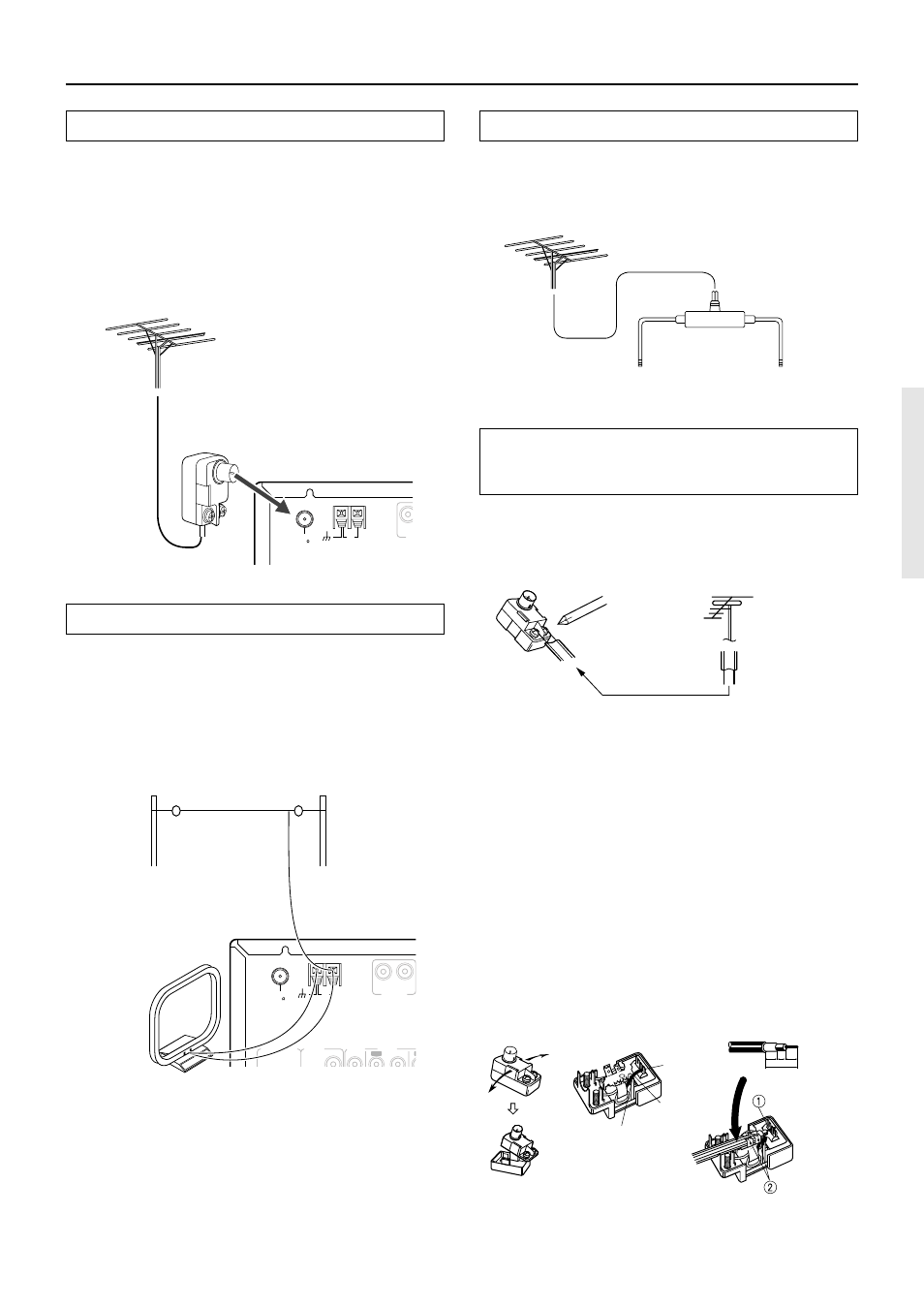

Connecting antennas
Outdoor antenna
(Indoor)
AM loop antenna
To TV (or VCR) To receiver
Connecting an FM outdoor antenna
Make sure to follow the general rules given below:
• Keep the antenna away from noise sources (neon signs, busy
roads, etc.).
• It is dangerous to put the antenna close to power lines. Keep it
well away from power lines, transformers, etc.
• To avoid the risk of lightning and electrical shock, grounding is
necessary. Follow item 14 of the “Important Safeguards” on
page 2 when you install the outdoor antenna.
Connecting an AM outdoor antenna
If reception is poor with the indoor AM antenna, stretch out the
outdoor antenna (16 feet (5 meters) or more) above a window or
outside.
• Keep the indoor AM loop antenna connected. Do not remove it.
• To avoid the risk of lightning and electrical shock, grounding is
necessary. Follow item 14 of the “Important Safeguards” on
page 2 when you install the outdoor antenna.
Note:
If you are using the TX-SR700/700E/600/600E worldwide model in
a region where AM frequencies are delineated by 10-kHz steps, be
sure to set the “AM Frequency Step” Setup setting accordingly (see
page 56).
ANTENNA
FM
75
AM
R
PH
Directional linkage
Do not use the same antenna for both FM and TV (or VCR)
reception since the FM and TV (or VCR) signals can interfere with
each other. If you must use a common FM/TV (or VCR) antenna, use
a directional linkage type splitter.
Connecting the antenna cable to the 75/300
Ω
antenna adapter (For all models other than USA &
Canadian models and European models)
Connecting the 300 Ω ribbon wire:
Loosen the screws on the adapter and wrap the wires of the ribbon
wire around these screws. Then tighten the screws down with a
screwdriver.
Connecting the coaxial cable:
1. With your fingernail, or a small screwdriver, press the
stoppers of the 75/300
Ω
antenna adapter outward
and remove the cover.
2. Remove the transformer wire A from slit B and insert
it into slit C.
3. Prepare the coaxial cable as shown in the diagram.
4. Connect the 75/300 Ω antenna adapter to the coaxial
cable.
1. Insert the end of the cable.
2. Clamp it in place with pliers.
5. Reinstall the cover.
Outdoor
antenna
300 Ω
ribbon wire
Slit B
Wire A
Slit C
1 2 3, 4
✦ ✦ ✦
✦ ✦ ✦ ✦ ✦
✦ ✦ ✦
6
mm
3
mm
6
mm
5/8"
(15mm)
ANTENNA
FM
75
AM
COAXIAL
OPTICAL 1 2
DIGITAL INPUT VIDEO 2 VIDEO 3
OPTICAL
IN OUT IN
DIGITAL
OUTPUT
L R
PHONO IN
O
