21
Connections (TX-SR700/700E)

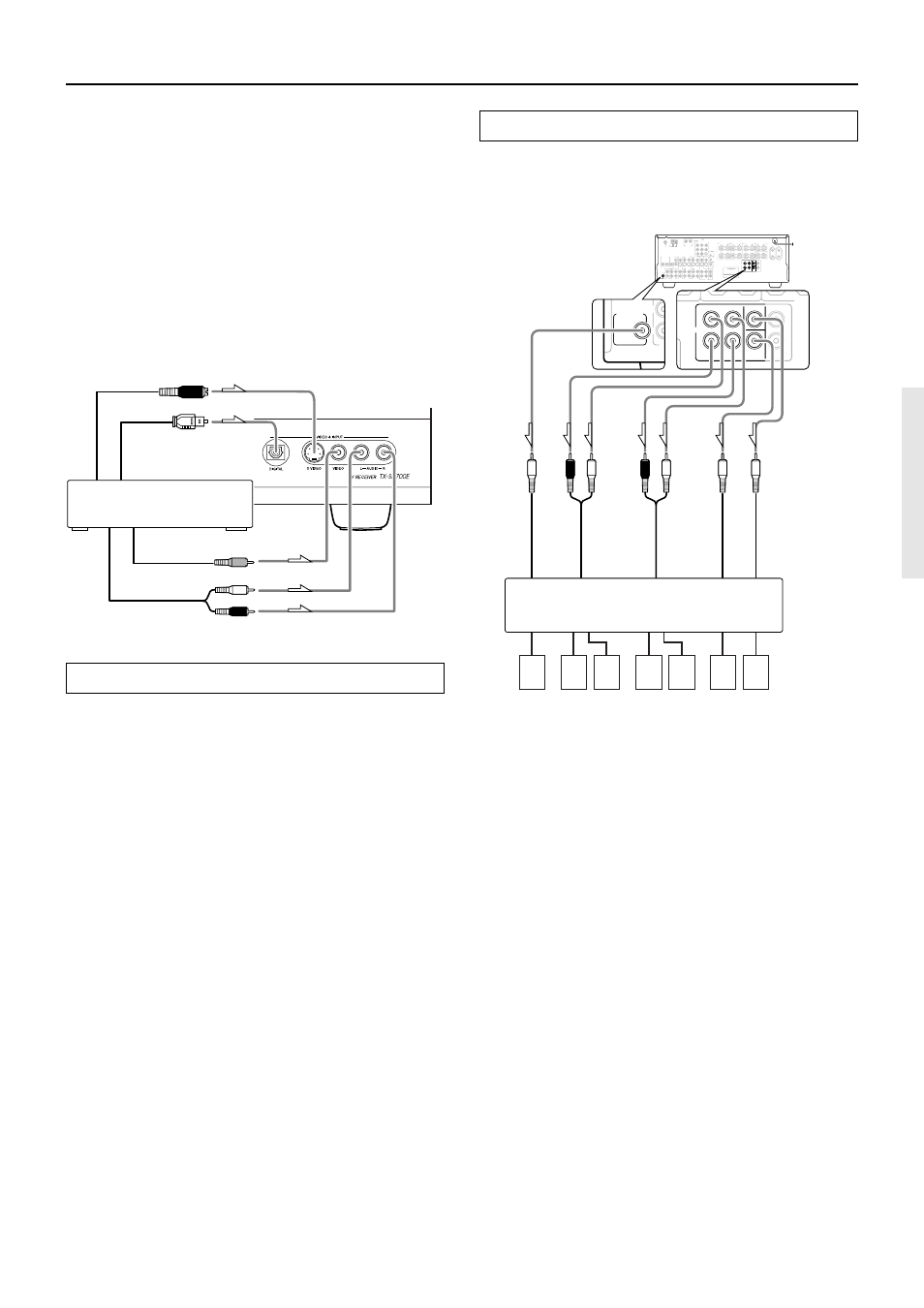

9. Connecting video camera, etc. (VIDEO 4 INPUT)
Using an RCA video cable, connect the video output jack
(composite) of the device to the VIDEO 4 VIDEO jack of the TX-
SR700/700E. Or if the device has an S video output jack, connect it
to the VIDEO 4 S VIDEO jack of the TX-SR700/700E using an S
video cable.
Using an RCA audio cable, connect the audio output jack of the
device to the VIDEO 4 AUDIO jacks of the TX-SR700/700E. Make
sure that you properly connect the left channel to the L jack and the
right channel to the R jack.
If the device has an optical digital output, connect it to the VIDEO 4
DIGITAL jack of the TX-SR700/700E.
The VIDEO 4 digital input is fixed to the OPTICAL input on the
front panel.
12V TRIGGER ZONE 2 terminal
When the TX-SR700/700E is in the ZONE 2 mode, this terminal
outputs at 12 V/100 mA.
Video output
Analog output
Right (red)
Left (white)
Digital output
(optical)
9. Video camera/Video game
(VIDEO 4 INPUT)
S Video output
L
27122974
REMOTE
CONTROL
CAUTION: SPEAKER IMPEDANCE 6 OHMS MIN. /SPEAKER ANTENNA
FM 75 AM
COAXIAL OPTICAL 1 2
IN IN IN IN FRONT SURR CENTER
SUB WOOFER VIDEO 2 VIDEO 1
OUT OUT
DIGITAL INPUT VIDEO 2 DVD MONITOR OUT
DVD TAPE CD
SUBWOOFER PRE OUT
L
R
FRONT SPEAKERS ZONE 2 SPEAKERS SURROUND SPEAKERS CENTER
SPEAKER
R
L
R
L
FRONT SURROUND CENTER ZONE 2
SURROUND BACK R
L
R
L PRE OUT
R VIDEO 3
VIDEO 1 V 12 V TRIGGER OUT ZONE 2 VIDEO 3 OPTICAL
COAXIAL
DIGITAL INPUT
IN IN IN OUT IN DIGITAL OUTPUT
IN
INPUT 1 INPUT 2 OUTPUT COMPONENT VIDEO L R
PHONO IN
PR
PB
Y
GND
OUT
OUT
S IR IN
SURROUND
BACK
SPEAKER
AC OUTLETS
SWITCHED TOTAL 100W MAX. AC 230-240 V 50 Hz
AV RECEIVER MODEL NO. TX-SR700E
L
CD
SUBWOOFER
PRE OUT
R
FRONT SURROUND CENTER ZONE 2
SURROUND
BACK
R
L
R
L
PRE OUT
SURROU
BACK
SPEAKE
Fr
ont
Surr
ound
Surr
ound bac
k
Center Subw
oof
er
R (red) L (white) R (red) L (white)
7 6 5 4 3 2 1
PRE OUT
These jacks are for connecting an auxiliary power amplifier.
You can use an auxiliary power amplifiers to listen at louder
volumes than you can with the TX-SR700/700E alone. When using a
power amplifier, connect each speaker to the power amplifier.
1. Subwoofer
2. Front right speaker
3. Front left speaker
4. Surround right speaker
5. Surround left speaker
6. Surround back speaker
7. Center speaker
Power amplifier
