28

Connections (TX-SR600/600E)

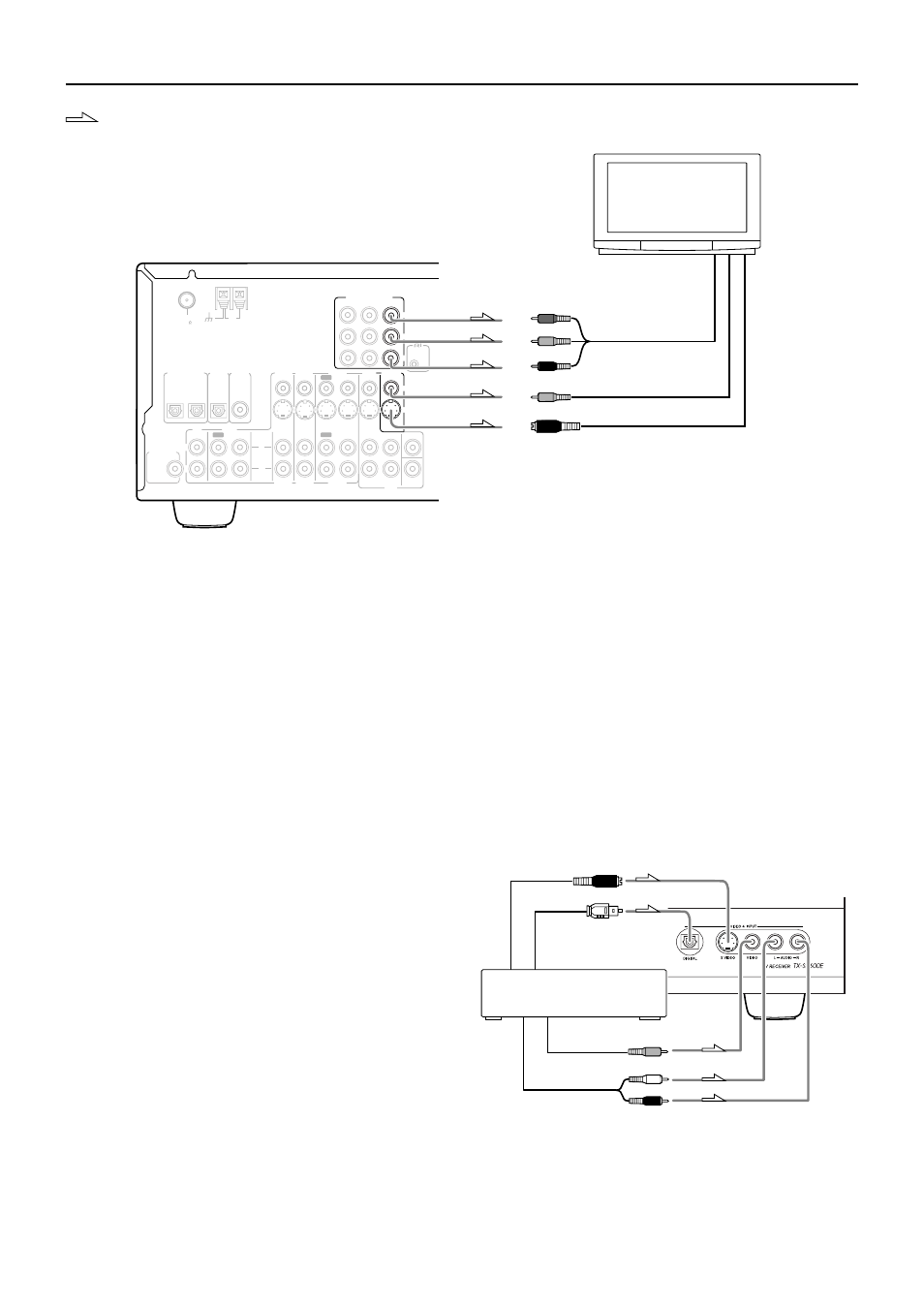

6. Connecting a television monitor or projector (MONITOR

OUT)

Using an RCA video cable, connect the video input jack (composite)
of the device to the MONITOR OUT VIDEO jack of the TX-SR600/
600E. Or if the device has an S video input jack, connect it to the
MONITOR OUT S VIDEO jack of the TX-SR600/600E using an S
video cable. Or if the device has component video inputs, connect
them to the bank of COMPONENT VIDEO OUTPUT jacks on the
TX-SR600/600E.

Note:
Note that the Setup Menu will only be displayed on the monitor
connected to MONITOR OUT and not those connected to the
COMPONENT VIDEO OUTPUT jacks.

Video output

Analog output

Right (red)

Left (white)

Digital output
(optical)

7. Video camera/Video game
(VIDEO 4 INPUT)

S Video output

7. Connecting video camera, etc. (VIDEO 4 INPUT)

Using an RCA video cable, connect the video output jack
(composite) of the device to the VIDEO 4 VIDEO jack of the TX-
SR600/600E. Or if the device has an S video output jack, connect it
to the VIDEO 4 S VIDEO jack of the TX-SR600/600E using an S
video cable.

Using an RCA audio cable, connect the audio output jack of the
device to the VIDEO 4 AUDIO jacks of the TX-SR600/600E. Make
sure that you properly connect the left channel to the L jack and the
right channel to the R jack.

If the device has an optical digital output, connect it to the VIDEO 4
DIGITAL jack of the TX-SR600/600E.

The VIDEO 4 digital input is fixed to the OPTICAL input on the
front panel.

L

REMOTE

CONTROL

ANTENNA

FM

75

AM

COAXIAL

OPTICAL

1

2

IN

IN

IN

IN

FRONT

SURR

CENTER

SUB

WOOFER

VIDEO 2

VIDEO 1

OUT

DIGITAL INPUT

DVD

MONITOR

OUT

DVD

TAPE

CD

SUBWOOFER

PRE OUT

L

R

R

VIDEO 3

VIDEO 2

VIDEO 3

VIDEO 1

VIDEO

OPTICAL

IN

IN

IN

IN

DIGITAL

OUTPUT

IN

INPUT 1

INPUT 2

OUTPUT

COMPONENT VIDEO

P

R

P

B

Y

OUT

OUT

DIGITAL

INPUT

L

R

S VIDEO

6. TV monitor or projector

(MONITOR OUT)

Component video input

S Video input

Video input

P

R

P

B

Y

: Signal flow

Note:
When you connect a monitor to the MONITOR OUT S
VIDEO jack, set the “OSD Output” setting of the “OSD
Setup” menu to “S Video” to display the OSD Setup
Menu on the monitor. For more details on how to change
the setting, see “When the menu is not displayed on the
monitor” on page 36.
