20
Connections (TX-SR700/700E)
7. Connecting a DVD recorder or other digital video recording
device (VIDEO 2)
Using RCA video cables, connect the video output jack (composite)
of the device to the VIDEO 2 VIDEO IN jack of the TX-SR700/
700E and connect the video input jack of the device to the VIDEO 2
VIDEO OUT jack of the TX-SR700/700E. Or if the device has S
video input and output jacks, using S video cables, connect the S
video output jack of the device to the VIDEO 2 S VIDEO IN jack of
the TX-SR700/700E and connect the video input jack of the device
to the VIDEO 2 S VIDEO OUT jack of the TX-SR700/700E. Or if
the device has component video outputs, connect them to the
COMPONENT VIDEO INPUT 1 or 2 jacks on the TX-SR700/
700E.
With the initial settings of the TX-SR700/700E, the VIDEO 2
input source is set for the COMPONENT VIDEO INPUT 2
jacks.
If you connect the device to the COMPONENT VIDEO INPUT 1
jacks, this must be changed at “Input Setup”
→ “Component Video”
(see page 54).
Using RCA audio cables, connect the audio output jacks of the
device to the VIDEO 2 IN audio jacks of the TX-SR700/700E and
connect the audio input jacks of the device to the VIDEO 2 OUT
audio jacks of the TX-SR700/700E. Make sure that you properly
connect the left channels to the L jacks and the right channels to the
R jacks.
If the device has a digital output, connect it to either the DIGITAL
INPUT COAXIAL jack or the DIGITAL INPUT OPTICAL jack of
the TX-SR700/700E depending on the type of connector on the
device.
With the initial settings of the TX-SR700/700E, nothing is
allocated as the digital input source for VIDEO 2 (----).
If you connect the digital audio output, be sure to make the appropriate
changes at “Input Setup”
→ “Digital Input” (see page 53).
If the device has a digital input, connect it to the DIGITAL OUTPUT
(OPTICAL or COAXIAL) jack of the TX-SR700/700E for digital
recording of the signal from the digital input of the TX-SR700/
700E.
Note:
The output from the DIGITAL OUTPUT jack of the TX-SR700/
700E is only the digital signal input to the DIGITAL INPUT jack.
8. Connecting a television monitor or projector (MONITOR
OUT)
The TX-SR700/700E is equipped with a simple Y/C separate circuit
and simple Y/C mixed circuit. Since both the signal from the S
VIDEO and VIDEO inputs are output to the MONITOR OUT S
VIDEO output, if the television or projector is equipped with an S
video input, it is unnecessary to connect the video connectors. If it is
equipped with only a video input, connect it to the MONITOR OUT
VIDEO output.
Using an RCA video cable, connect the video input jack (composite)
of the device to the MONITOR OUT VIDEO jack of the TX-SR700/
700E. Or if the device has an S video input jack, connect it to the
MONITOR OUT S VIDEO jack of the TX-SR700/700E using an S
video cable. Or if the device has component video inputs, connect
them to the bank of COMPONENT VIDEO OUTPUT jacks on the
TX-SR700/700E.
Note:
Note that the Setup Menu will only be displayed on the monitor
connected to MONITOR OUT and not those connected to the
COMPONENT VIDEO OUTPUT jacks.
L
REMOT
CONTRO
ANTENNA
FM
75
AM
COAXIAL
OPTICAL
1
2
IN
IN
IN
IN
FRONT
SURR
CENTER
SUB
WOOFER
VIDEO 2
VIDEO 1
OUT
OUT
DIGITAL INPUT
VIDEO 2
DVD
MONITOR
OUT
DVD
TAPE
CD
SUBWOOFER
PRE OUT
L
R
R
VIDEO 3
VIDEO 1
V
ZONE
VIDEO 3
OPTICAL
COAXIAL
DIGITAL
INPUT
IN
IN
IN
OUT
IN
DIGITAL
OUTPUT
IN
INPUT 1
INPUT 2
OUTPUT
COMPONENT VIDEO
L
R
PHONO IN
P
R
P
B
Y
GND
OUT
OUT
S

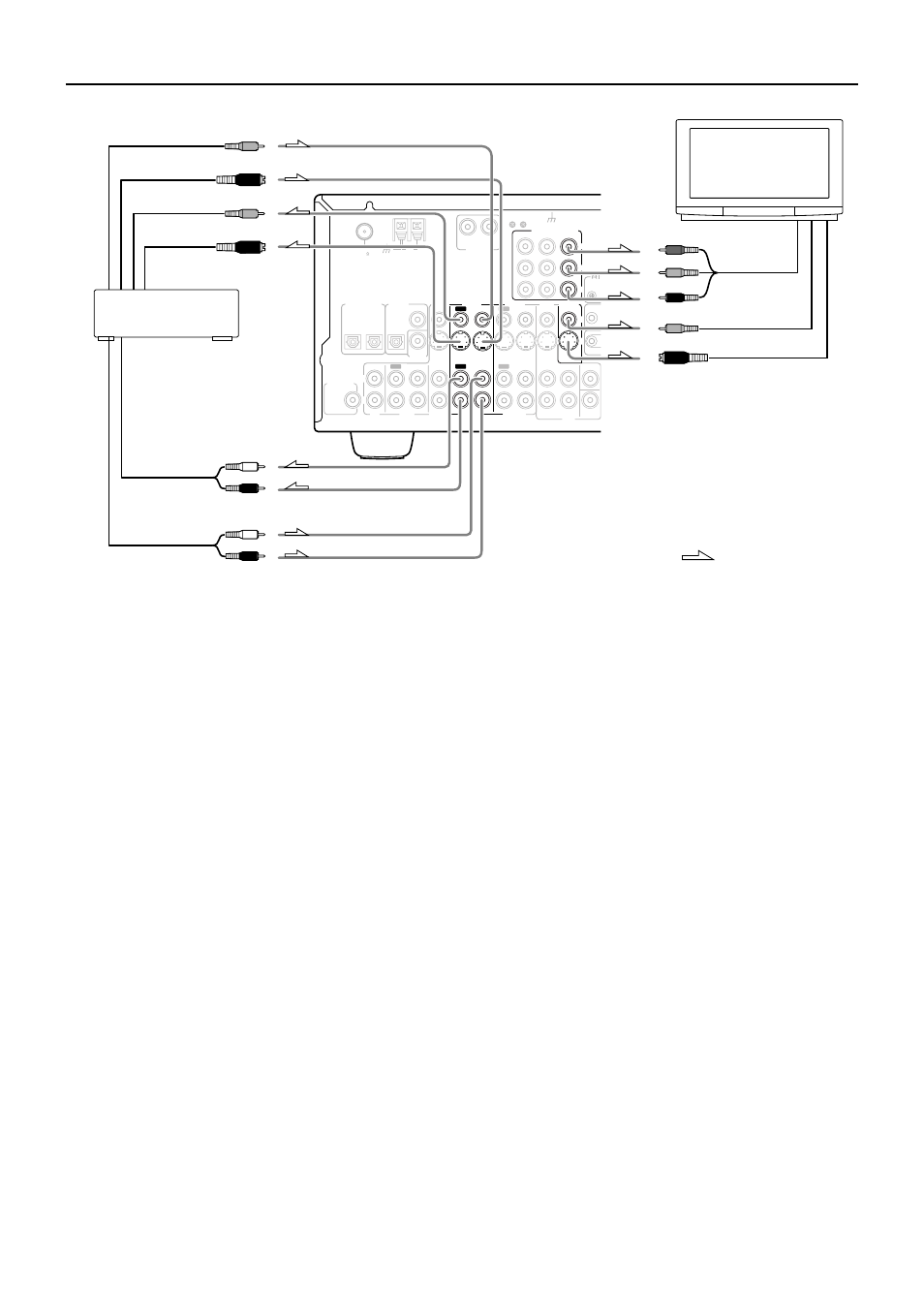

8. TV monitor or projector
(MONITOR OUT)
Component video
input
S Video input
Video input
P
R
P
B
Y
7. DVD recorder, other digital
video recording device
(VIDEO 2)
R (red)
L (white)
R (red)
L (white)
Video input
S Video input
Video output
S Video output
Analog audio input
Analog audio output
: Signal flow
