Page 31

SPEAKER B (TX-SR600/600E only)

1. Strip away approx. 3/8 inch (10 mm)

of the wire insulation.

2. Twist the wire ends tightly together.

3. Press the lever to open the terminal.

4. Insert the exposed wire end.

5. Release the lever to close the

terminal. Leave some of the exposed
wire showing outside the terminal.

Connecting a subwoofer

Use the SUBWOOFER PRE OUT jack to connect a subwoofer with
a built-in power amplifier. If your subwoofer does not have a built-in
amplifier, connect an amplifier to the SUBWOOFER PRE OUT jack
and the subwoofer to the amplifier.

Connecting to the SPEAKERS B terminals
(TX-SR600/600E only)

If you require an additional set of front speakers (left and right), such
as for use in another room, connect them to the FRONT SPEAKERS
B inputs.

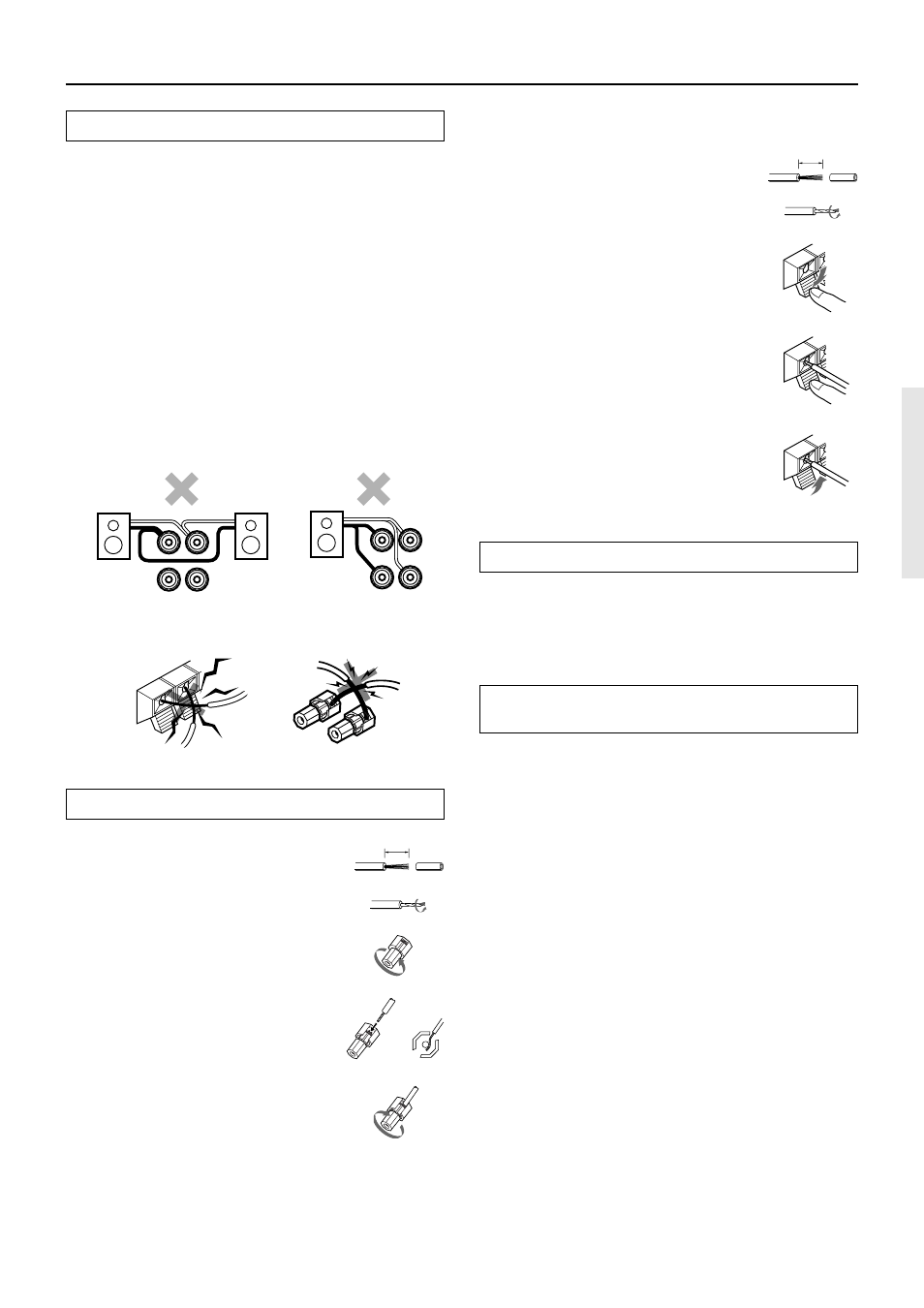

Connecting speakers

After determining the layout of your speaker system, it is now
necessary to connect the speakers correctly to your TX-SR700/
700E/600/600E.

Caution:

• Be sure to connect the positive (+) and negative (–) cables for the

speakers properly. If they are mixed up, the left and right signals
will be reversed and the audio will sound unnatural.

• Do not connect more than one speaker cable to one speaker

terminal. Doing so may damage the TX-SR700/700E/600/600E.

• When you listen to surround audio or select Multichannel, be

sure to turn on SPEAKERS A.

• Connect only speakers with an impedance between 6 and 16

Ω to the TX-SR700/700E/600/600E. Connecting speakers
with an impedance lower than 6

Ω may damage the

amplifier.

• Even if you are using only one speaker or listening to monaural

(mono) sound, never connect a single speaker in parallel to both
the right and left-channel terminals.

• To prevent damage to circuitry, never short-circuit the positive

(+) and negative (–) speaker wires.

Connecting the speaker cable

1. Strip away approx. 5/8 inch (15 mm)

of the wire insulation.

2. Twist the wire ends tightly together.

3. Unscrew the speaker terminal cap.

4. Insert the exposed wire end.

5. Screw down the speaker terminal

cap.

SPEAKERS

–

SPEAKERS

–

NO!

5/8"

(15mm)

3/8"

(10mm)
