27
Connections (TX-SR600/600E)
4. Connecting a video cassette recorder (VIDEO 1)
Using RCA video cables, connect the video output jack (composite)
of the video cassette recorder to the VIDEO 1 VIDEO IN jack of the
TX-SR600/600E and connect the video input jack of the video
cassette recorder to the VIDEO 1 VIDEO OUT jack of the TX-
SR600/600E. Or if the video cassette recorder has S video input and
output jacks, using S video cables, connect the S video output jack of
the video cassette recorder to the VIDEO 1 S VIDEO IN jack of the
TX-SR600/600E and connect the video input jack of the video
cassette redorder to the VIDEO 1 S VIDEO OUT jack of the TX-
SR600/600E. Or if the video cassette recorder has component video
outputs, connect them to the COMPONENT VIDEO INPUT 1 or 2
jacks on the TX-SR600/600E.
With the initial settings of the TX-SR600/600E, the VIDEO 1
input source is set for the COMPONENT VIDEO INPUT 2
jacks.
If you connect the video cassette recorder to the COMPONENT
VIDEO INPUT 1 jacks, this must be changed at “Input Setup”
→
“Component Video” (see page 54).
Using RCA audio cables, connect the audio output jacks of the video
cassette recorder to the VIDEO 1 IN audio jacks of the TX-SR600/
600E and connect the audio input jacks of the video cassette recorder
to the VIDEO 1 OUT audio jacks of the TX-SR600/600E. Make sure
that you properly connect the left channels to the L jacks and the
right channels to the R jacks.
With the initial settings of the TX-SR600/600E, nothing is
allocated as the digital input source for VIDEO 1 (----).
If you connect the digital audio output, be sure to make the appropriate
changes at “Input Setup”
→ “Digital Input” (see page 53).
5. Connecting a satellite tuner, television, or settop box
(VIDEO 2 or 3)
Using an RCA video cable, connect the video output jack
(composite) of the device to the VIDEO 2 (or 3) VIDEO IN jack of
the TX-SR600/600E. Or if the device has an S video output jack,
connect it to the VIDEO 2 (or 3) S VIDEO IN jack of the TX-SR600/
600E using an S video cable. Or if the device has component video
outputs, connect them to the COMPONENT VIDEO INPUT 1 or 2
jacks on the TX-SR600/600E.
With the initial settings of the TX-SR600/600E, the VIDEO 2
and 3 input sources are set for the COMPONENT VIDEO
INPUT 2 jacks.
If you connect the device to the COMPONENT VIDEO INPUT 1
jacks, this must be changed at “Input Setup”
→ “Component Video”
(see page 54).
Using an RCA audio cable, connect the audio output jack of the
device to the VIDEO 2 (or 3) IN audio jacks of the TX-SR600/600E.
Make sure that you properly connect the left channel to the L jack
and the right channel to the R jack.
If the device has a digital output, connect it to either the DIGITAL
INPUT COAXIAL jack or the DIGITAL INPUT OPTICAL jack of
the TX-SR600/600E depending on the type of connector on the
device.
With the initial settings of the TX-SR600/600E, the VIDEO 3
input source is set for digital input at the OPTICAL 2 jack (OPT
2).
If the digital connection is made at a different jack, this must be
changed at Input Setup
→ Digital Input (see page 53).
With the initial settings of the TX-SR600/600E, nothing is
allocated as the digital input source for VIDEO 2 (----).
If you connect the digital audio output, be sure to make the appropriate
changes at “Input Setup”
→ “Digital Input” (see page 53).

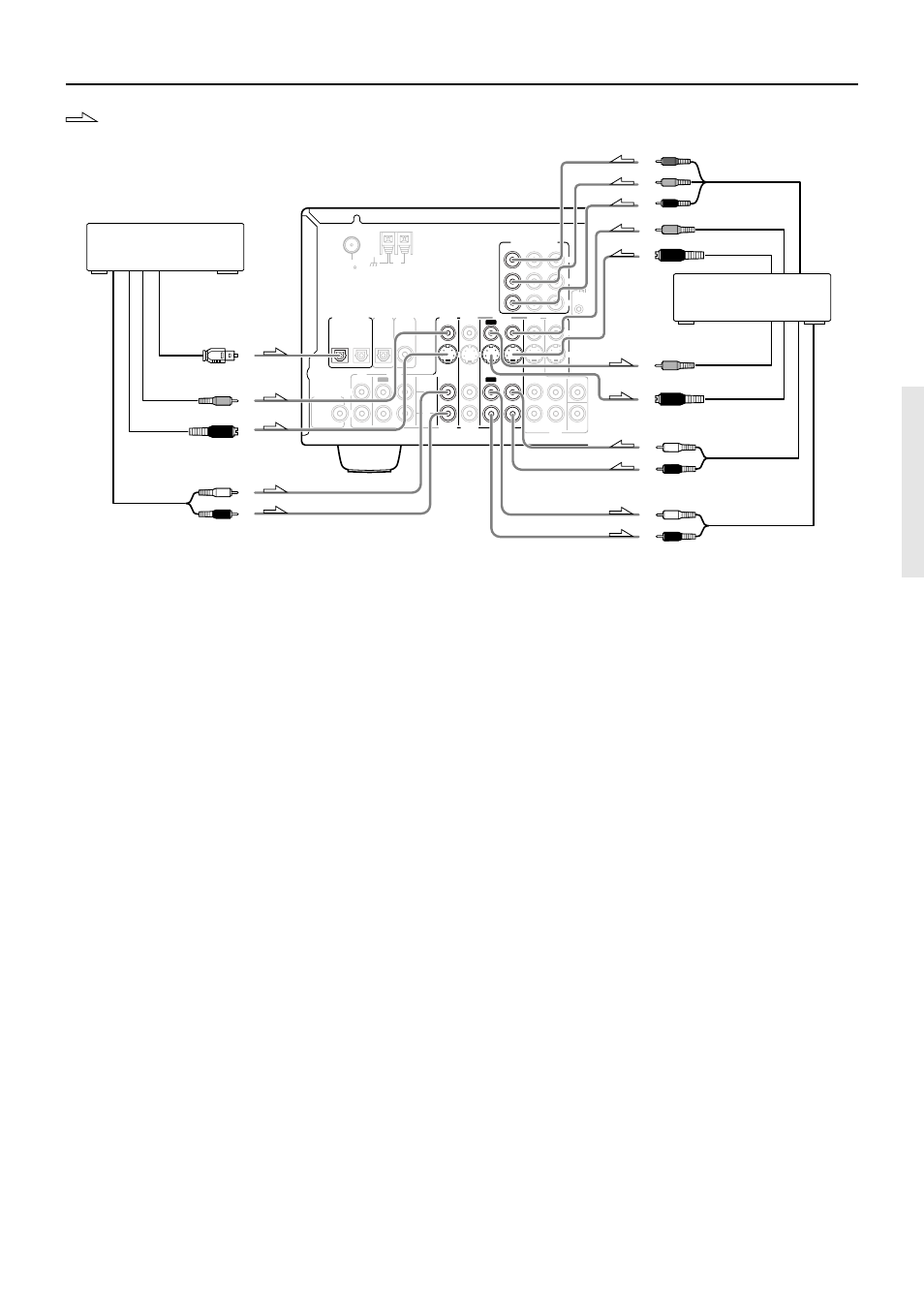

: Signal flow
L
REMOT
CONTRO
ANTENNA
FM
75
AM
COAXIAL OPTICAL 1 2
IN IN IN IN FRONT SURR CENTER
SUB
WOOFER VIDEO 2 VIDEO 1
OUT
DVD MONITOR
OUT
DVD
TAPE CD
SUBWOOFER
PRE OUT
L
R
R
VIDEO 3
VIDEO 2 VIDEO 3 VIDEO 1
VIDEO
OPTICAL
IN IN IN IN
DIGITAL
OUTPUT
IN
INPUT 1 INPUT 2 OUTPUT
COMPONENT VIDEO
P R
P B
Y
OUT
OUT
DIGITAL
INPUT
L
R
S VIDEO
DIGITAL INPUT
5. Satellite tuner or television
(VIDEO 2/3)
4. VCR (VIDEO 1)
Component video output
P R
P B
Y
Video output
S video output
Video input
S video input Video output
S Video output
Analog audio input
Analog audio output
L (white)
R (red)
L (white)
R (red) L (white)
R (red)
Analog audio output
Digital audio output
(optical)
