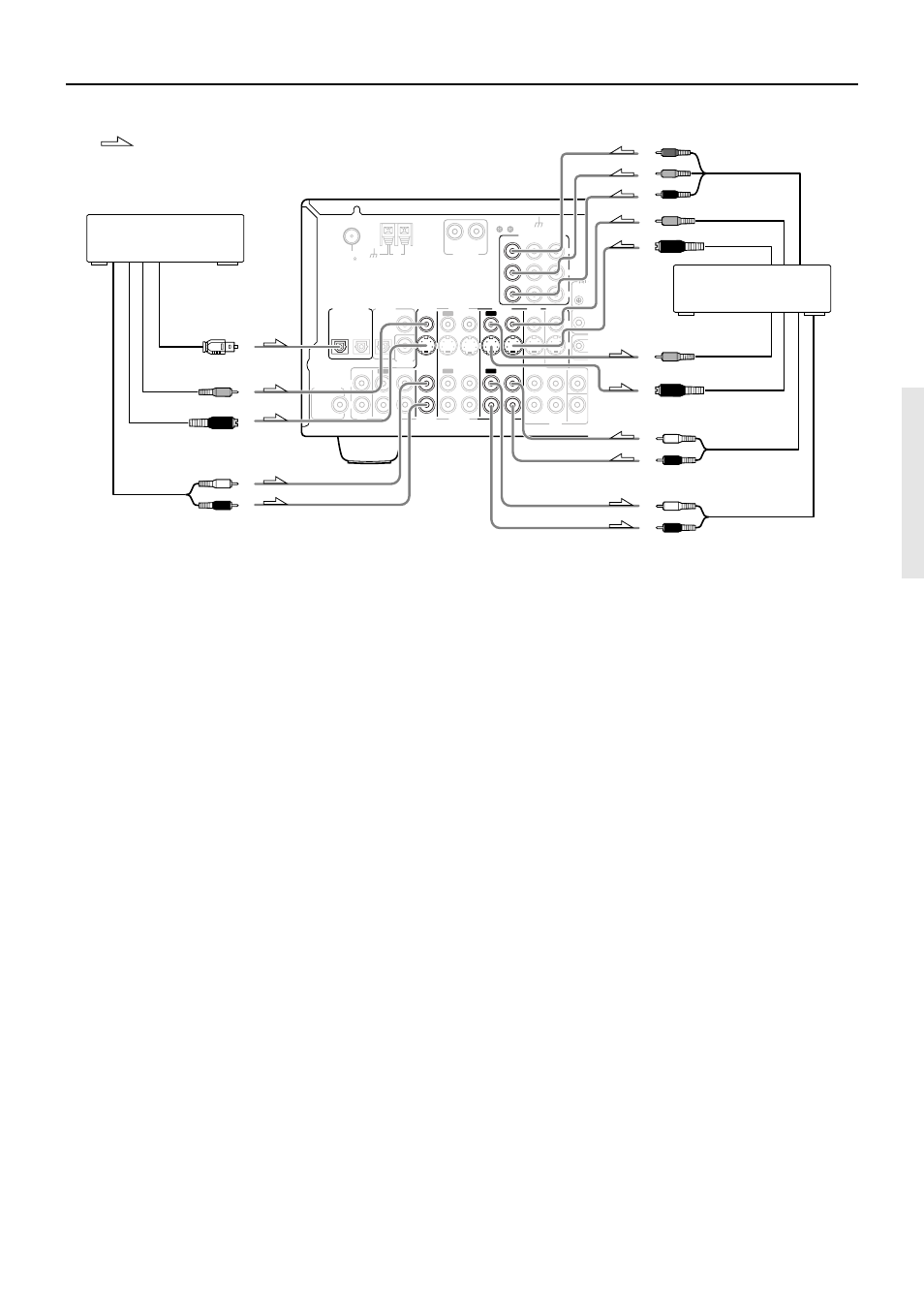

Connections (TX-SR700/700E)
5. Connecting a video cassette recorder (VIDEO 1)
Using RCA video cables, connect the video output jack (composite)
of the video cassette recorder to the VIDEO 1 VIDEO IN jack of the
TX-SR700/700E and connect the video input jack of the video
cassette recorder to the VIDEO 1 VIDEO OUT jack of the TX-
SR700/700E. Or if the video cassette recorder has S video input and
output jacks, using S video cables, connect the S video output jack of
the video cassette recorder to the VIDEO 1 S VIDEO IN jack of the
TX-SR700/700E and connect the video input jack of the video
cassette recorder to the VIDEO 1 S VIDEO OUT jack of the TX-
SR700/700E. Or if the video cassette recorder has component video
outputs, connect them to the COMPONENT VIDEO INPUT 1 or 2
jacks on the TX-SR700/700E.
With the initial settings of the TX-SR700/700E, the VIDEO 1
input source is set for the COMPONENT VIDEO INPUT 2
jacks.
If you connect the video cassette recorder to the COMPONENT
VIDEO INPUT 1 jacks, this must be changed at “Input Setup”
→
“Component Video” (see page 54).
Using RCA audio cables, connect the audio output jacks of the video
cassette recorder to the VIDEO 1 IN audio jacks of the TX-SR700/
700E and connect the audio input jacks of the video cassette recorder
to the VIDEO 1 OUT audio jacks of the TX-SR700/700E. Make sure
that you properly connect the left channels to the L jacks and the
right channels to the R jacks.
With the initial settings of the TX-SR700/700E, nothing is
allocated as the digital input source for VIDEO 1 (----).
If you connect the digital audio output, be sure to make the appropriate
changes at “Input Setup”
→ “Digital Input” (see page 53).
6. Connecting a satellite tuner, television, or settop box
(VIDEO 3)
Using an RCA video cable, connect the video output jack
(composite) of the device to the VIDEO 3 VIDEO IN jack of the TX-
SR700/700E. Or if the device has an S video output jack, connect it
to the VIDEO 3 S VIDEO IN jack of the TX-SR700/700E using an S
video cable. Or if the device has component video outputs, connect
them to the COMPONENT VIDEO INPUT 1 or 2 jacks on the TX-
SR700/700E.
With the initial settings of the TX-SR700/700E, the VIDEO 3
input source is set for the COMPONENT VIDEO INPUT 2
jacks.
If you connect the device to the COMPONENT VIDEO INPUT 1
jacks, this must be changed at “Input Setup”
→ “Component Video”
(see page 54).
Using an RCA audio cable, connect the audio output jack of the
device to the VIDEO 3 IN audio jacks of the TX-SR700/700E. Make
sure that you properly connect the left channel to the L jack and the
right channel to the R jack.
If the device has a digital output, connect it to either the DIGITAL
INPUT COAXIAL jack or the DIGITAL INPUT OPTICAL jack of
the TX-SR700/700E depending on the type of connector on the
device.
With the initial settings of the TX-SR700/700E, the VIDEO 3 input
source is set for digital input at the OPTICAL 2 jack (OPT 2).
If the digital connection is made at a different jack, this must be
changed at “Input Setup”
→ “Digital Input” (see page 53).
