37
Connecting the AV Receiver/AV Amplifier—Continued
■ RI Dock with video
Connect your RI Dock’s analog audio output jacks
and S-Video output jack to the AV receiver/AV
amplifier’s GAME/TV IN L/R jacks and GAME/TV
IN S jack. (The example shown below is for connec-
tion with the DS-A1.)
■ RI Dock without video
Connect your RI Dock’s analog audio output jacks to
the AV receiver/AV amplifier’s TAPE IN L/R jacks.

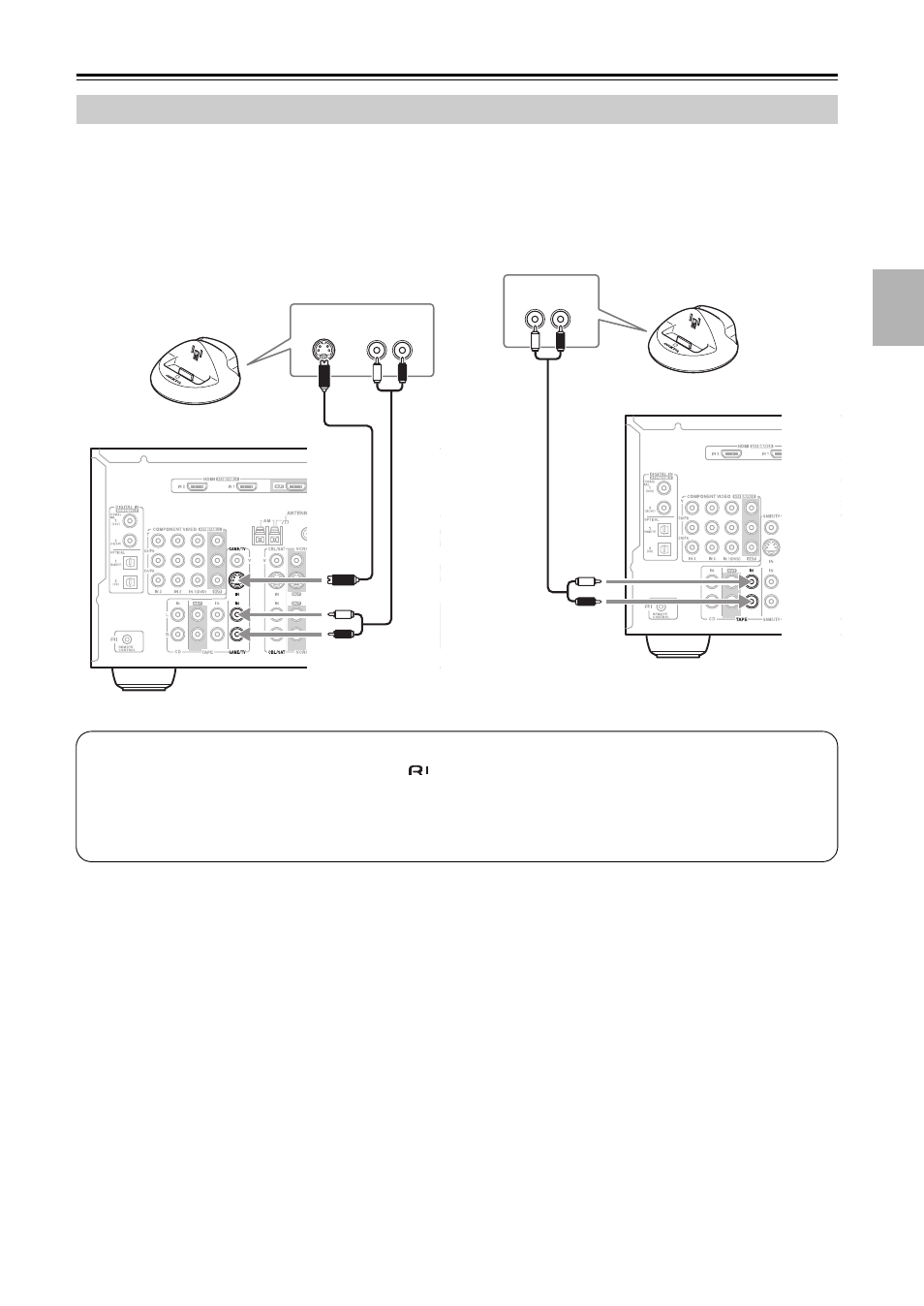

Connecting an RI Dock
AUDIO
OUT
L R
S VIDEO
OUT
AUDIO
OUT
L R
Notes:
• Connect the Remote Interactive Dock with an
cable (see page 39).
• Set the Remote Interactive Dock’s RI MODE switch to HDD or HDD/DOCK.
• Set the AV receiver/AV amplifier’s input display to DOCK (see page 51).
• Refer to the Remote Interactive Dock’s instruction manual.
