33
Connecting the AV Receiver/AV Amplifier—Continued

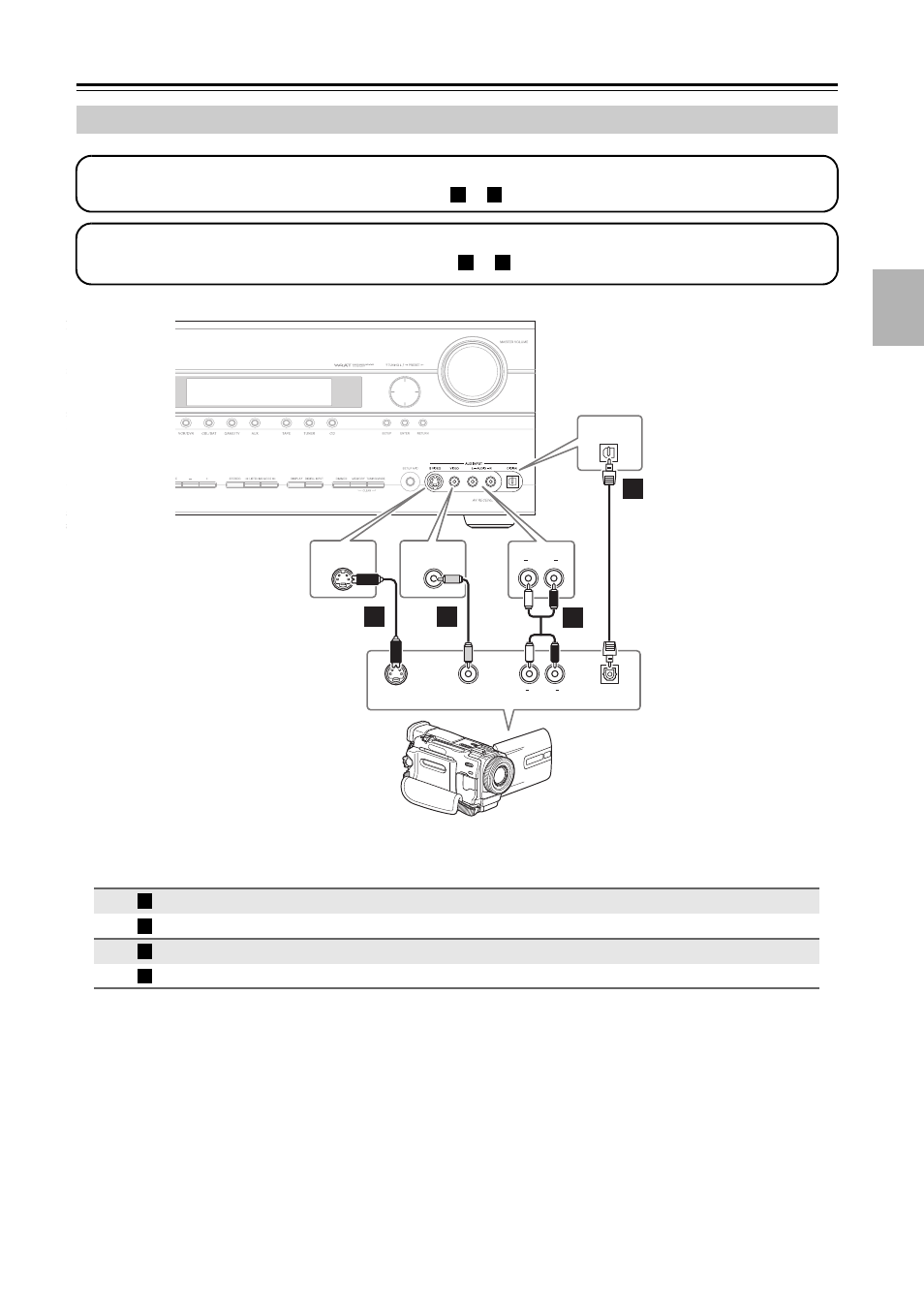

Connecting a Camcorder or Other Device
Connection AV receiver/AV amplifier Signal flow Camcorder or console
AUX INPUT S VIDEO  S-Video output
AUX INPUT VIDEO  Composite video output
AUX INPUT L/R  Analog audio L/R output
AUX INPUT DIGITAL  Digital optical output
Step 1: Video Connection
Choose a video connection that matches the camcorder (
or ), and then make the connection. A B
Step 2: Audio Connection
Choose an audio connection that matches the camcorder (
or ), and then make the connection. a b
DIGITAL
S VIDEO
OPTICAL
OUT
AUDIO VIDEO L R
S VIDEO
OUT
AUDIO
OUT
VIDEO
OUT
L R
AUX INPUT AUX INPUT AUX INPUT
AUX INPUT
A a
b
B
Camcorder, etc.
A
B
a
b
