Connecting the AV Receiver/AV Amplifier—Continued
By connecting both the audio and video outputs of your DVD player and other AV components to the AV receiver/AV
amplifier, you can select both the audio and video simultaneously simply by selecting the appropriate input source on
the AV receiver/AV amplifier.
The AV receiver/AV amplifier supports several connection formats for compatibility with a wide range of AV equip-
ment. The format you choose will depend on the formats supported by your other components. Use the following
sections as a guide.
For video components, you must make two connections—one for audio, one for video.
Video Connection Formats
Video equipment can be connected to the AV receiver/AV amplifier by using any one of the following video connection
formats:
composite video, S-Video, component video, or HDMI, the latter offering the best picture quality.
The AV receiver/AV amplifier can upconvert and downconvert between video formats, depending on the HDMI Monitor
setting, which generally determines whether video signals are upconverted for the component video output or the HDMI
output.
■ HDMI Monitor Setting Set to Yes
With the HDMI Monitor setting set to Yes (see
page 47), video input signals flow through the
AV receiver/AV amplifier as shown, with com-
posite video, S-Video, and component video
sources all being upconverted for the HDMI out-
put. Use this setting if you connect the AV
receiver/AV amplifier’s HDMI OUT to your TV.
The composite video, S-Video, and component
video outputs pass through their respective input
signals as they are.
Connecting Both Audio & Video
: Signal Flow
Video
Audio
Video
Audio
Speakers (see page 20 for connection infor-
mation) DVD player, etc.
TV, projector,
etc.
Which Connections Should I Use?
IN
MONITOR OUT
DVD player, etc.
AV receiver/
AV amplifier
TV, projector, etc.
Composite
Composite
S-Video
S-Video
Component
Component

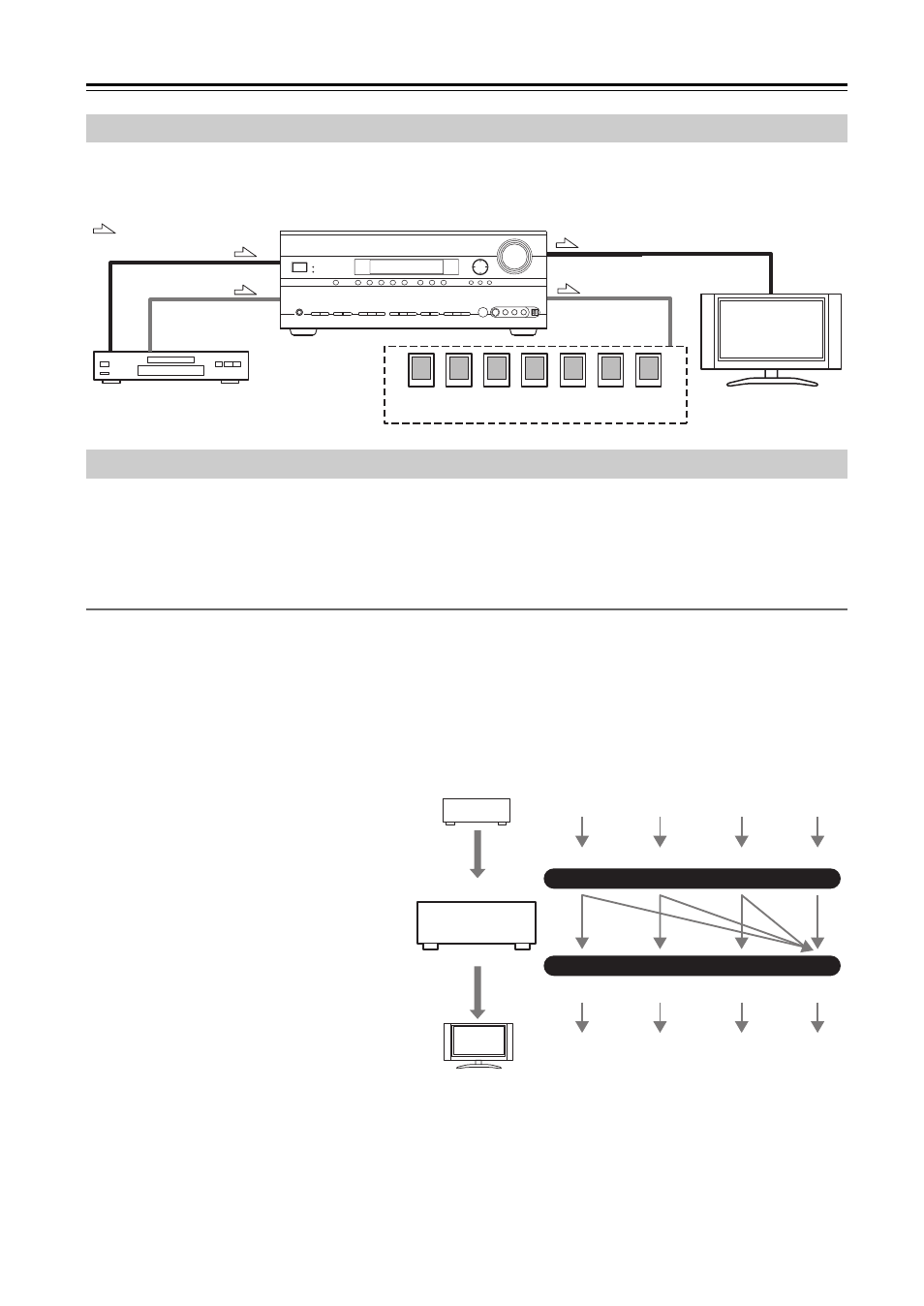

Video Signal Flow Chart
HDMI
HDMI
