Installation Guidelines
169
5. With the radar scanner powered check that you can change range on
the E-Series display using RayTech.
If the range changes the units are communicating using SeaTalk
hs
.
6. You can now set up RayTech for use as you require.
To connect a PC to a single E-Series display:
1. Connect the ethernet port of the PC to the SeaTalk
hs
crossover coupler.
2. Connect the crossover coupler to the E-Series display using a SeaTalk
hs
cable.
3. Power the PC.
4. Open RayTech on the PC.
RayTech will now run an internal program to automatically create an IP
address and connect to the SeaTalk
hs
network.
5. In RayTech open a new radar page.
6. With the radar scanner powered check that you can change range on
the E-Series display using RayTech.
If the range changes the units are communicating using SeaTalk
hs
.
7. You can now set up RayTech for use as you require.
If you need to connect the PC to an additional network you will need a
second ethernet interface on the PC.
IMPORTANT: When you attempt to connect to a SeaTalk
hs
network if a
dynamic IP configuration server (DHCP) is detected by RayTech, the soft-
ware will load but it will be unable to communicate with SeaTalk
hs
. A
warning to this effect will be displayed. For full details of configuring your
system under these circumstances refer to the Customer Support section at
www.raymarine.com.
170

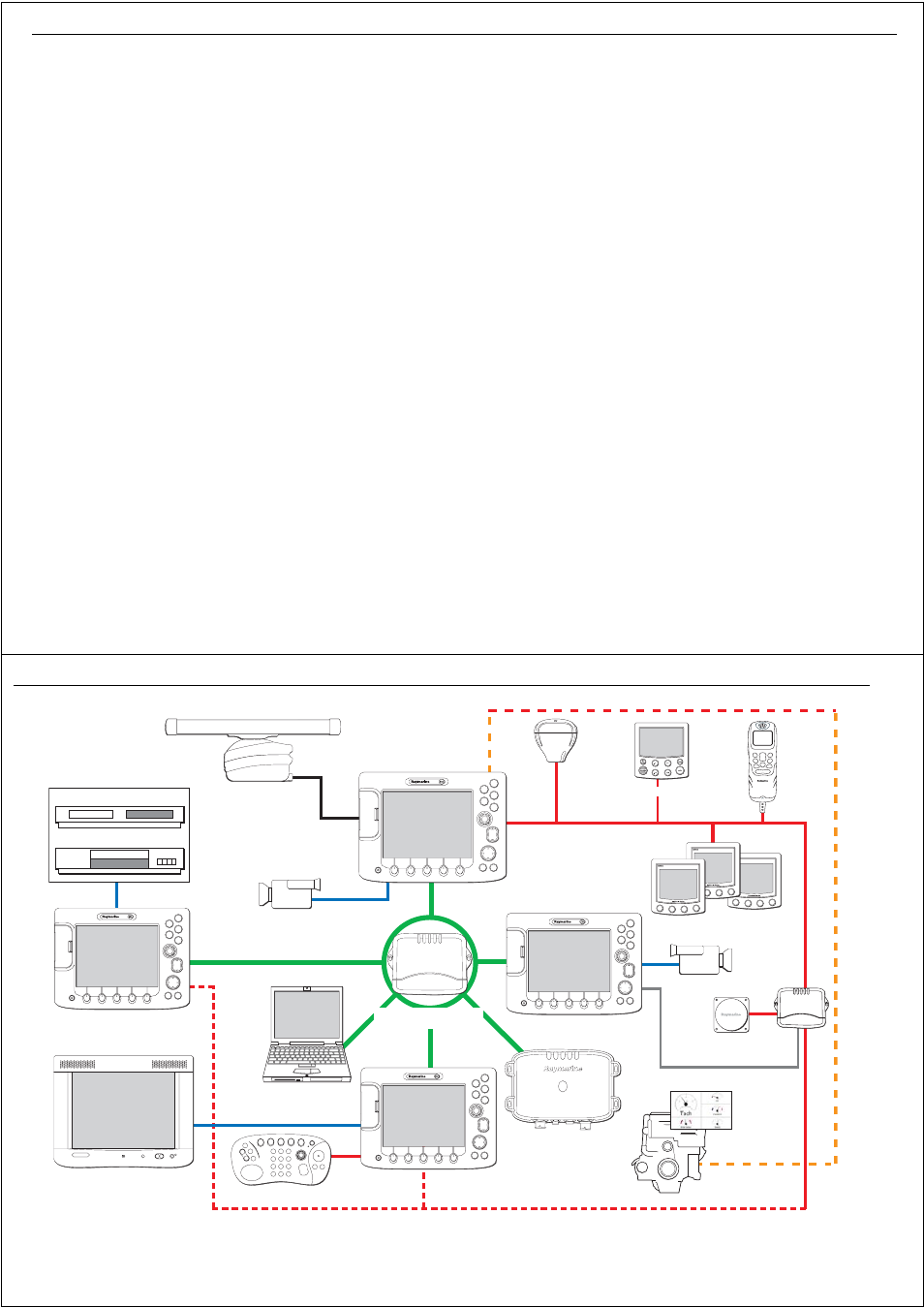

RayTech RNS V6.0 - Users Guide
Raymarine SeaTalk
hs
integrated system
SeaTalk2
SeaTalk
SeaTalk2
CANCEL
OK
RANGE
IN
OUT
PAGE
ACTIVE
WPTS
MOB
MENU
DATA
CANCEL
OK
RANGE
IN
OUT
PAGE
ACTIVE
WPTS
MOB
MENU
DATA
DVD
23.47
VIDEO
23.47
DVD
Video
Radar scanner
GPS
M1500 or monitor
Remote keyboard
PC running
RayTech
Fishfinder DSM 300
SeaTalk
hs
Network Switch
Instruments
Autopilot
DSC VHF
Master display
Additional display
Video x 4
MENU
CH
OK
16/9
HI/LO
SCAN
WATCH
SQ
RAY240
WX
11.18.02
CANCEL
OK
RANGE
IN
OUT
PAGE
ACTIVE
WPTS
MOB
MENU
DATA
Additional display
CANCEL
OK
RANGE
IN
OUT
PAGE
ACTIVE
WPTS
MOB
MENU
DATA
Additional display
Video x 4
Compass
Engine
monitoring
Course
Computer
NMEA 10 Hz
D8799_1
