SECTION 10: O PTIONAL H EATER A CCESSORIES
47 of 75

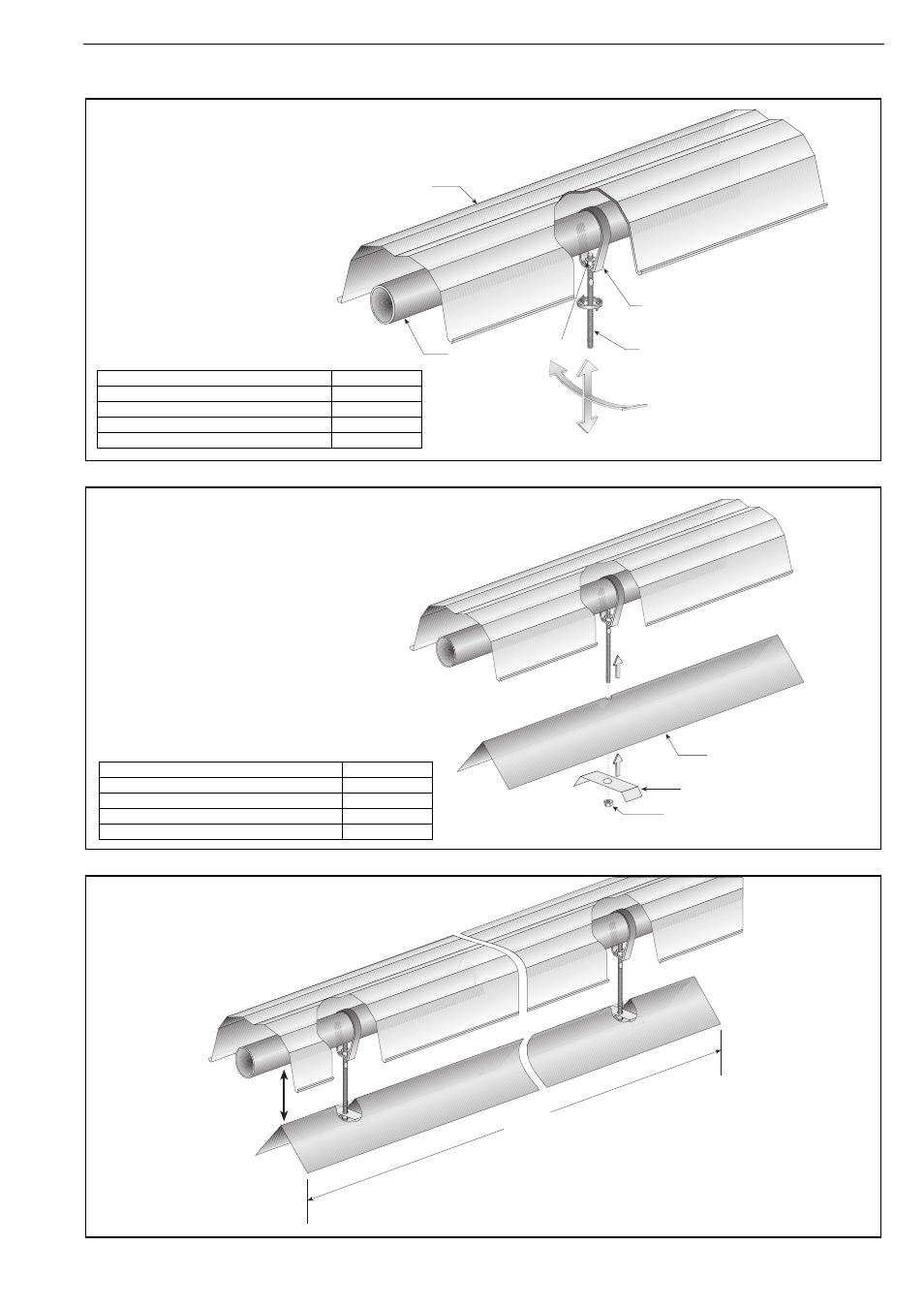

10.6 Undershield Installation
10.6.1 Hanger Installation
10.6.2 Undershield Installation
10.6.3 Adjust Undershield Height
Reflector
Tube
Assembly Hanging Bracket
Stud
Hex Nut
Description Part Number
Undershield Reflector Package 101 cm S7399K
Assembly Hanging Bracket C0318B
Stud M6 x 90 C0693B
Nut M6 C0090B
Undershield Reflector
Hex Nut
Shield Support Bracket
Description Part Number
Undershield Reflector Package 1010 mm S7399K
Undershield Reflector 1010 mm C0521B
Nut M6 C0090B
Shield Support Bracket 02751700
1010 mm
