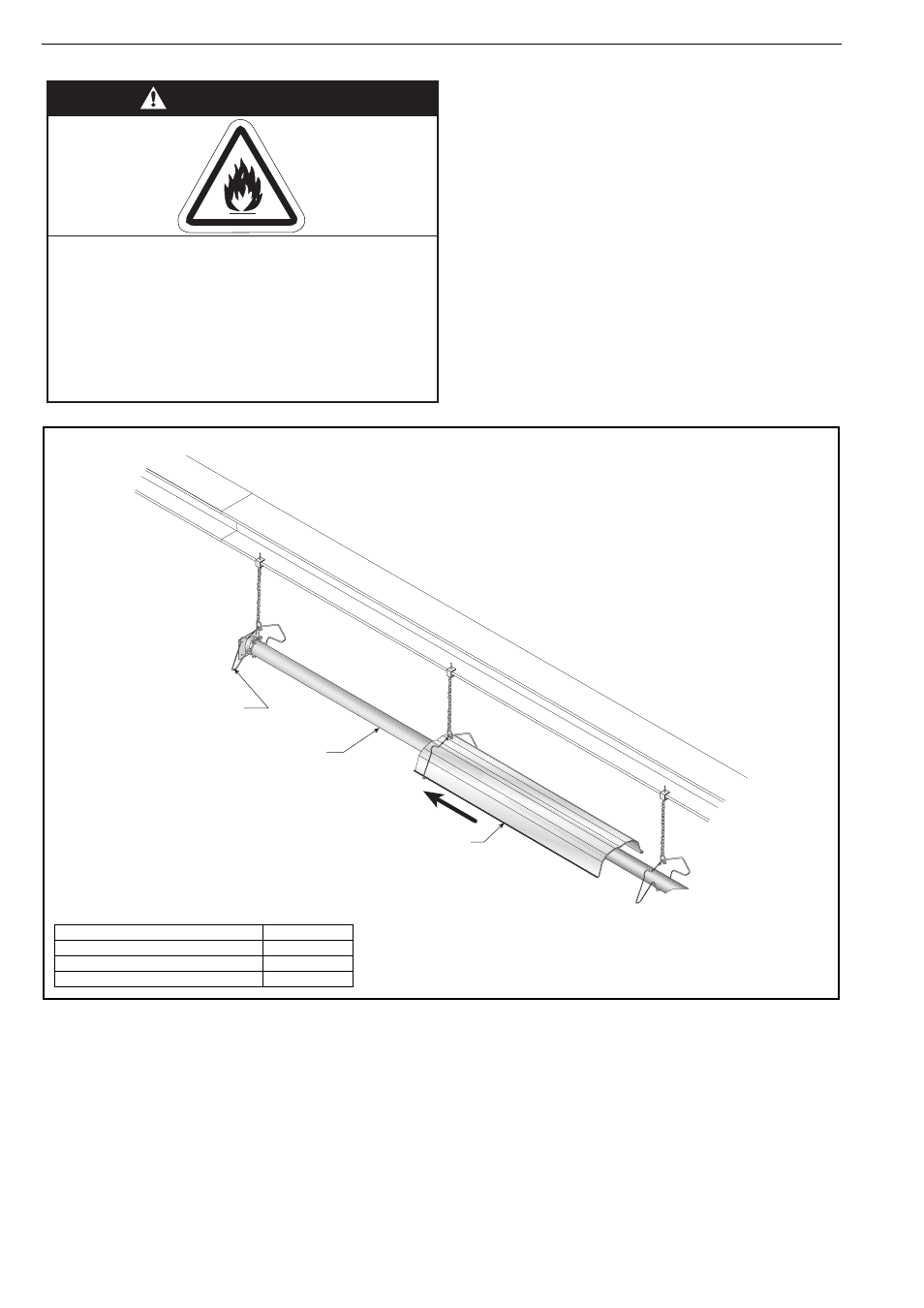

Step 6.6 Reflector Installation
WARNING
Fire Hazard
Support reflector with reflector hanger
and support strap.
Reflector must not touch tube.
Failure to follow these instructions can result
in death, injury or property damage.
Hanger
Burner Tube
Reflector
Description
Part Number
Tube/Reflector Hanger
03090100
Burner Tube
03051100
Reflector
02750303
