SECTION 7: U-T UBE H EATER I NSTALLATION
29 of 75

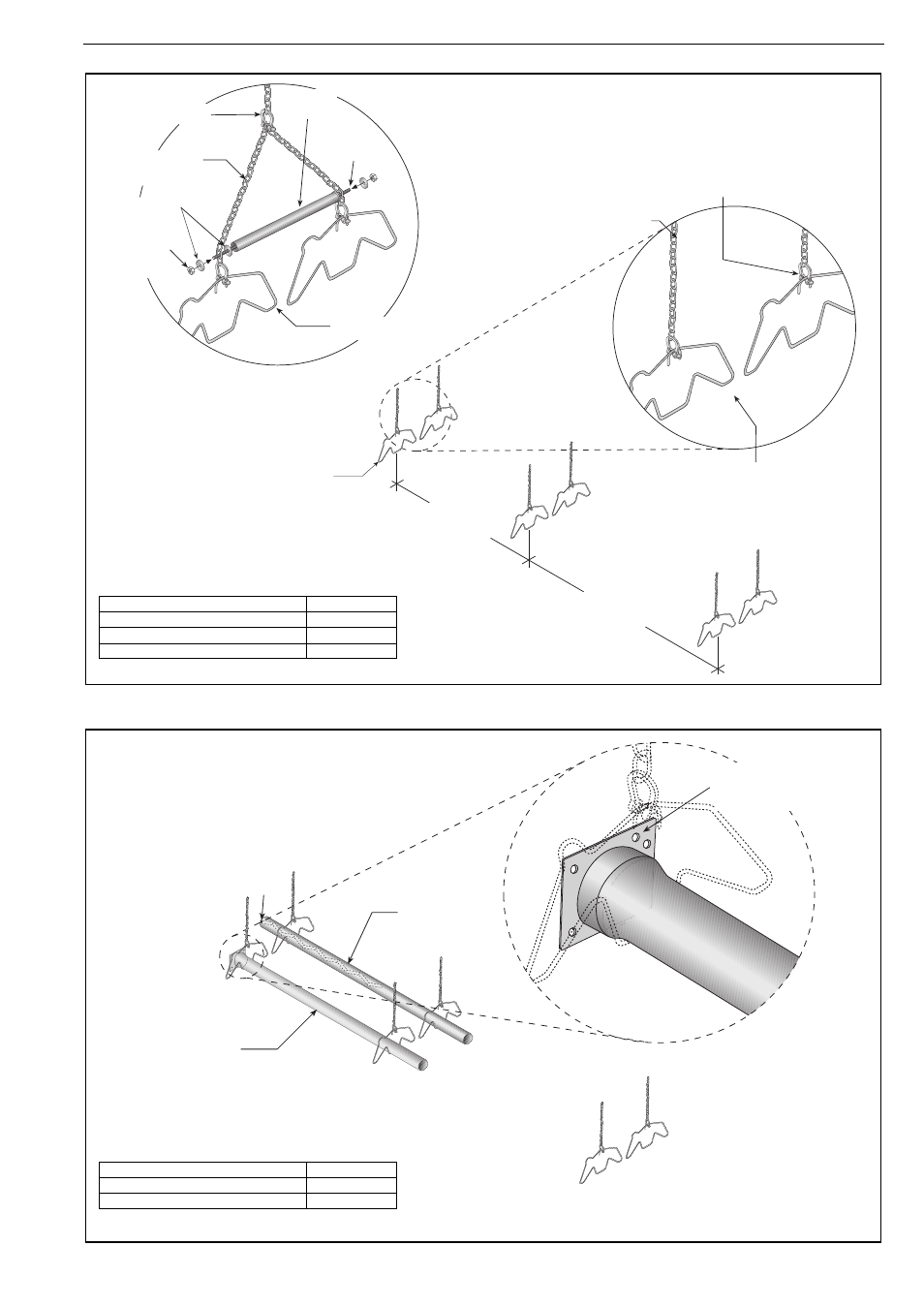

Step 7.2 U-Tube Hanger Placement
Step 7.3 Burner Tube and Fan Tube Installation
2290 mm ± 250 mm
See Assembly
Drawing
First Tube and
Reflector Hanger
Bow
Shackle
Tube and Reflector
Hanger
Suspension
Chain
Optional
Hanging
Configuration
Washers
Bolt
(Torque:
13.5 Nm
129 in lb)
Bow
Shackle
NOTE: Spreader bar must be used on
single suspension point installations.
Do not hang heater from spreader bar.
Threaded
Bar
Tube and Reflector
Hanger
Suspension
Chain
Spreader
Bar
Description Part Number
Bow Shackle E0007576
Tube/Reflector Hanger 03090100
Spreader Bar 07260010
Fan Tube
Burner Tube
Weld seam
must be to the
bottom of the tube.
Offset mounting
hole must be
to the top.
Weld
Spot
Description Part Number
Burner Tube 03051100
Fan Tube S5127W
