SECTION 10: O PTIONAL H EATER A CCESSORIES
43 of 75

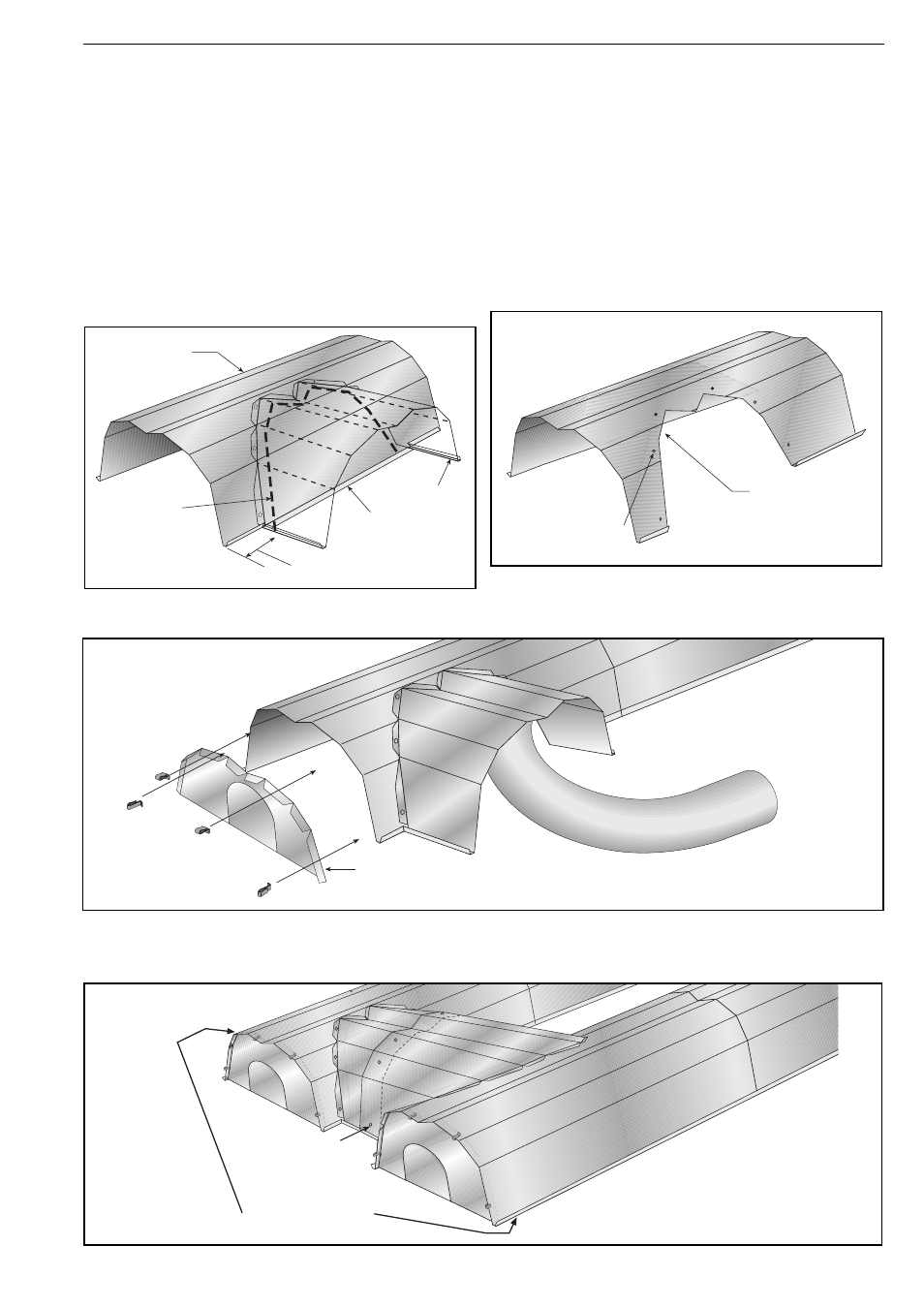

10.2 U-Tube Cover Installation
The package contains two reflector joint pieces (P/N 02750901), one 8’ reflector and 18 x #8 sheet metal screws.
Install the U-tube cover using the following procedure.
Step 10.2.1
Cut the 8’ reflector in half to be used on both sides to
cover the U-tube.
Step 10.2.2
Flatten 4’ reflector edge where joint piece matches. Put a
mark on the 4’ reflector, directly over the tube center.
Center the accessory joint piece on the mark and scribe
its contour on the reflector. Scribe the location of the
mounting holes.
Step 10.2.3
Cut away the reflector to clear the tube, leaving about 1”
of material inside the scribed contour to attach the
accessory joint. Drill or punch six 3 mm diameter holes in
reflector in the positions shown below.
Step 10.2.4
Use six #8 sheet metal screws to attach the joint piece.
Repeat Step 10.2.1 through Step 10.2.4 to attach the reflector joint piece on the other reflector.
Step 10.2.5
The overlap of both reflector joint pieces is attached with six #8 sheet metal screws.
4' Reflector
Section
Reflector
Joint
Flatten
Edge
250 mm
maximum
Scribe
Contour
Cut away contour
with tin snips.
Punch/Drill six
3 mm holes
Reflector
End Cap
(Do not remove
cut out)
Attach Reflector
Joint with six #8
sheet metal screws.
Secure overlap
with six #8
sheet metal screws.
4' Reflector Sections
