5 sports hall guard installation – Roberts Gorden Vacuum Assisted Linear User Manual
Page 52
B
LACKHEAT
®
I
NSTALLATION
O
PERATION
AND
S
ERVICE
M
ANUAL
46 of 74

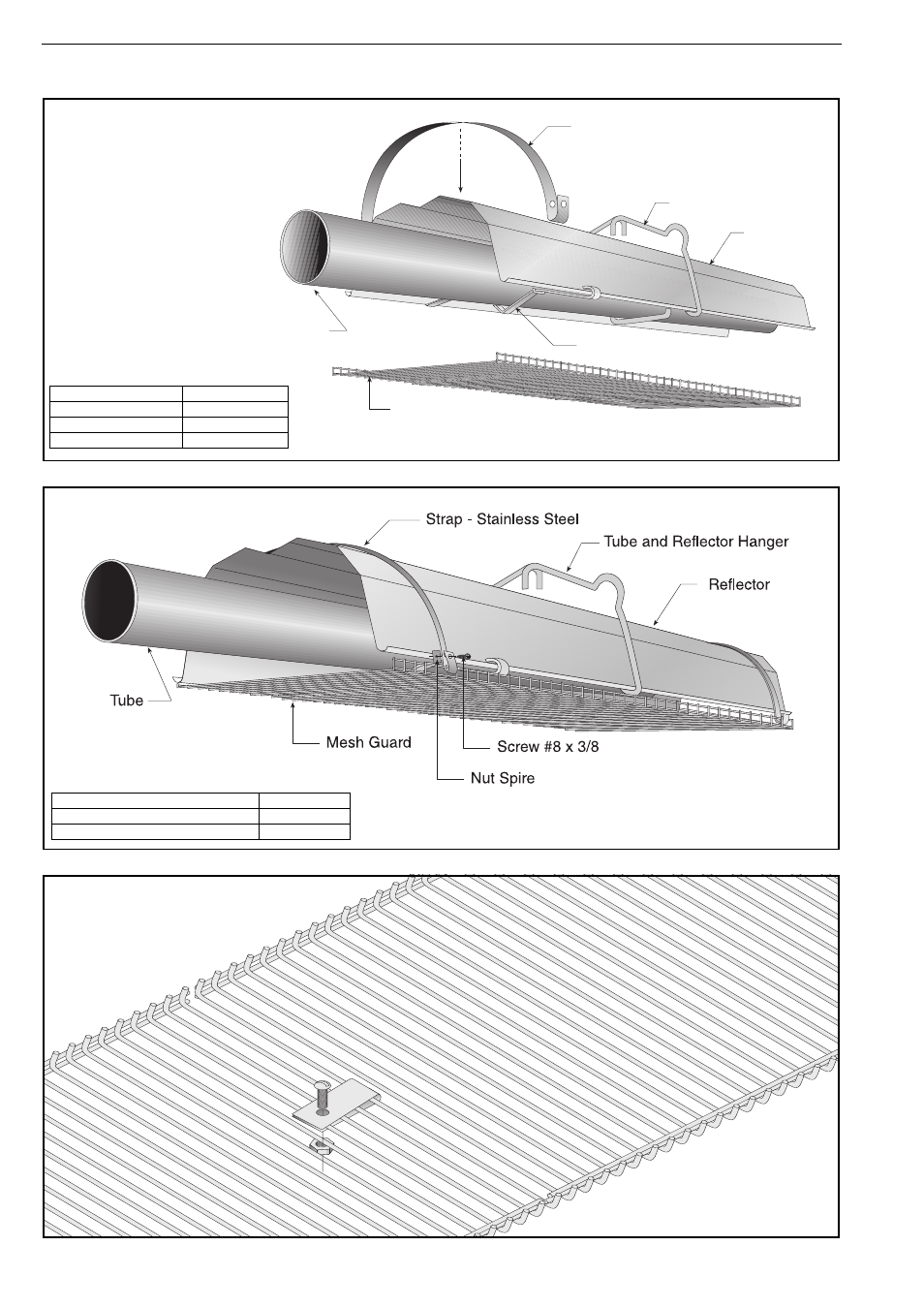

10.5 Sports Hall Guard Installation
Step 10.5.1 Grille Installation
Step 10.5.2 Fastener Installation
Step 10.5.3 Mesh Guard Connection
Tube and
Reflector Hanger
Reflector
Tube
Reflector Support
Strap - Stainless Steel
Mesh Guard
Description
Part Number
Mesh Guard 2438 mm
E0009855
Mesh Guard 1524 mm
C2329B
Strap Stainless Steel
S5218W
Description
Part Number
Nut Spire
C1088B
Screw #8 x 3/8
C1089B
