SECTION 9: B URNER & F AN I NSTALLATION
37 of 75

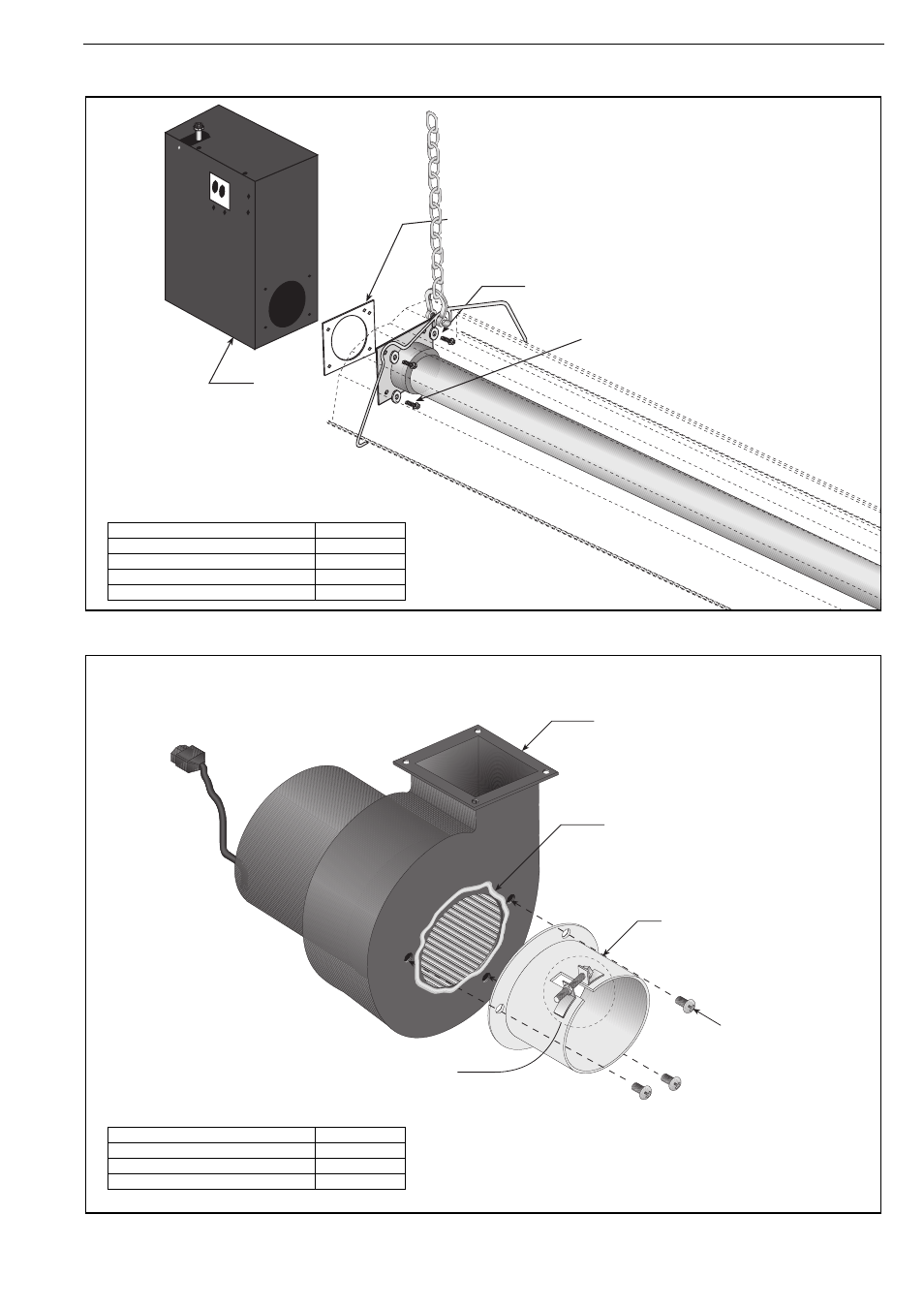

SECTION 9: BURNER & FAN INSTALLATION
Step 9.1 Burner Installation
Step 9.2 Fan Assembly
Lock
Washer
Gasket
Bolt
(Torque: 13.5 Nm
120 in lb)
Burner
Description Part Number
Bolt 94273914
Lock Washer 96411600
Gasket 02568200
Burner 0720XXXX
NOTE: Tube clamp package not shown for clarity.
For details,
see Page 21, Step 6.5.
Fan Assembly
Vent Adapter
Screw
(Torque: 2 Nm
18 in lb)
Note: Apply Silicone
(Recommended)
Install vent adapter
with clamp in the
up position.
Description Part Number
Fan Assembly 072600XX
Vent Adapter 9071060X
Screw E00075XX
