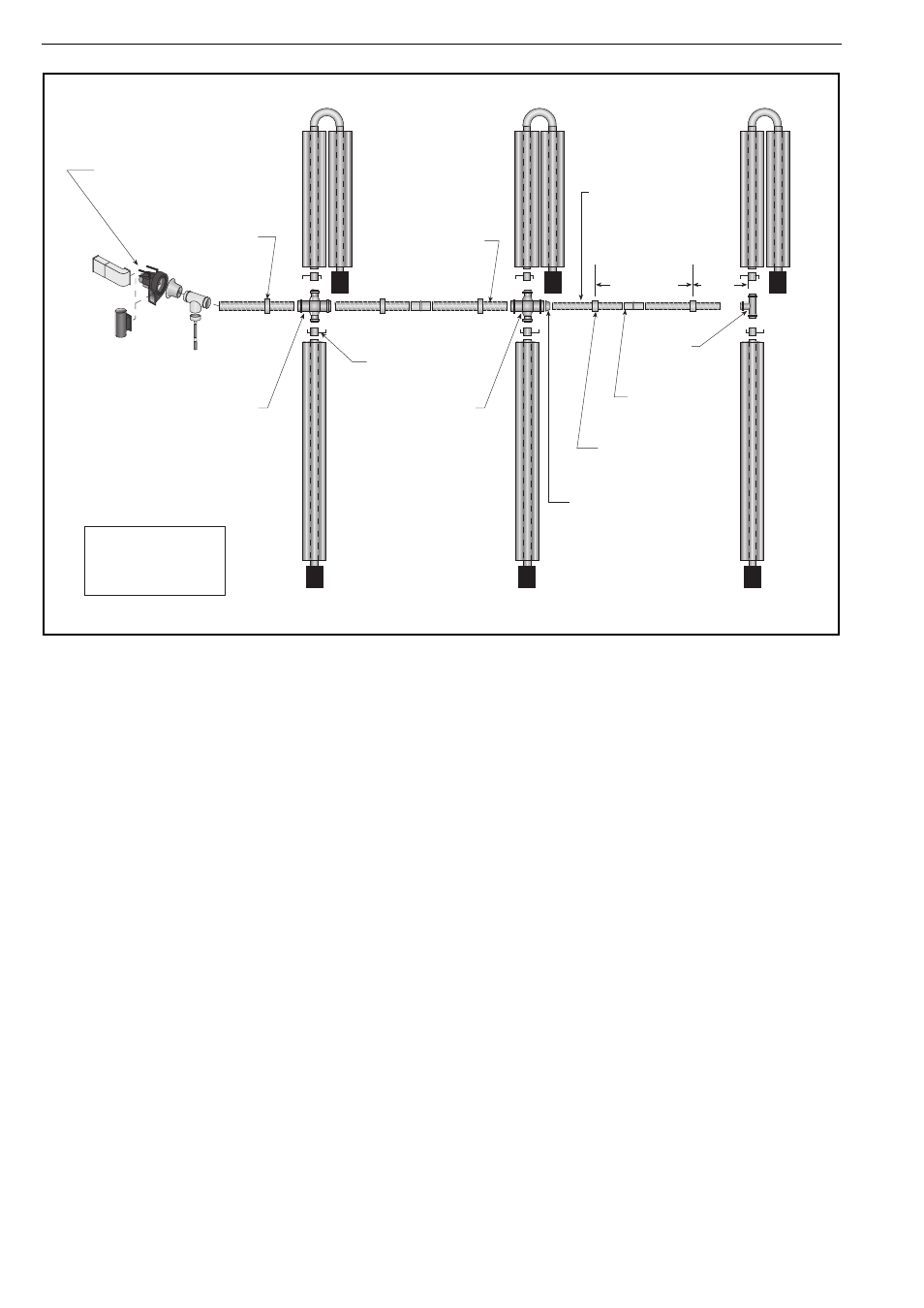

Figure 26: Typical Manifold Layout (Linear and U-Tube Configuration)
Typical Fan
Arrangement
150 mm Hanger
150 mm Manifold
Damper (Typical)
Cross
(100 x 150 x 100 x 150)
100 mm Manifold
100 mm Hanger
ID/ID Sleeve
Tee
(100 x 100 x 100)
Cross
(100 x 150 x 100 x 150)
Max
3000 mm
BH25ST
BH25UT
BH25ST
BH25UT
BH25ST
BH25UT
NOTE: Be sure to
silicone seal all
manifold joints
Reducer
(100 x 150)
Max
1000
mm
