3 decorative grille installation – Roberts Gorden Vacuum Assisted Linear User Manual
Page 50
B
LACKHEAT
®
I
NSTALLATION
O
PERATION
AND
S
ERVICE
M
ANUAL
44 of 74

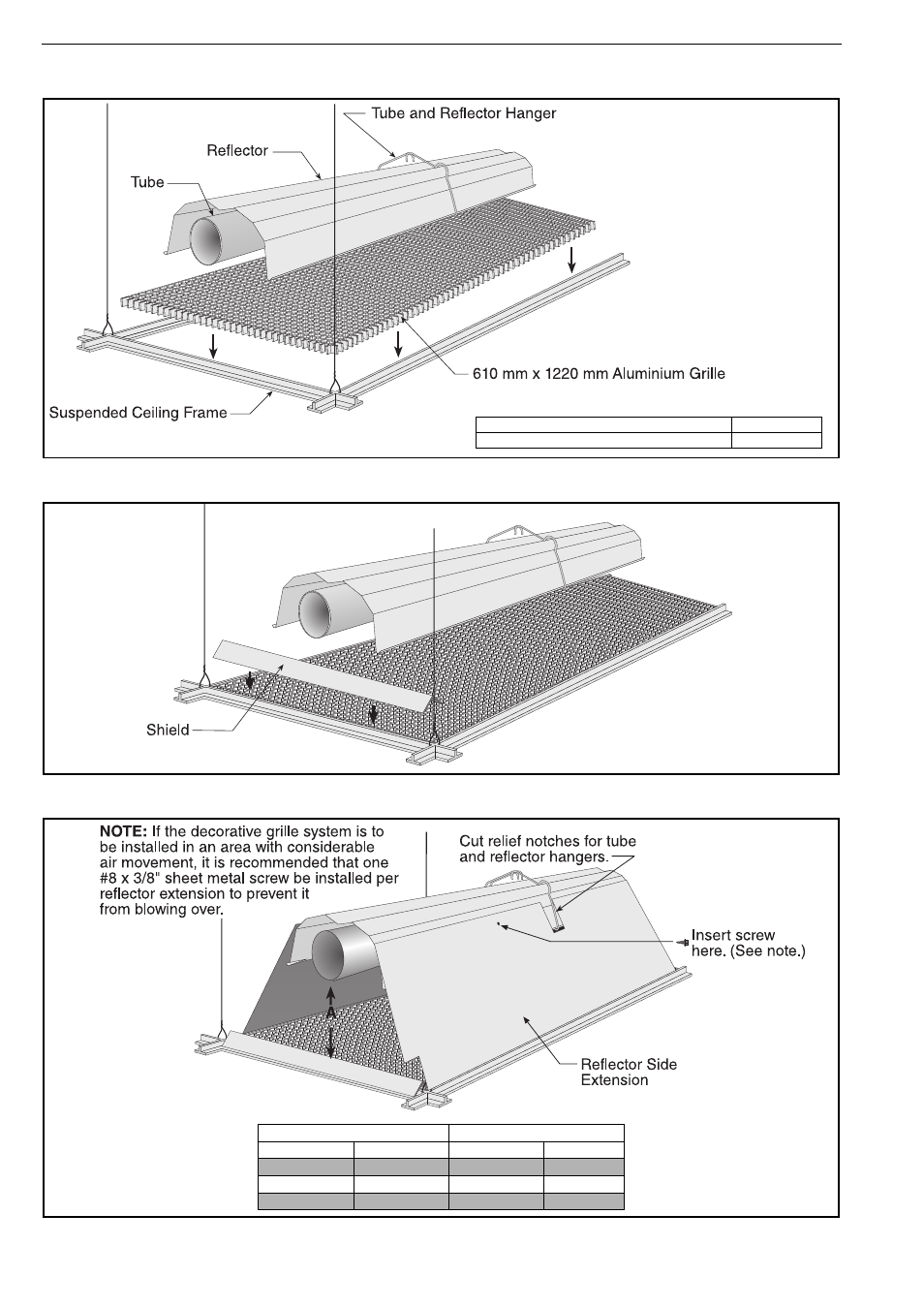

10.3 Decorative Grille Installation
Step 10.3.1 Grille Installation
Step 10.3.2 Frame Shield Installation
Step 10.3.3 Reflector Side Extension Installation for Decorative Grilles
Description
Part Number
Aluminium Grille 610 mm X1220 mm
91407000
Distance "A"
Extension
Minimum
Maximum
Part No.
Width
40
150 mm
01370408
200 mm
150
260 mm
01370412
300 mm
260
370 mm
01370416
400 mm
