SECTION 6: L INEAR & D OUBLE L INEAR H EATER I NSTALLATION
19 of 75

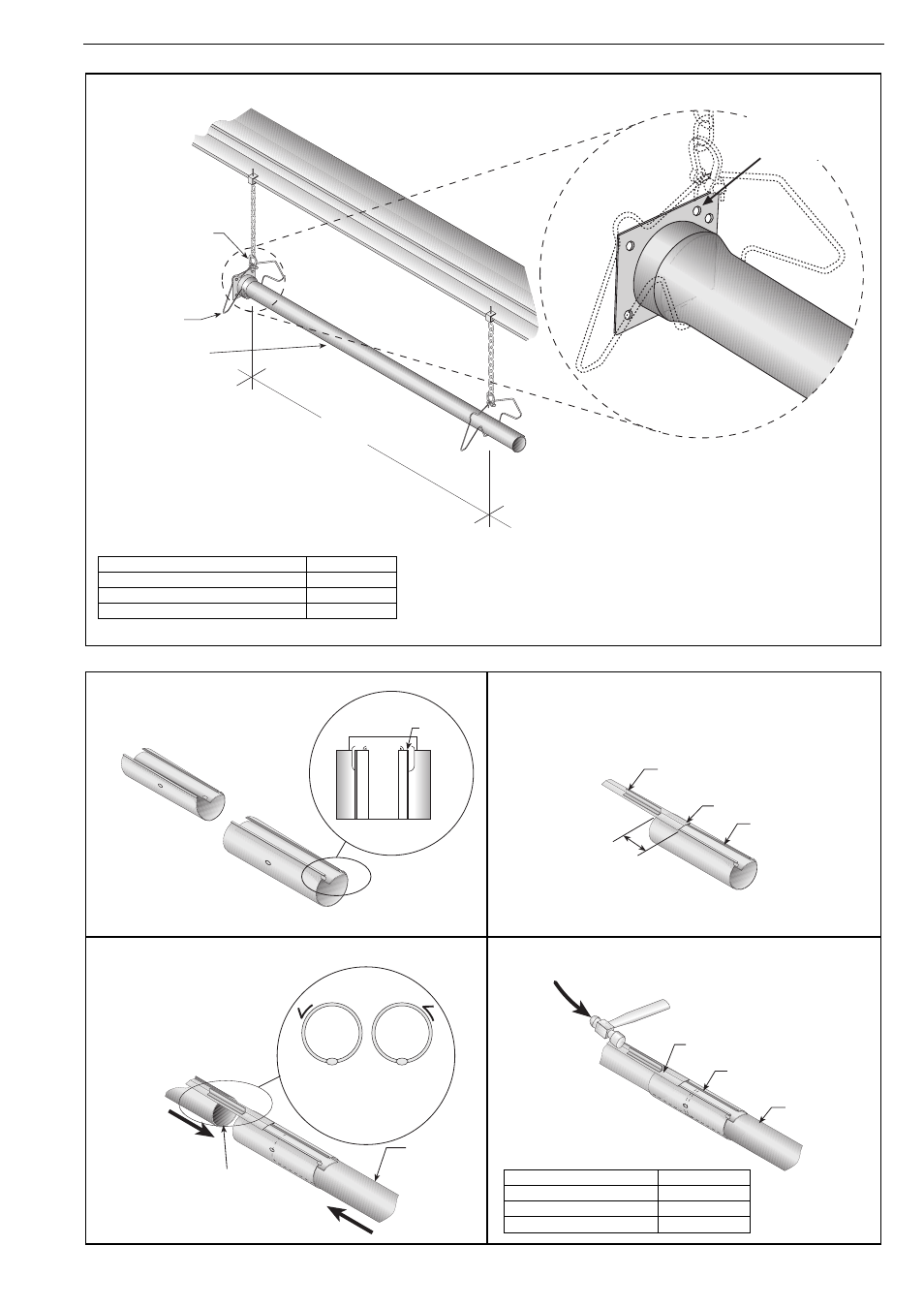

Step 6.3 Burner Tube Installation
Step 6.4 Coupling and Tube Assembly
Bow Shackle
Burner Tube
Hanger
2290 mm ± 250 mm
Note:
Tubing requires a downward
slope of 13 mm per 6000 mm
away from burner.
Weld seam
must be to the
bottom of the tube.
Offset mounting
hole must be
to the top.
Description Part Number
Burner Tube 03051100
Bow Shackle E0007576
Tube/Reflector Hanger 03090100
Tube
Tube
Orient coupling so that
the impact block is in the
2:00 or 10:00 o’clock
positions
Closed
Open
Tab
76 mm to
101 mm
Slide Bar
Coupling
Wide End
Coupling
Tube
Slide Bar
A Close coupling
with tab.
B Start slide bar/coupling lock
onto coupling.
C Insert tubes into coupling. D Tighten coupling to join tubes.
Description Part Number
Coupling 01329600
Slide Bar/Coupling Lock 01329700
Tube 91409408
