5.3 Connection to the Pod Probe
The emulation pod for M16C/20 Series consists of the M30200T-RPD-E emulation pod main unit
and the M302xxT-PRB pod probe. Figure 5.3 shows how to connect the M302xxT-PRB pod probe.
And Figure 5.4 shows how to remove it.
Figure 5.4 Removing the M302xxT-PRB pod probe
Caution
Note on Connecting the Cable:
• Be sure to turn off the power before making connections. Otherwise, the internal
circuits may be damaged.
• The small connectors (J3 and J4) of M302xxT-PRB are guaranteed for only 20
insertion/removal iterations.
• The small connectors (J3 and J4) of FLX64-PRB and the small connectors (J1 and
J2) of M302xxT-PRB are guaranteed for only 50 insertion/removal iterations.

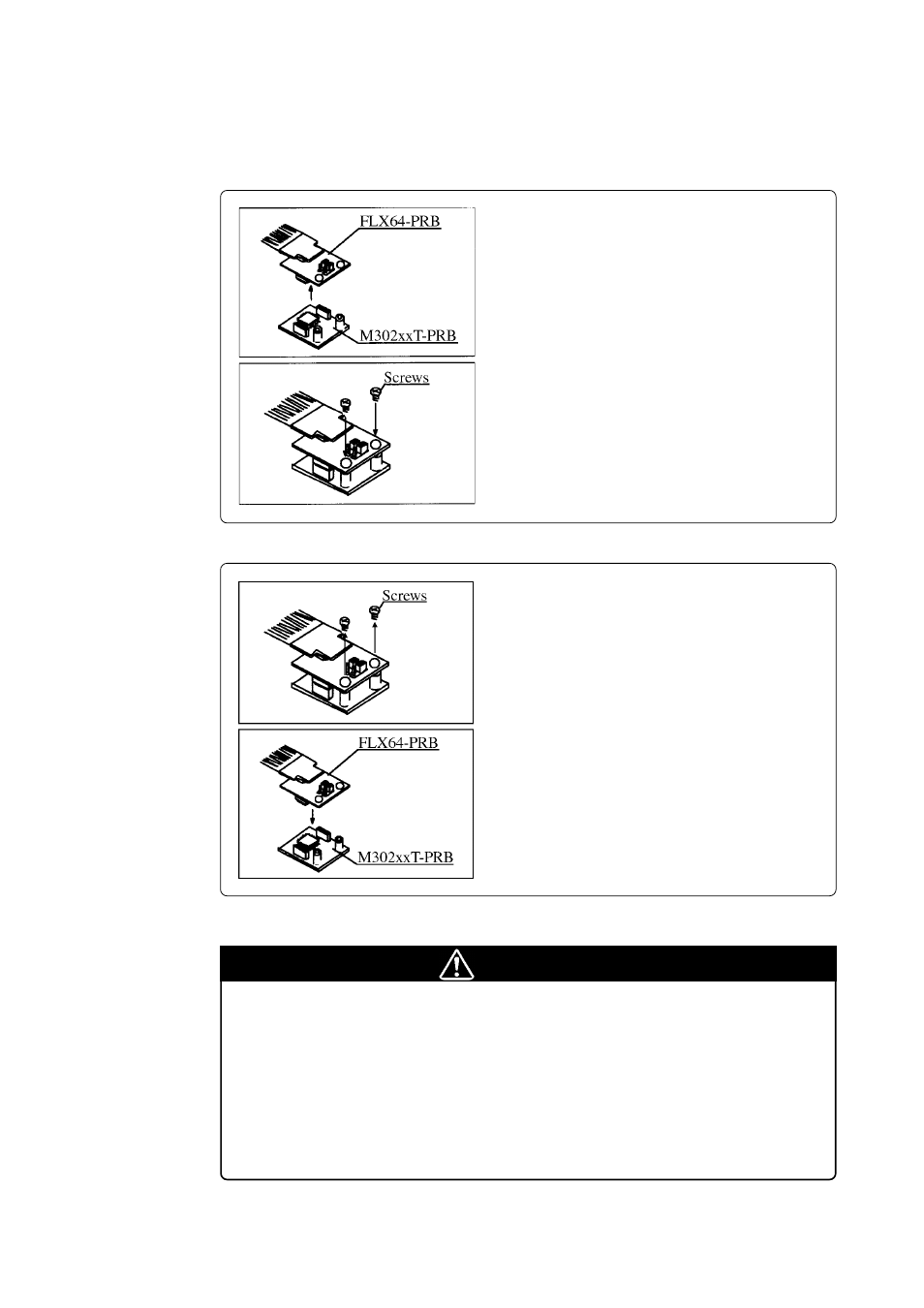

Figure 5.3 Connecting the M302xxT-PRB pod probe
(1) Attach the J1 and J2 connectors of M302xxT-PRB
to the J3 and J4 connectors of FLX64-PRB respec-
tively.
(2) Secure the FLX64-PRB with the two screws.
(1) Unscrew the two screws of M302xxT-PRB.
(2) Lift off the M302xxT-PRB from the FLX64-PRB.
Pull the M302xxT-PRB straight down, being care-
ful not to break the connector.
