4.2 Setting Oscillation Frequency
When you are using the emulation pod main unit's internal oscillator, see (1) below, and when you
are using the target system's oscillator, see (2) on page 21.
(1) Using emulation pod main unit's oscillator
M30200T-RPD-E is available with two types of internal oscillator circuits:
• OSC-3 oscillator circuit board (default when shipped): Xin = 10 MHz
• OSC-2 oscillator circuit board (bare board)
a. OSC-3 oscillator circuit board
M30200T-RPD-E is equipped with a 10MHz internal oscillator circuit board (OSC-3). If
you are running M30200T-RPD-E at 10 MHz, you can use the OSC-3 oscillator circuit
board.
b. OSC-2 oscillator circuit board
M30200T-RPD-E is supplied with the OSC-2 oscillator circuit bare board (connector pin
mounted).
If you are using M30200T-RPD-E with internal oscillation frequencies other than 10
MHz, create the desired oscillator circuit on the OSC-2 bare board and replace the OSC-
3 board with the OSC-2 board.
Figure 4.2 shows the external view and connector pin layout of the OSC-2 oscillator circuit
board.

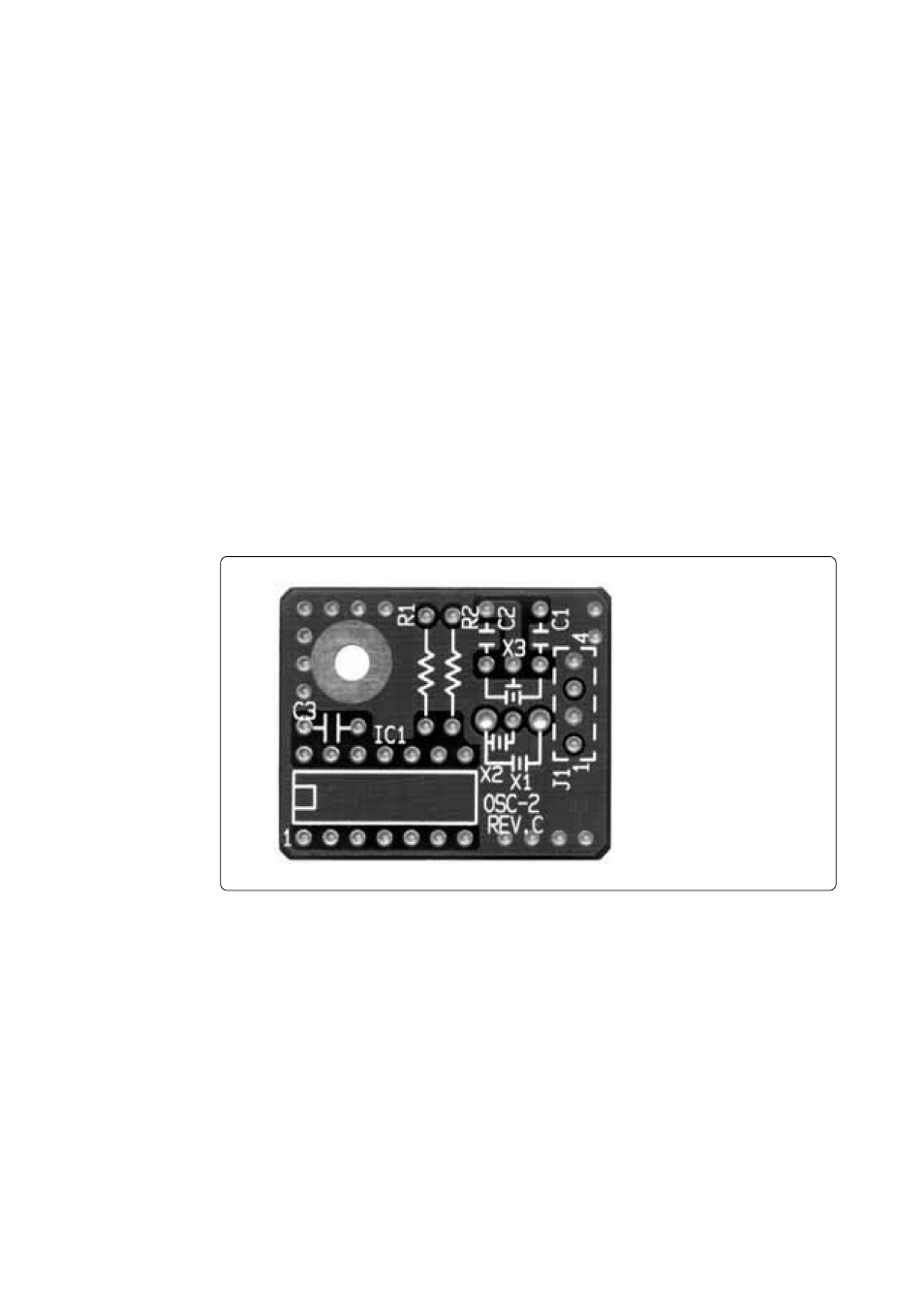

Figure 4.2 External view of oscillator bare board OSC-2 and connector pin layout of OSC-2
J1-4: GND
J1-3: Oscillator output
J1-2: GND
J1-1: Vcc
