5.2 Connection to the Emulation Pod

Attach the FLX120-RPD to M30200T-RPD-E, then secure them with the screws. Figure 5.2 shows
how to connect M30200T-RPD-E and FLX120-RPD.

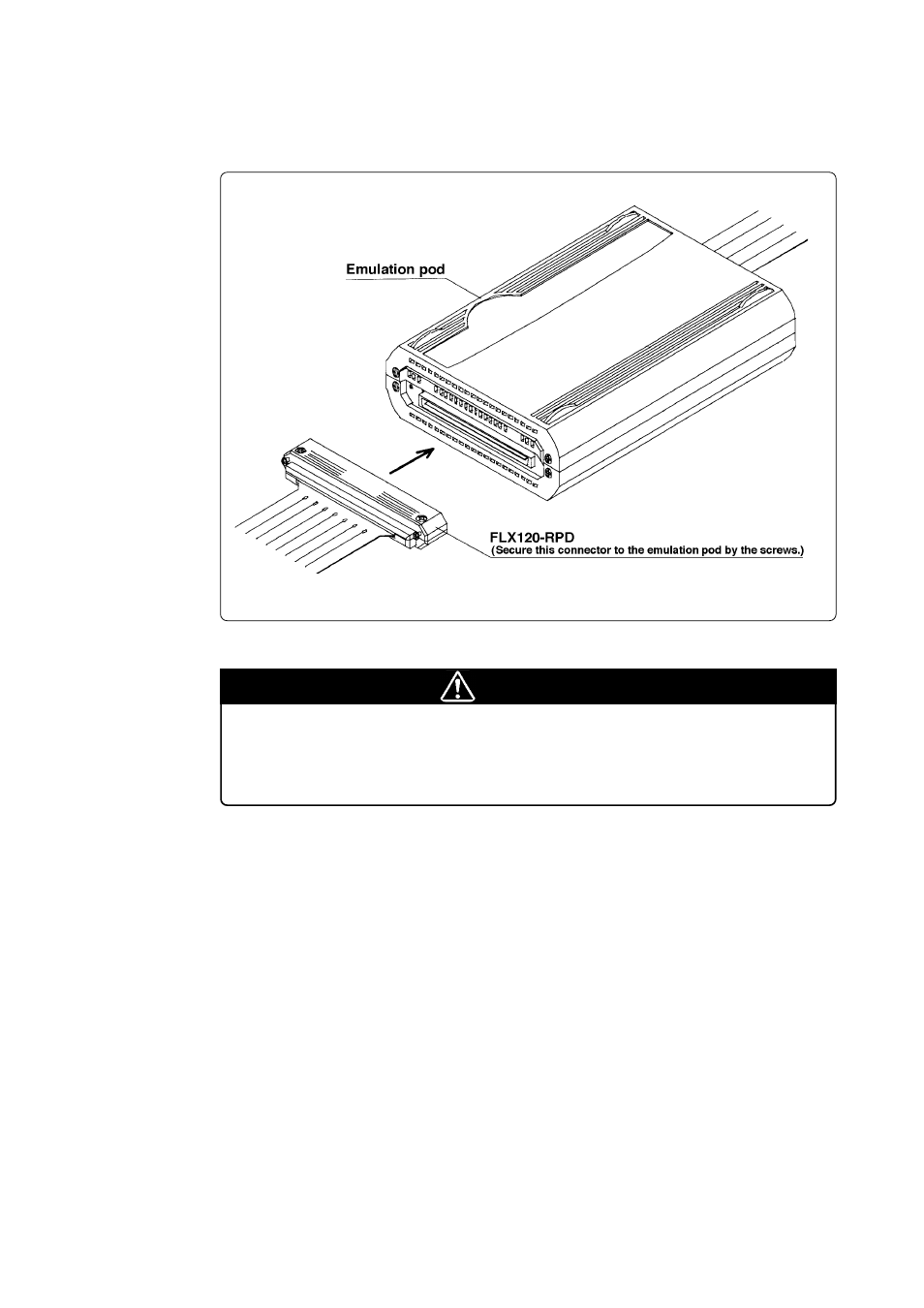

Figure 5.2 Connecting emulation pod and FLX120-RPD

Caution

Note on Connecting the Cable:

• Be sure to turn off the power before making connections. Otherwise, the internal

circuits may be damaged.
