Renesas Emulation Pod forM16C/20 Series M30200T-RPD-E User Manual
Page 22
( 20 / 32 )

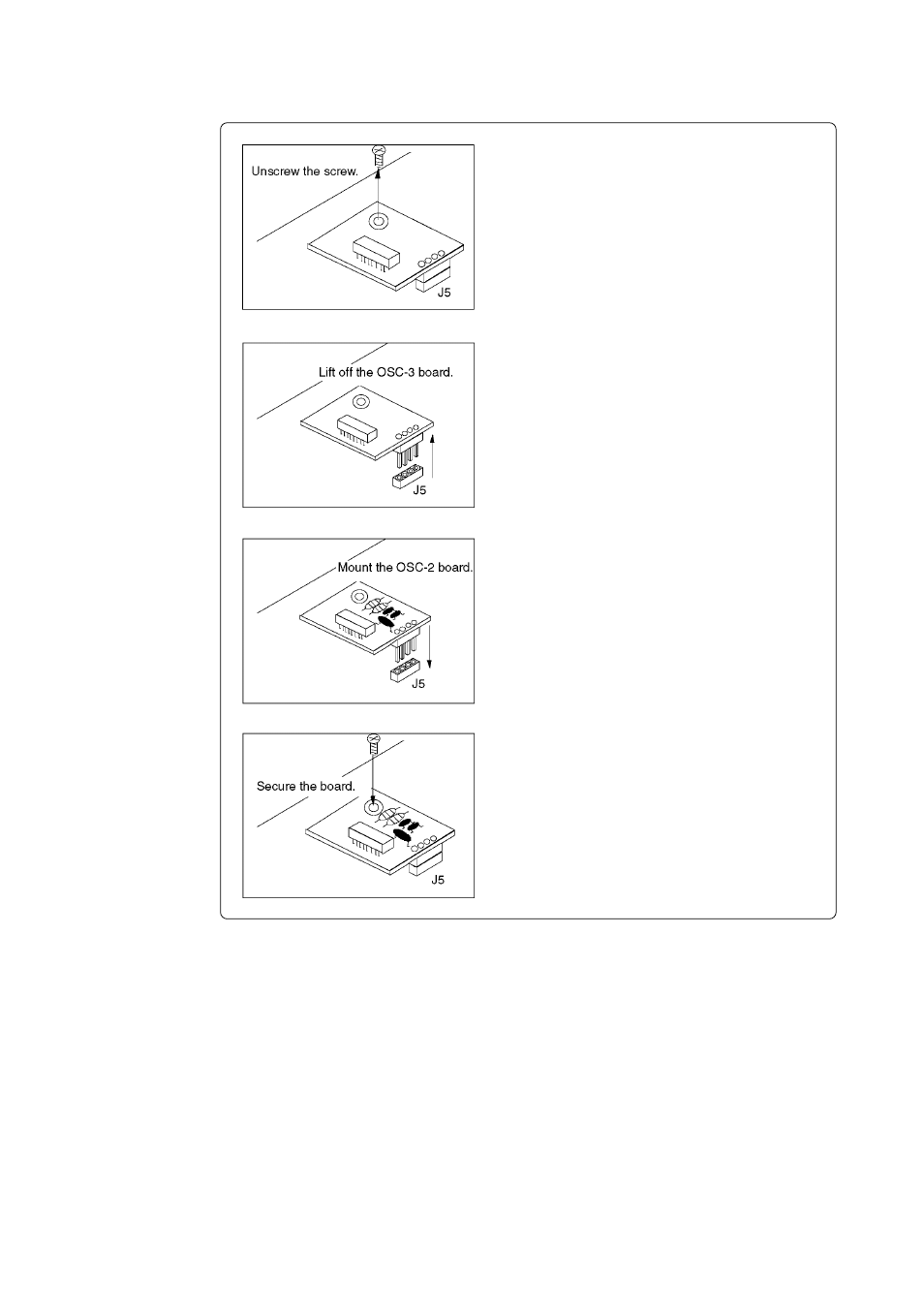

Figure 4.4 Replacing small oscillator circuit boards
How to replace the oscillator circuit board is shown in Figure 4.4 below.
(1) Unscrew the screw securing the oscillator circuit
board.
(2) Lift off the OSC-3 board.
(3) Mount the J1 connector of the OSC-2 board into the
J5 connector of the M30200T-PRT board.
(4) Secure the OSC-2 board with the screw.
