Chapter 2. Introduction
M30200T-RPD-E is used by connecting to the PC4701 emulator main unit. Figure 2.1 shows the
system configuration.

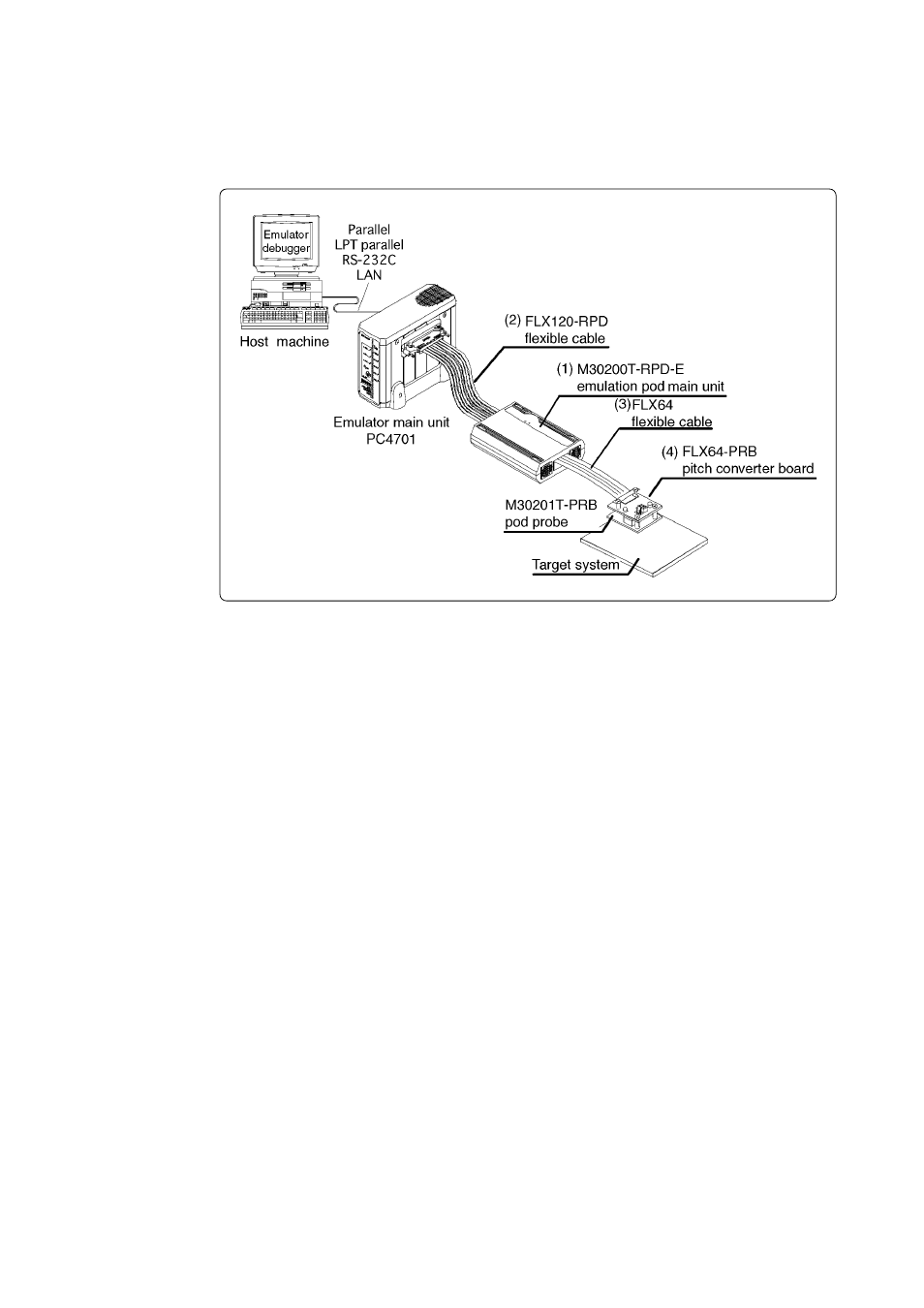

Figure 2.1 System configuration
Products (1) to (4) shown in Figure 2.1 are included with this product.
(1) M30200T-RPD-E (Emulation pod main unit)
This emulation pod main unit contains emulation memory and debugging functions.
(2) FLX120-RPD (Flexible cable)
This 120-pin flexible cable connects the PC4701 emulator main unit and emulation pod main unit.
(3) FLX64 (Flexible cable)
This 64-pin flexible cable connects the emulation pod main unit and pod probe.
(4) FLX64-PRB (Pitch converter board)
This board connects the 64-pin flexible board and pod probe.
