Connecting the Printer
61
2
Connecting the Printer to the Host Using a Parallel Cable
Follow these steps to connect the printer to the host computer using a parallel
cable compliant with IEEE 1284.
A
Confirm that you have the correct cable.
B
Confirm that both the printer and the host computer are turned off. If they
are on, turn them off.
C

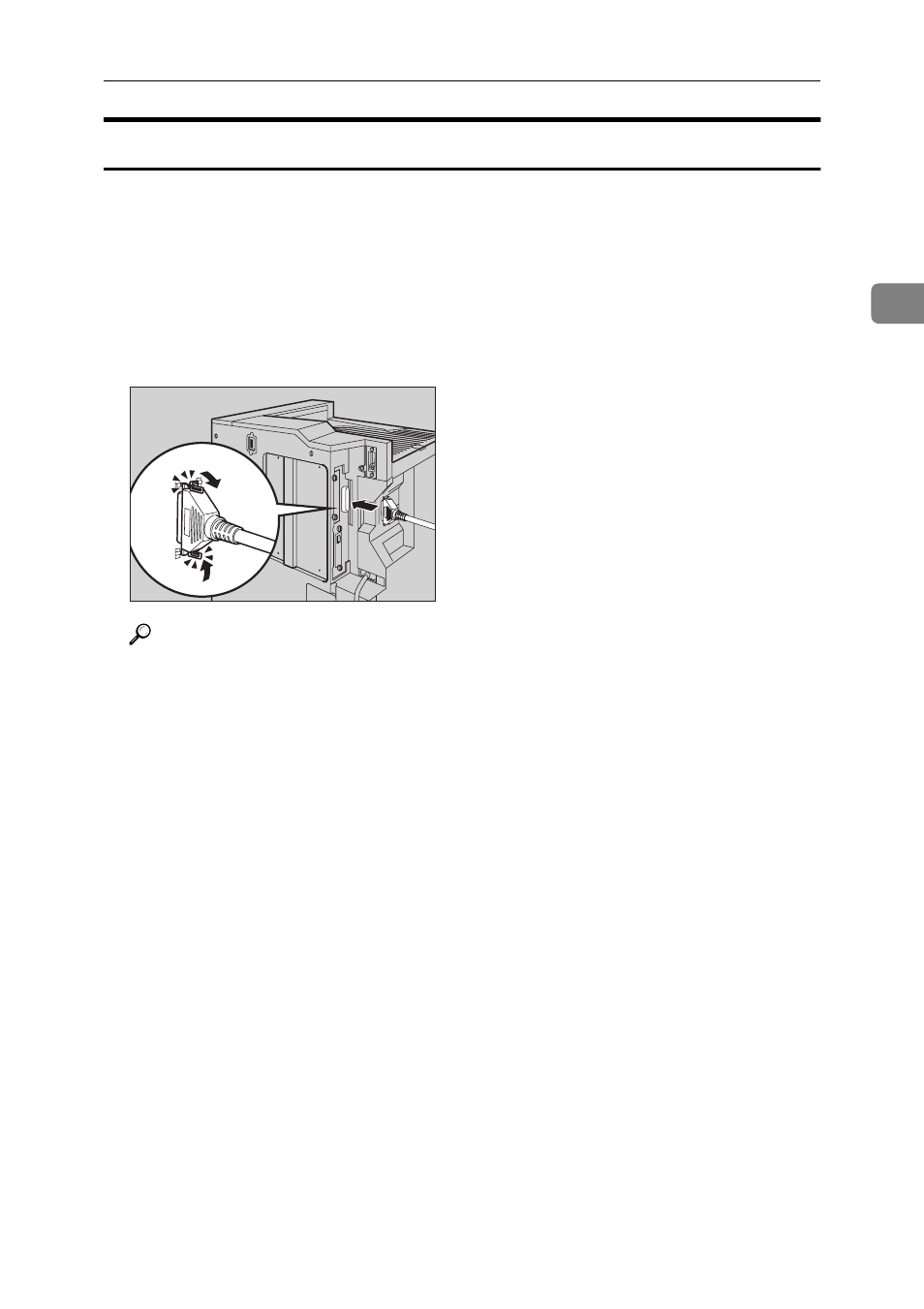

Plug the 36-pin end of the parallel cable into the parallel port of the printer.
Reference
See P.5 “Exterior: Front View” to confirm the position of the parallel port.
D
Squeeze the wire clips on each side of the connector together until they
snap into place. The clips hold the cable securely in place.
E
Plug the other end of the parallel cable into the computer's parallel port.
ZDEH030E
