Setting Up the Printer
32
2
D

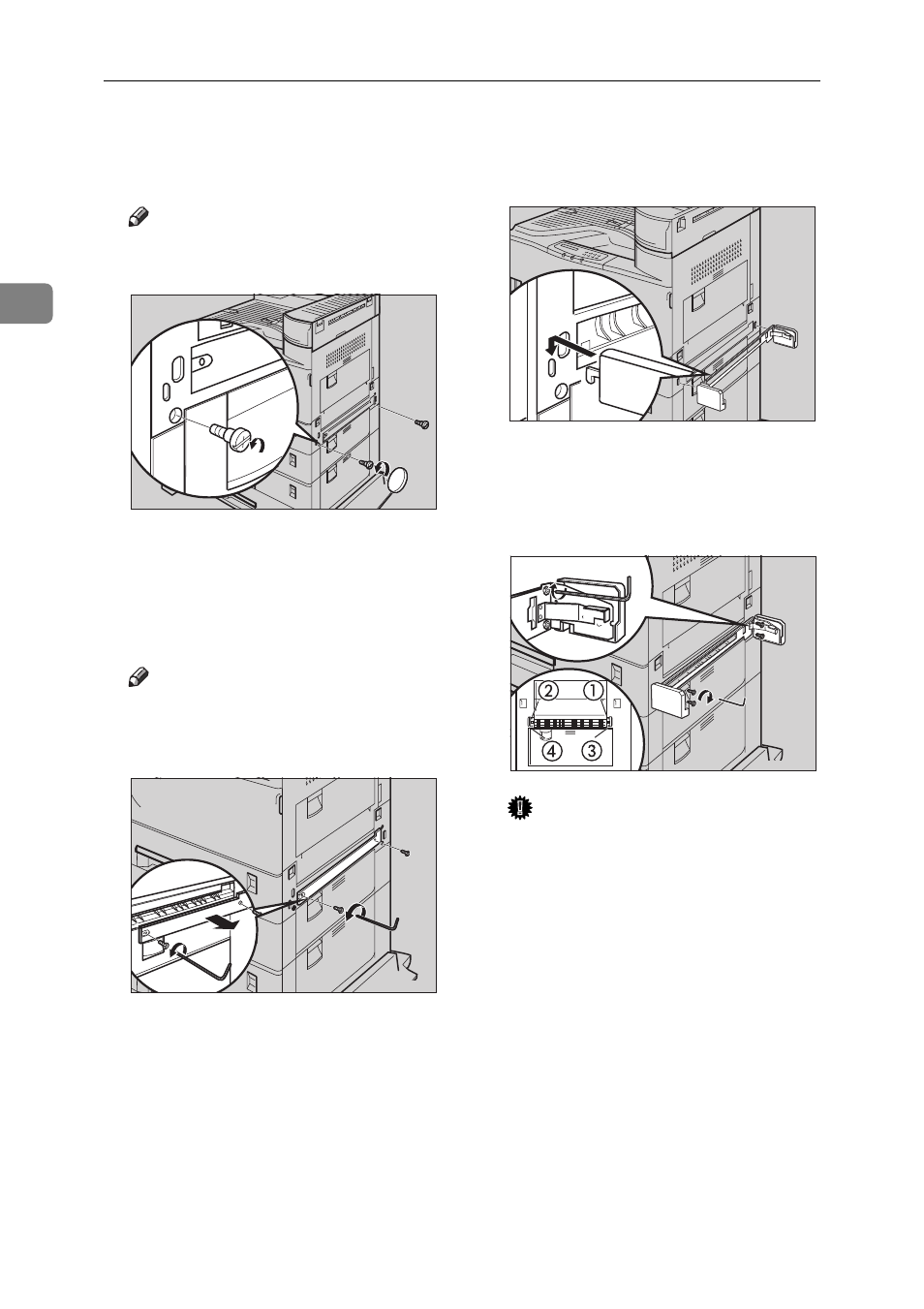

Use a coin to remove the two
screws of the right side of the
printer.
Note
❒ The two removed screws are no
longer required.
E
Remove the two socket screws
holding the cover on the right
side of the printer using the in-
cluded wrench, and remove the
cover.
Note
❒ Keep the removed screws and
cover as they are required when
removing the duplex unit.
F
Mount the brackets of the holder
by placing them in the printer and
pushing downwards slightly.
G
Use the wrench to fasten the four
socket screws in the order shown
in the illustration (
A A A A - D D D D), to se-
cure the holder to the printer.
Important
❒ The order to fasten the screws
is: top right, top left, bottom
right, and bottom left as viewed
from the right side of the print-
er. If the screws were not fas-
tened in that order, the duplex
unit might not close completely
or the bypass tray might not
work correctly.
ZAEP201E
ZAEP510E
ZAEP210E
ZAEP660E
