Guide to the Printer

5

1

Guide to the Printer

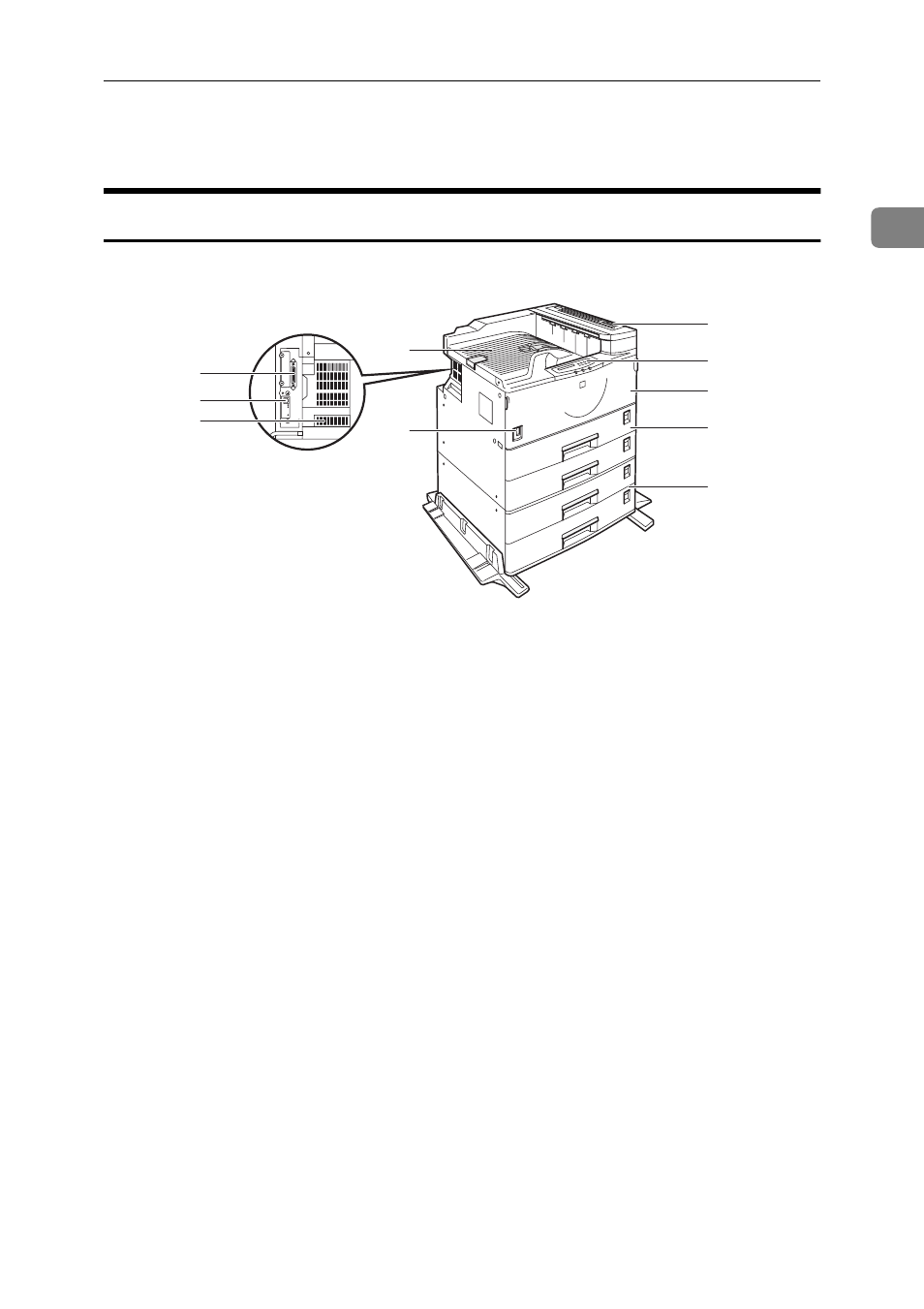

Exterior: Front View

1.

Parallel Interface Port

Plug the parallel cable into this port.

2.

Network Interface Port

Plug the network cable into this port.

3.

Ventilator

These holes help to keep components in-
side the printer from overheating. Do not
lean anything against the printer, and do
not block the ventilator.

4.

Power Switch

Use this switch to turn the printer power
on and off.

5.

Output Tray

Printed output is stacked here with the
print side face down.

6.

Upper Right Cover

Open the upper right cover to remove
misfed paper. Remove the upper right
cover to install the optional interchange
unit.

7.

Operation Panel

Keys for operating the printer and a pan-
el display that shows the printer status.
⇒ P.8 “Operation Panel”

8.

Front Cover

Open this cover to replace consumables
or to view instructions for removing mis-
fed paper.

9.

Paper Tray

Load up to 500 sheets of plain paper (80
g/m

2

, 20 lb). The second tray from the

top can load OHP transparencies or en-
velopes.

10.

PS440 (Optional Paper Feed

Unit)

Load up to 500 sheets of plain paper in its
two trays. PS440 can hold up to 1000
sheets of plain paper (80 g/m

2

, 20 lb).

PS420 can hold up to 2000 sheets of plain
paper (80 g/m

2

, 20 lb).

1

3

2

5

6

7

8

9

10

4

ZDEH010E
