Exterior: rear view – Ricoh Aficio AP3200 User Manual
Page 22
Getting Started
6
1

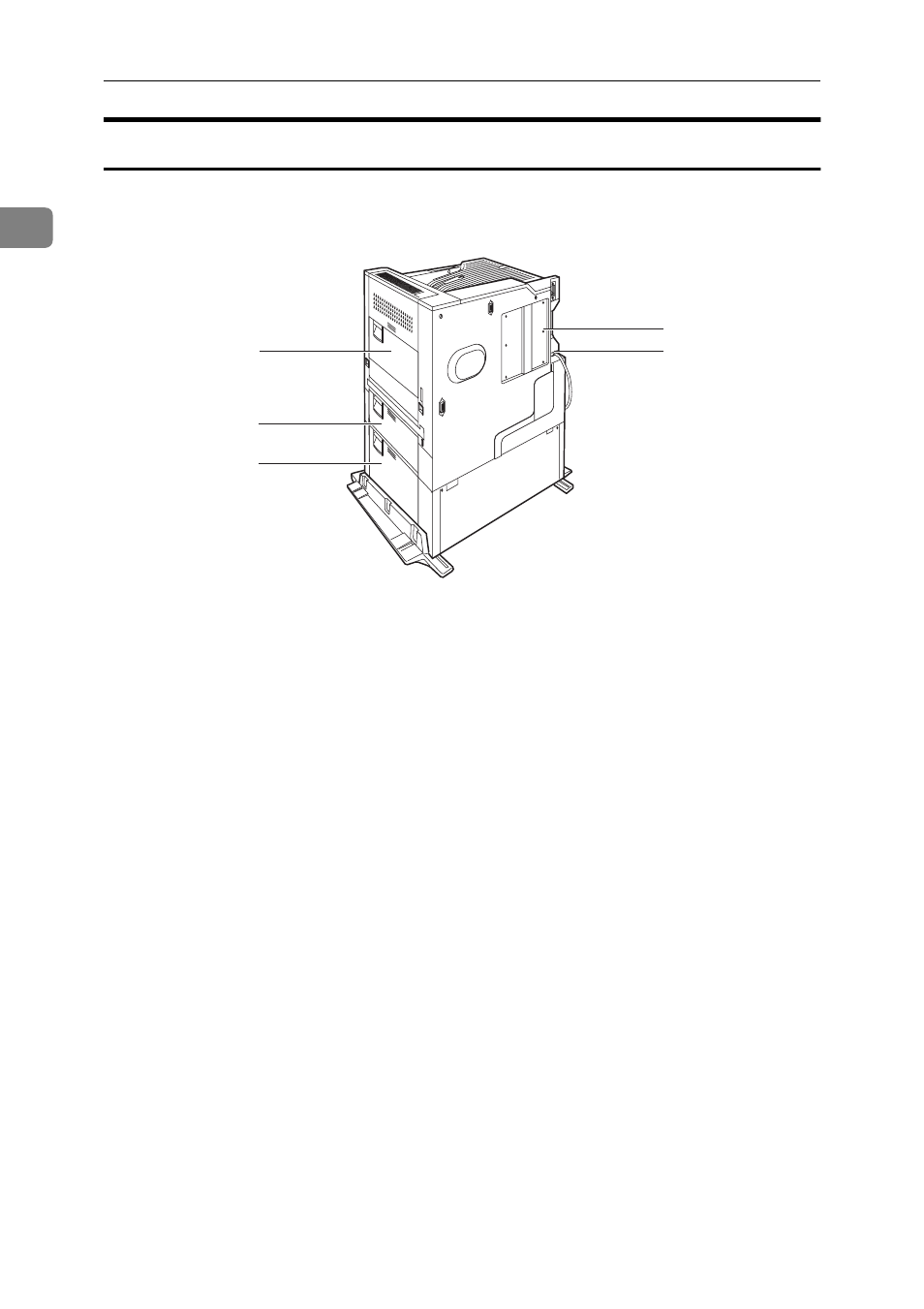

Exterior: Rear View
1.
Right Cover
Open this cover to replace the fusing unit
or transfer roller, or to remove the misfed
paper.
2.
Lower Right Cover 1
Open this cover to remove misfed paper.
3.
Lower Right Cover 2
Open this cover to remove misfed paper.
4.
Printer Board Cover
Open this cover to install Memory Unit
TypeB, Printer Hard Disk Type 185 or
both.
5.
Power Cord
Plug this cord into a wall outlet.
4
5
2
1
3
ZDEH020E
