CAUTION
Notes on Connecting the Target System:
• Always shut OFF power before connecting the target system. Otherwise internal
circuits can be destroyed.
• Take care not to attach the converter board in a wrong direction. It may cause a fatal
damage to the emulation pod.
3.7 Connecting the Target System
You can connect the emulation pod to the target system as shown in Figure 3.17 below.

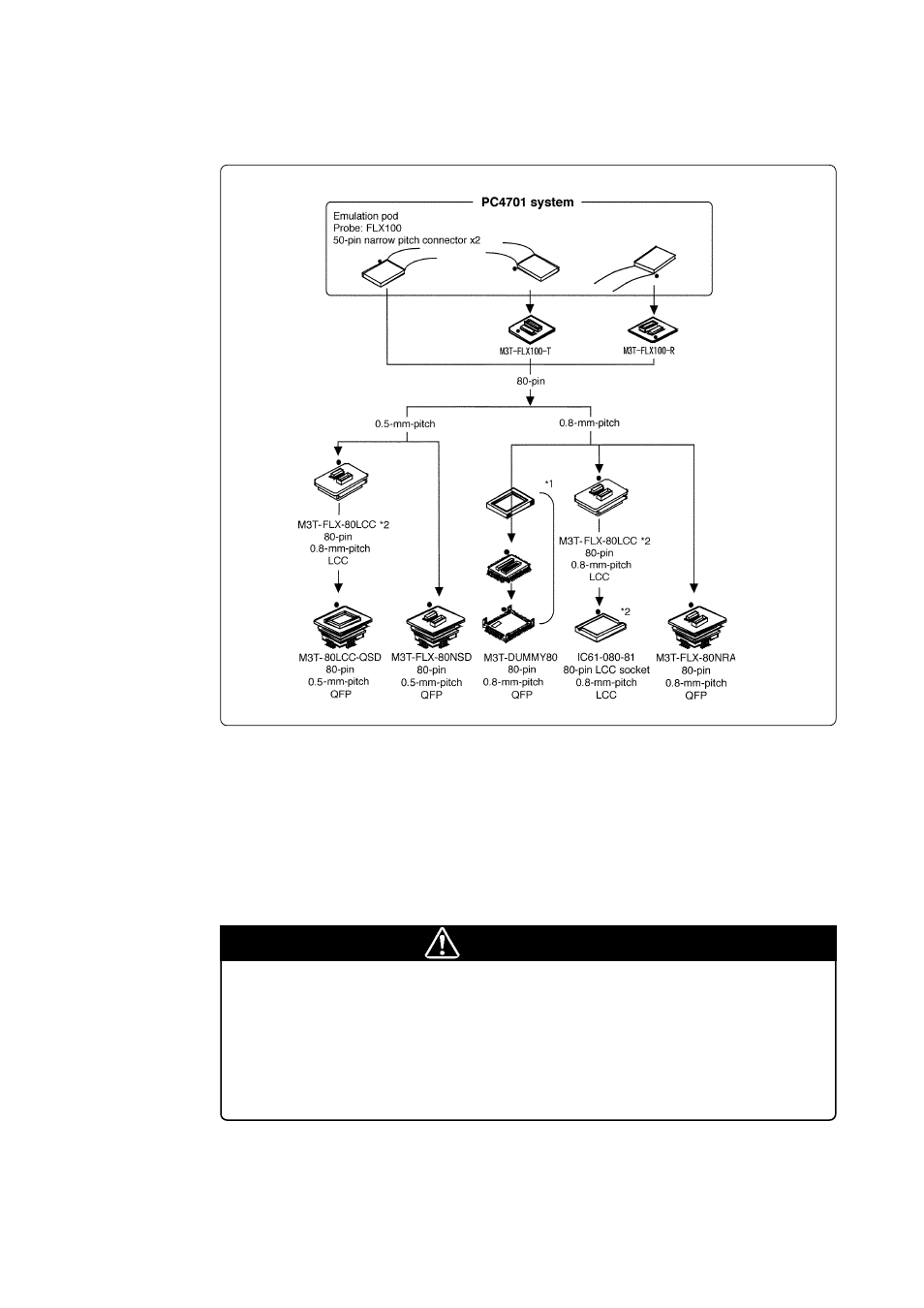

Figure 3.14 Connecting the emulation pod and target system
*1 These three items are available in one package.
*2 The M3T-FLX-80LCC and IC61-080-081 are included in this emulation pod package.
* To purchase the M3T-FLX100-T, M3T-FLX100-R, M3T-80LCC-QSD, M3T-DUMMY80,
M3T-FLX-80NRA and M3T-FLX-80NSD, contact your local distributor.
* The IC61-080-081 is a product of Yamaichi Electronics Co., Ltd. For purchasing it or for
technical information, contact Yamaichi Electronics Co., Ltd. (http://www.yamaichi.co.jp/e/
index.shtml)
