(3) Replacing the Oscillator Circuit Boards
Figure 3.14 shows how to replace the oscillator circuit boards. For the position of the oscillator circuit
board, see "Figure 2.2 Internal view of the emulation pod" (page 21).

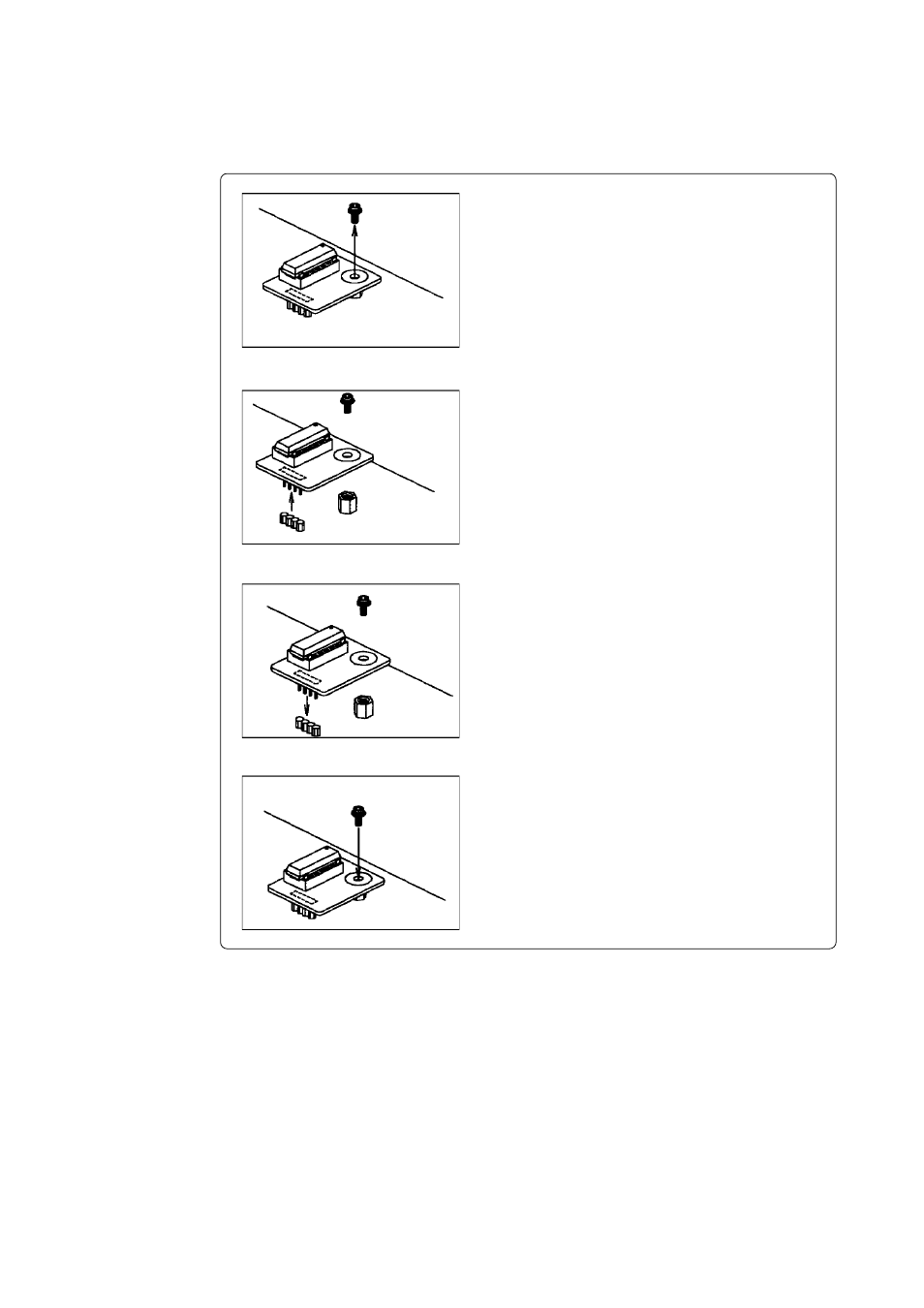

Figure 3.14 Replacing the oscillator circuit boards
(1) Unscrew the screw connecting the oscillator circuit
board.
(2) Lift off the oscillator circuit board.
(3) Attach the J1 connector of another oscillator circuit
board for replacement to the connectors J5 (XCIN) or
J6 (XIN) of the MCU-dependent board M37641T-
RPDM.
(4) Secure the oscillator circuit board to the MCU-
dependent board M37641T-RPDM with the screw.
