(2) Inside of the Emulation Pod

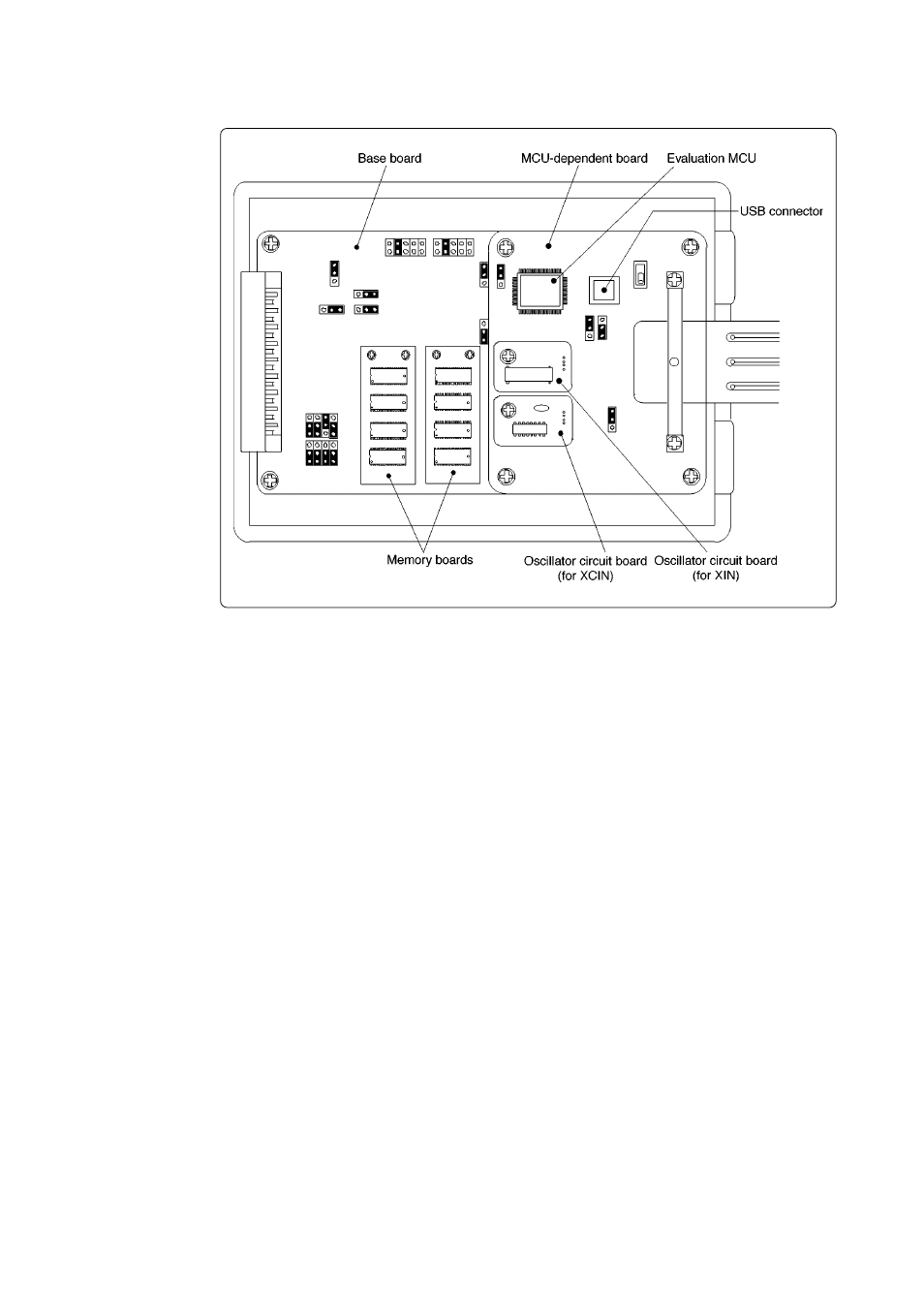

Figure 2.2 Internal view of the emulation pod
(1) Base board
Base board for the 740 Family MCUs which controls the interface with the PC4701 and the
evaluation MCU.
(2) Memory board
Board on which the 128 KB emulation memory is mounted.
(3) Oscillator circuit board
Board on which the oscillator circuit in the emulation pod is mounted. Its operating frequency can
be changed by replacing this board with other available oscillator circuit boards.
(4) MCU-dependent board
Board grouping parts (number of pins or added functions) which vary according to MCU model.
(5) Evaluation MCU
Microcomputer (dedicated to the emulator) operated in the specific mode for the emulator. It is
necessary to replace the evaluation MCU according to the MCU you use.
