( 26 / 68 )

3.3 Switch Settings

Figure 3.3 shows the positions of the switches and Table 3.1 shows each switch setting.

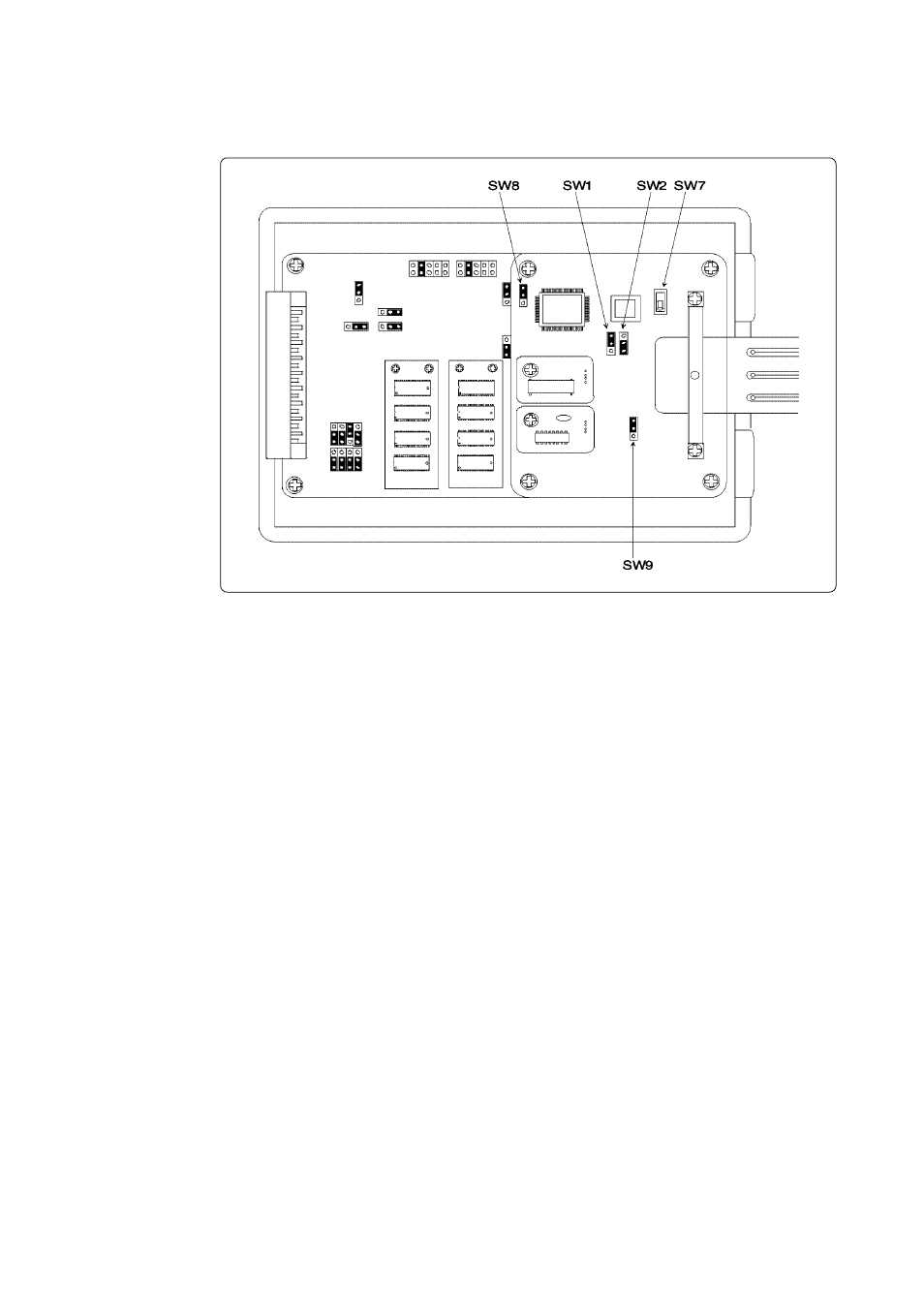

Figure 3.3 Positions of the switches and their factory-settings

* Switches SW3 to SW6 have not been mounted. These switches cannot be used.

* For the circuit configuration of the switches, refer to "5.2 Connection Diagrams" (page 47).
