EYE-Q TM Autoconvergence
ON ALL SOURCES
The “On all sources” functions as the “On current source.” It
includes also three options:
Touch-up
Align
Align from mid-position
The difference is that the convergences will be carried out on all
sources of the projector, i.e. all available memory banks of the pro-
jector. The total number of sources is displayed between the brack-
ets.
TOUCH-UP ON ALL SOURCES
When TOUCH-UP below ON ALL SOURCES by pushing up or
down keys of the control disc;
Press the button to start up the static convergence.
The process will repeat for as many times as the total number of the
sources until all sources are perfectly aligned.
If the process will repeat for as many times as the total number of
the sources until all sources are perfectly aligned.
If the process is successfully completed, the projector will return to
image display of the current source.
ALIGN ON ALL SOURCES
When ALIGN is selected, the automatic convergence on all
sources will be carried out automatically, starting from the existing
settings.
By projecting alternately red and blue lines, 25 convergence areas
are aligned to the green pattern. The process will repeat for as
many times as the total number of the sources until all sources are
perfectly aligned.
Follow the steps below to select:
Highlight ALIGN below ON ALL SOURCES by pushing up or
down keys of the control disc;
Press the button to start up the automatic convergence
of the entire screen.
If the process is successfully completed, the projector will return to
image display of the current source.
Use this option when the convergence is close to proper alignment.

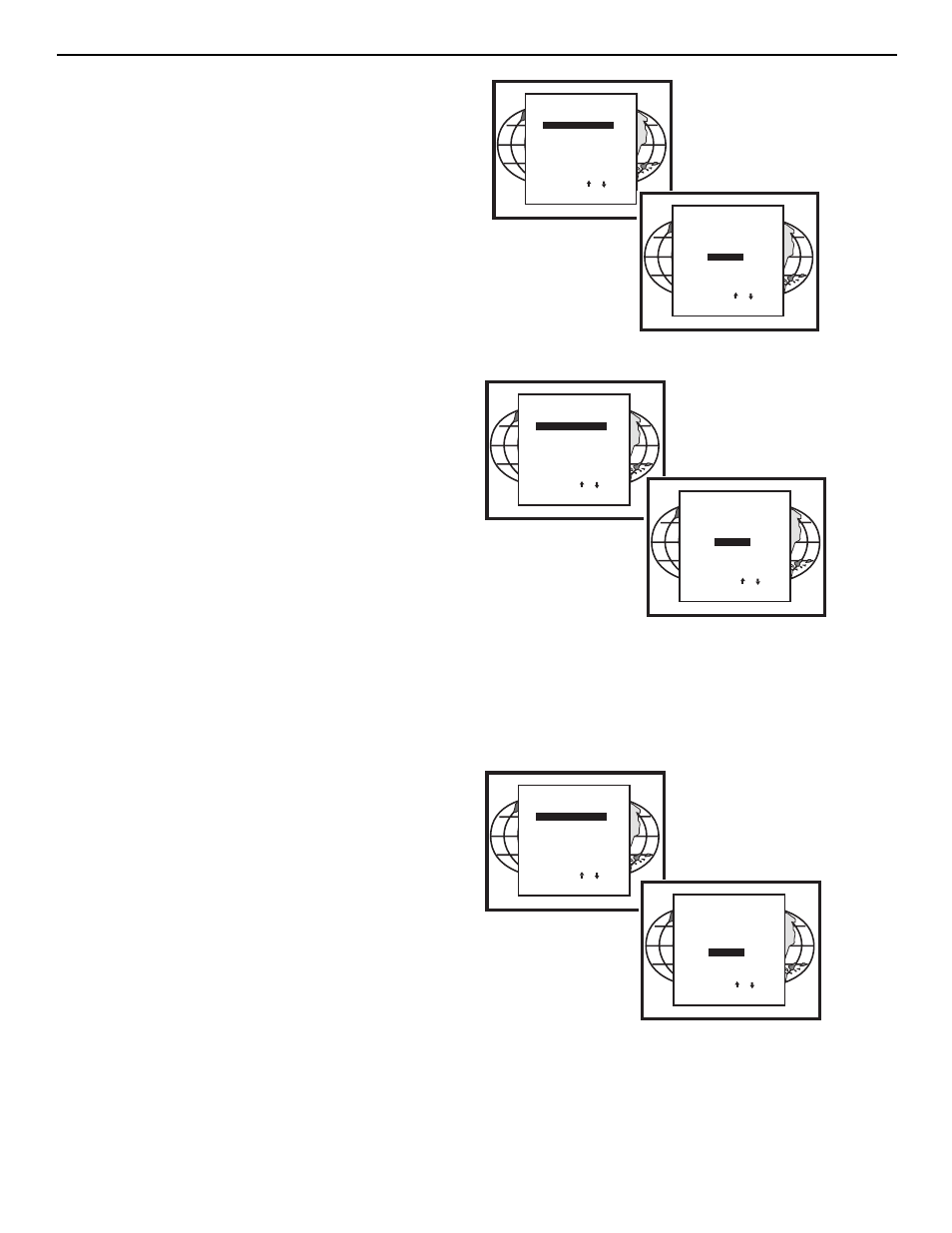

EYE-Q
