Random Access Adjustment Mode

Geometry Adjustments

The geometry adjustments have to be done only on the green image. These adjustments are
automatically implemented for the other color images : Left-right (EW) and Top-Bottom Cor-
rections, Blanking, Horizontal Amplitude, Vertical Amplitude, Vertical Linearity and Horizon-
tal Phase.

Highlight GEOMETRY by pushing the control disc up or down and press ENTER to display
the geometry menu.

Within the Geometry Adjustment menu, the following adjustments are available :

- Horizontal Phase (not for internal # pattern).
- Raster Shift
- Left-Right Corrections
- Top-Bottom Corrections
- Horizontal Size
- Vertical Linearity
- Vertical Size
- Blanking

The convergence corrections are disabled during geometry corrections. The blanking correc-
tions are only enabled during the blanking adjustments.

Horizontal Phase Adjustment

Push the control disc up or down to highlight H PHASE on Geometry menu and the press
ENTER.

Note : No horizontal phase adjustment is available on the internal # pattern.

For external sources :
If the raster shift is correctly adjusted, the H Phase text box is projected in the middle of the
raster. At that moment, the “><” icon indicates the middle of the raster.
Adjust the H Phase control until the middle of the projected image is equal with the middle of
>< icon.

Note :

- If the genlocked pattern was selected, the external source will be

displayed.

A bar scale and a number indicator (between 0 and 100) on the screen give a visual indication
of the horizontal phase adjustment.

ENTER will display Geometry menu.
EXIT will return to Internal Crosshatch Selection or Setup
Pattern Selection Menu.
ADJUST returns to operational mode.

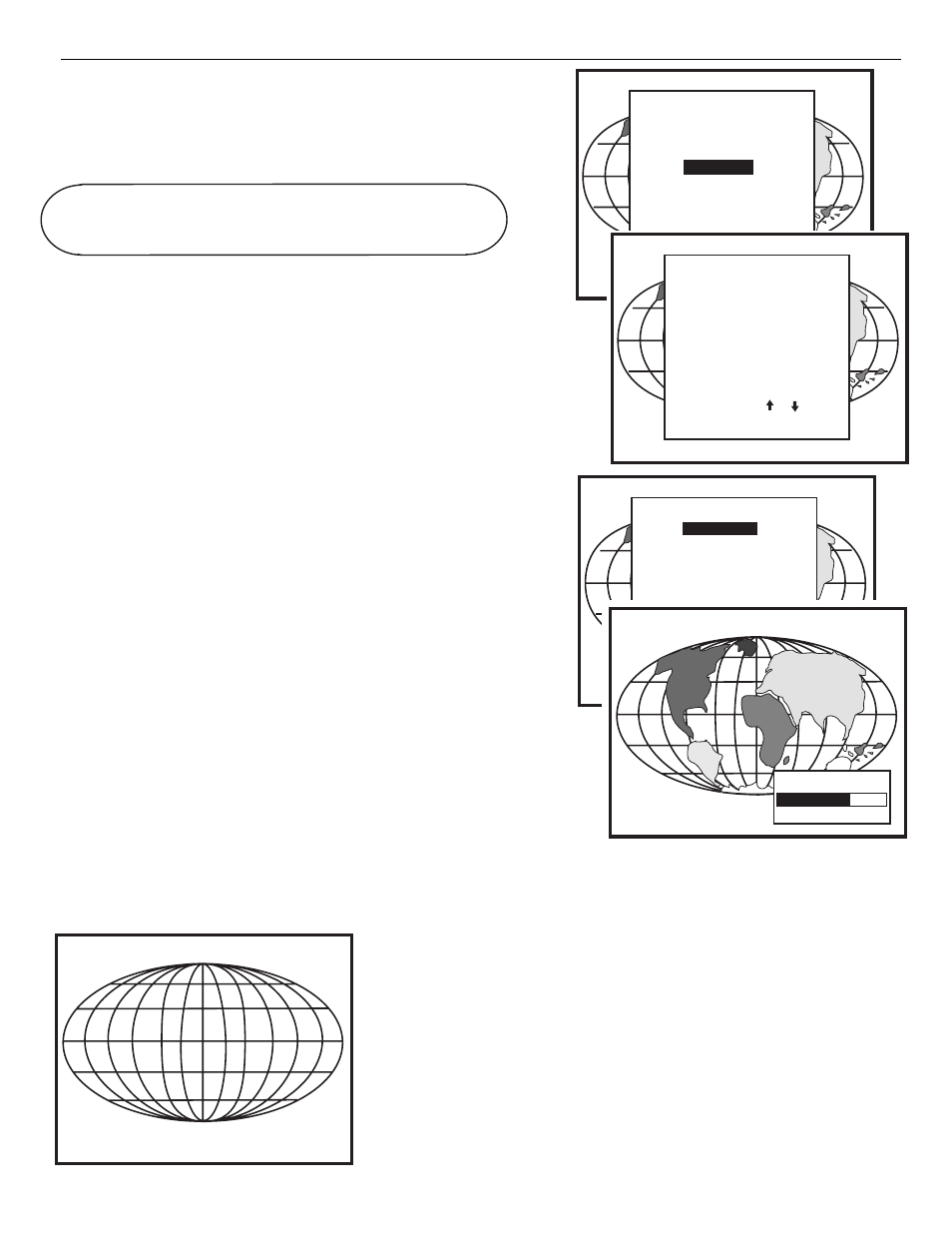

RANDOM ACCESS
ADJUSTMENT MODE

PICTURE TUNING

CONVERGENCE
COLOR SELECT

Select with
then
to return.

GEOMETRY

H PHASE
RASTER SHIFT
LEFT - RIGHT (E-W)
TOP - BOTTOM (N-S)
SIZE
V LINEARITY
BLANKING

Select with
then
to return.

GEOMETRY

RASTER SHIFT
LEFT - RIGHT (E-W)
TOP - BOTTOM (N-S)
SIZE
V LINEARITY
BLANKING

Select with
then
to return.

H PHASE
