Page 12
3-2
Connections
SOURCE SELECTION
SELECT AN INPUT
FROM BELOW:
RGB
S-VIDEO
VIDEO
COMPONENT VIDEO
Select with
or
then
FROM RCU
GENERAL ACCESS
SHARPNESS
TINT
COLOR
BRIGHTNESS
CONTRAST
5
6
3
4
1
2
Enter ADJUST
Select with ,
or
then
FROM LOCAL KEYPAD
RS232 IN
RS232 OUT
IR
COMM PORT
REMOTE
R
G(s)
B H V VIDEO S - VIDEO
This device complies with part 15 of
the FCC rules. Operation is subject to
following two conditions (1), This
device may not cause harmful inter-
ferance, and (2) this device must
accept any interferance received
including interferance that may cause
undesired operation.
1
2
3
Location
Projector input
2
Comp. Video
3
S - Video
1
RGBS or RGsB
1
RGB3S or RG3sB
1
(R - Y) Y (B - Y)3S or
(R - Y)Ys(B - Y)
1
(R - Y) Y (B - Y)3S or
(R - Y)Y3s(B - Y)
2
3
4
5
6
1
Composite Video
2
Input signal Y/C (luma/chroma)
3
Input signal : R, G and B with composite sync on
G or separate composite sync.
4
Input signal : R, G and B with Tri-level sync on G
or seperate Tri-level sync.
5
Input signal : R-Y, Y and B-Y with composite sync
on Y or with separate composite sync.
6
Input signal : R-Y, Y and B-Y with separate Tri level
sync or with composite Tri-level sync.
GENERAL
ACCESS
MENU
ITEMS
AVAILABLE FROM LOCAL KEYPAD

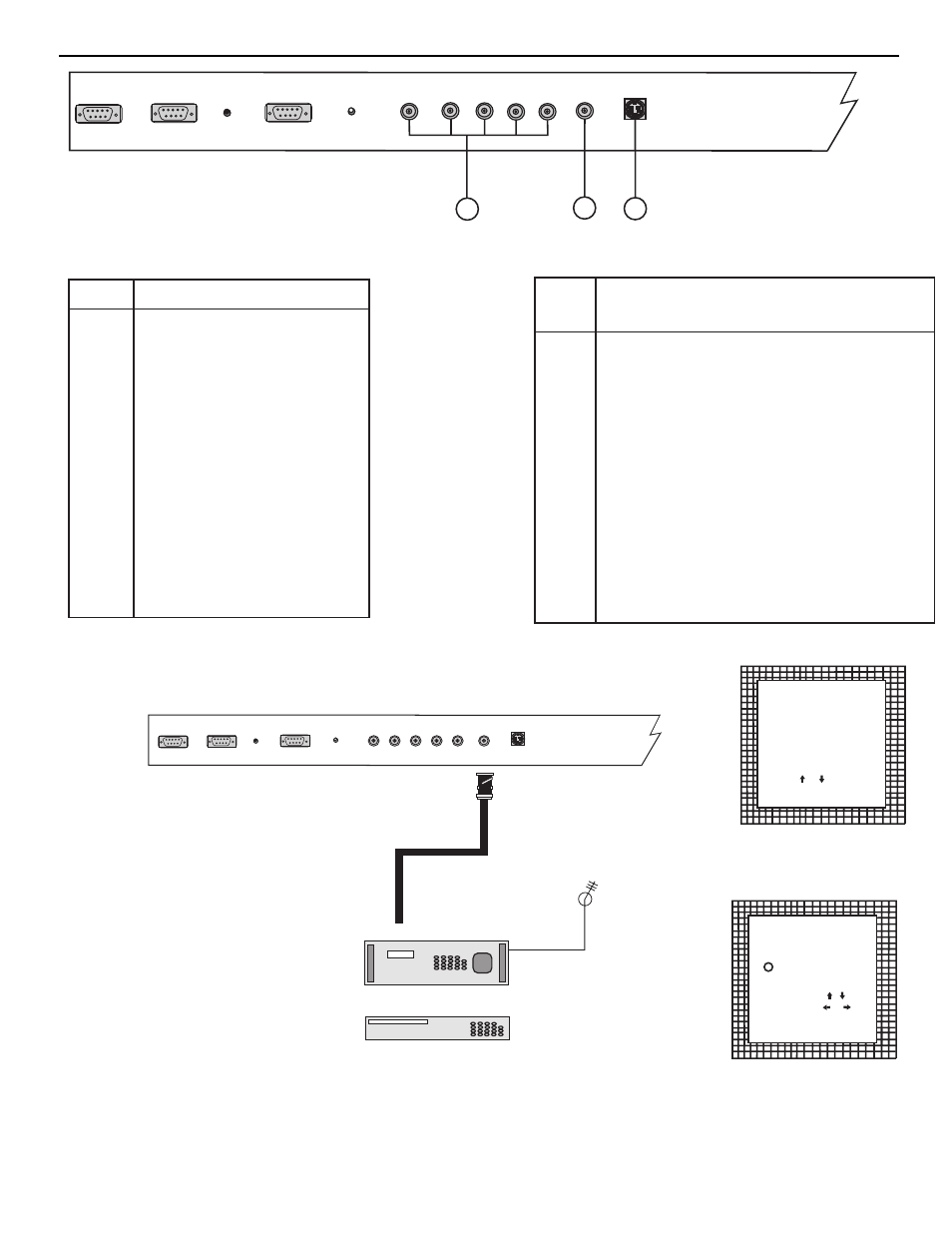

Connecting a Composite Video Source to the BNC video input
Composite
video
TV tuner
VCR
RS232 IN
RS232 OUT
IR
COMM PORT
REMOTE
R G(s) B H V VIDEO S - VIDEO
This device complies with part 15 of
the FCC rules. Operation is subject to
following two conditions (1), This
device may not cause harmful inter-
ferance, and (2) this device must
accept any interferance received
including interferance that may cause
undesired operation.
Composite video signals from a VCR, OFF air
signal decoder, etc.
Note: Composite video should normally be
connected to the controller.
Video input selection:
a. with the RCU: Select “video” in the source
selection menu.
b. with the local keypad.
- press ADJUST key, the
General access menu is dis-
played on the screen.
- use the control disc to high-
light 1.
- press ENTER to select the
highlighted source.
