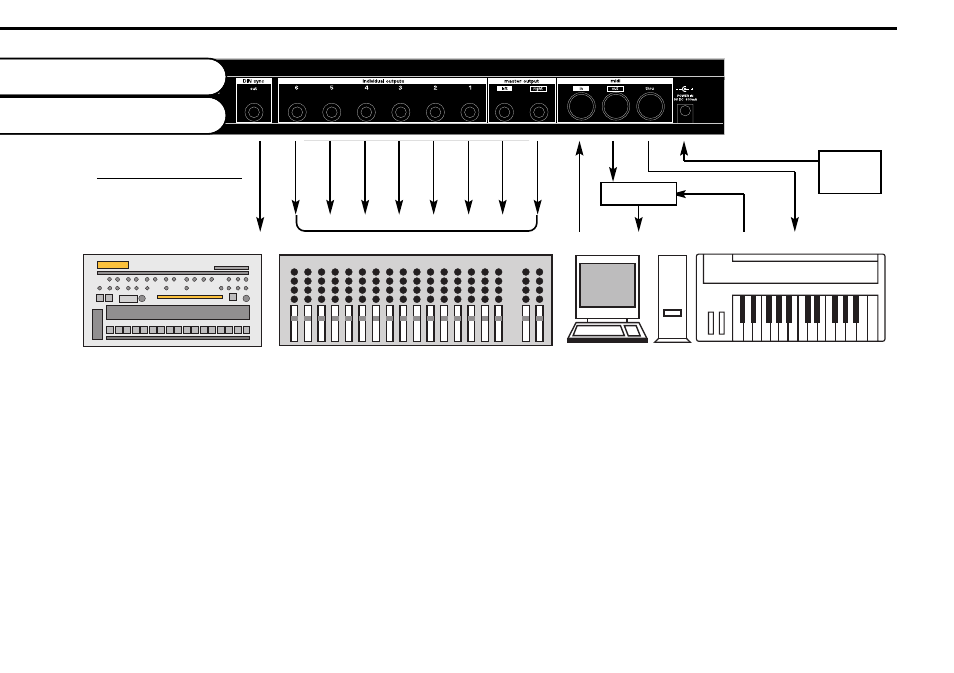

This is the advanced way to setup the DrumStation and utilises all of the rear panel features. This setup allows realtime
recording of knob movements onto the Computer Software/Sequencer as both the MIDI output of the keyboard and the
MIDI output of the DrumStation are merged with an external (not supplied) MIDI Merge box. If the Master Keyboard is a
“Workstation” i.e. it has a Synthesiser built in, turn “Local Off” or the equivalent in its MIDI setup. ( Refer to the manufactur-
ers Owners Manual for details on how to do this. ) Turn the Computer Software/Sequencer’s “Soft Thru” (or sometimes
called “Echo Back”) to the “ON” or “Enabled” position. Now when selecting a “Track” in the Computer Software/Sequencer
that is assigned to the MIDI RX channel of the Drumstation, (Refer: Page 11) playing the keyboard should play the
Drumstation through the Headphones/Monitors. Similarly “Tracks” in the Computer Software/Sequencer that are assigned to
the MIDI channel(s) of the “Workstation” should make it produce sound. If not please refer to the Keyboard & Computer
Software/Sequencer manufacturers Owners Manuals for details on how to do this. When using the DIN Sync feature ensure
that your sequencer is transmitting MIDI Clock. If is is not this function will not work.

Applications

Advanced

6

Vintage Equipment DIN Sync Input

Mixer/Amplifier Audio Inputs

MIDI OUT MIDI IN

MIDI OUT MIDI IN

MERGE

Novation

PSU-6

Power Supply

ADVANCED SETUP

Mixer/Amplifier

Computer/Sequencer

Master Keyboard/Module
