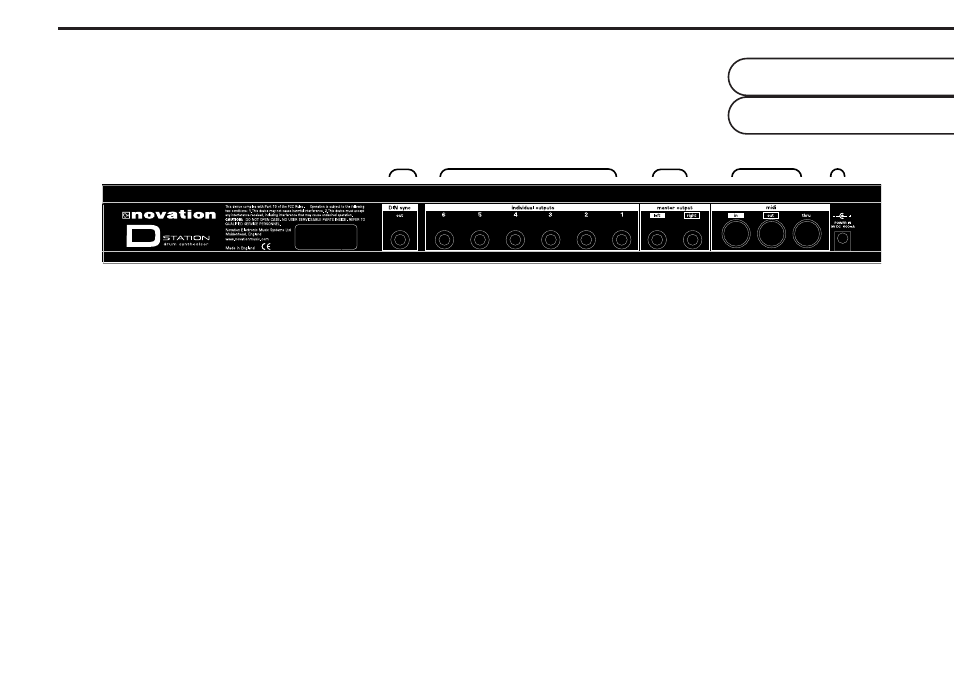

Rear Panel
Connections
3
1 DIN Sync. Out
This connector is used to control the Tempo/Start-Stop of classic analogue
drum machines or synthesisers from the MIDI Clock.
2 Individual Outputs
The six connectors in this section are used to separate a drum sound(s) from
the main stereo left/Right outputs. The sounds(s) can then be equalised or
processed individually.
3 Master Output
The two connectors deliver a stereo line level output signal for connection to a
mixing desk or amplifier.
4 MIDI
IN - This connector is used to receive MIDI Data from an external device.
OUT - This connector is used to Transmit MIDI Data to an external device.
THRU - This connector re-transmits MIDI Data received by the MIDI IN socket
to an external device.
5 9V DC INPUT
Connect the output plug of the AC Adapter supplied ( PSU-4 ) with the
DrumStation to this socket.
1 2 3 4 5
