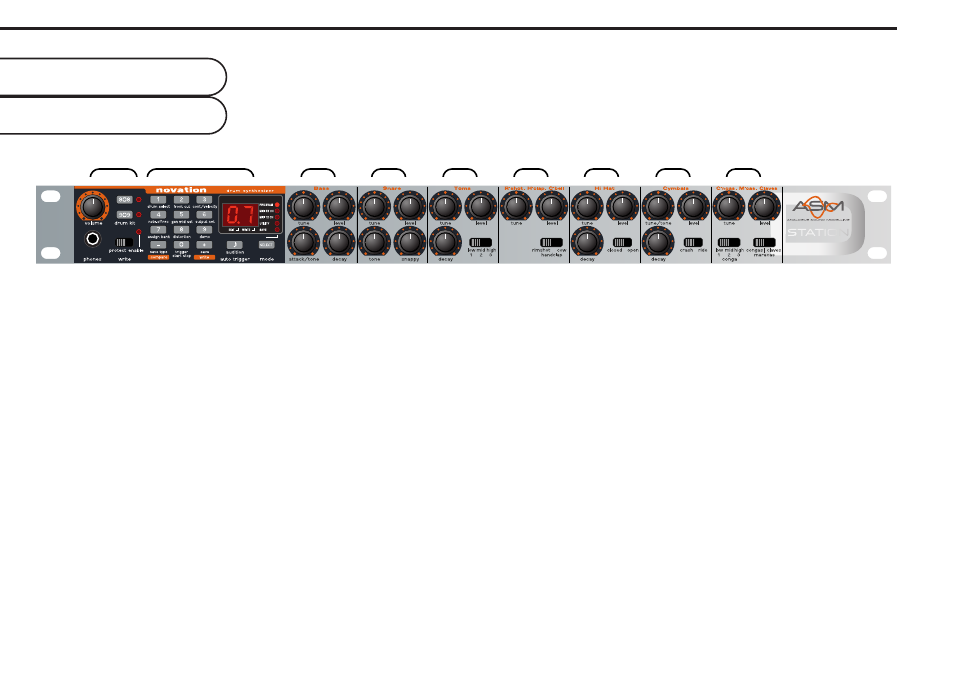

Front Panel
Controls
2
1 2 3 4 5 6 7 8 9
1 Master Volume Section
This section contains the Master Volume control, Drum Kit select buttons,
Headphone output socket and the Program write switch.
2 Data Entry/Program Section
This section contains the 12 Data Entry buttons, Display and Menu LED’s,
Audition/AutoTrigger and Mode select buttons.
3 Bass Drum Section
This section contains the Bass Drum Level, Tune, Attack/Tone, and Decay
controls.
4 Snare Drum Section
This section contains the Snare Drum Level, Tune, Tone, and Snappy controls.
5 Tom Toms Section
This section contains the Tom Toms Drum Level, Tune, Decay and Select
controls.
6 Rim Shot /HandClap Section
This section contains the Rim Shot and HandClap Level, Tune and Select
controls.
7 Hi Hat Section
This section contains the Hi Hat Level, Tune, Decay and Select controls.
8 Cymbals Section
This section contains the Cymbals Level, Tune/Tone, Decay and Select
controls.
9 Congas/Maracas/Claves Section
This section contains the TR808’s Congas/Maracas/Claves Level, Tune, Select
and Conga Select controls.
