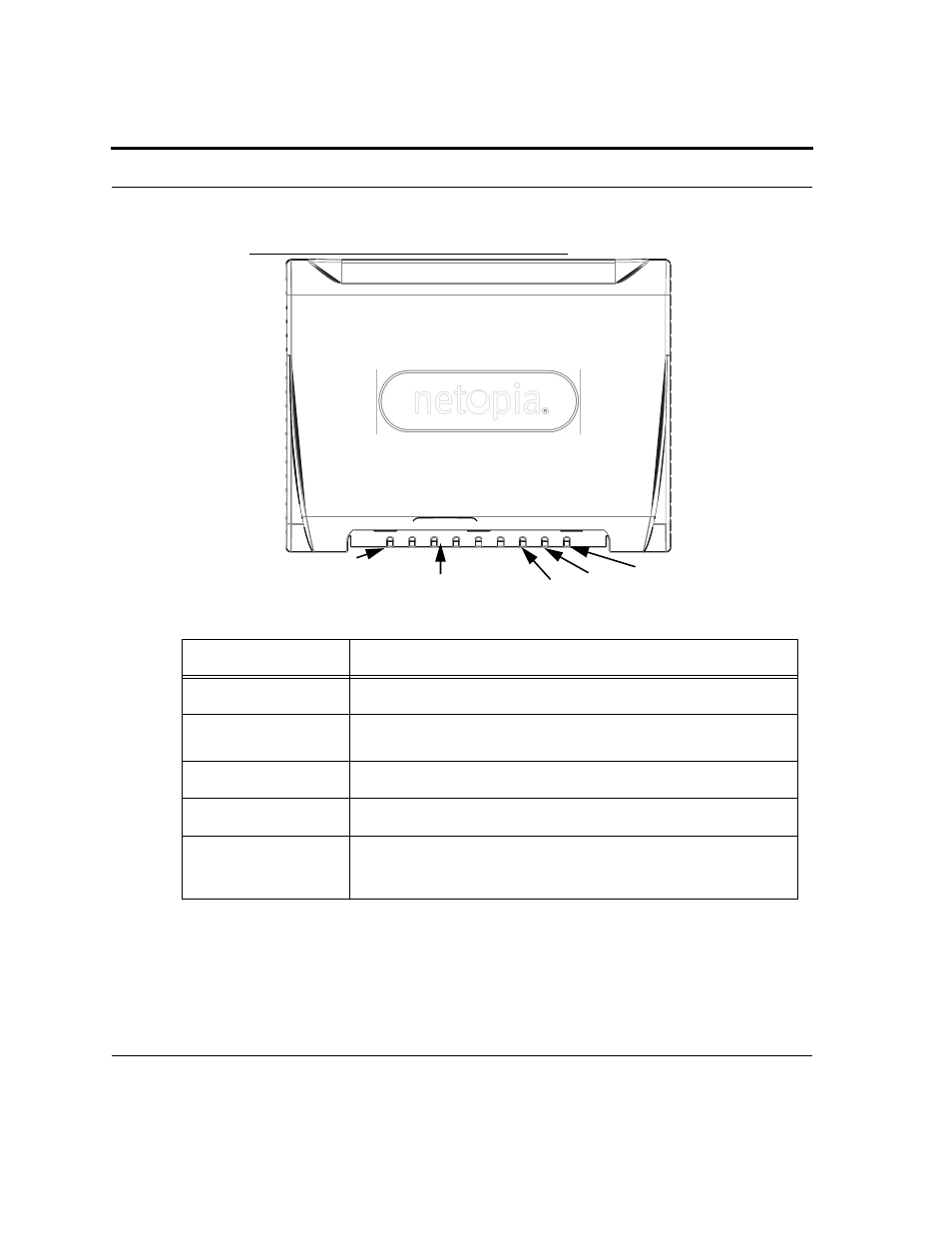

Netopia Gateway 2247NWG status indicator lights
LED
Action
Power
Green
when power is on.
Red
if device malfunctions.
Ethernet 1, 2, 3, 4
Solid
green
when connected. Flash
green
when there is activity on
the LAN.
Wireless
Flashes
green
when there is activity on the wireless LAN.
DSL
Solid
green
when Internet connection is established.
Internet
Solid
green
when Broadband device is connected. Flashes
green
for
activity on the WAN por t. If the physical link comes up, but PPP or
DHCP fail, the LED turns
red
.
O
P
W
R
E
1
2
3
4
ETHER NET
W
RI
L
E
S
E
S
S
D
L
N
I
E
T
N
R
T
E
