Status Indicator Lights

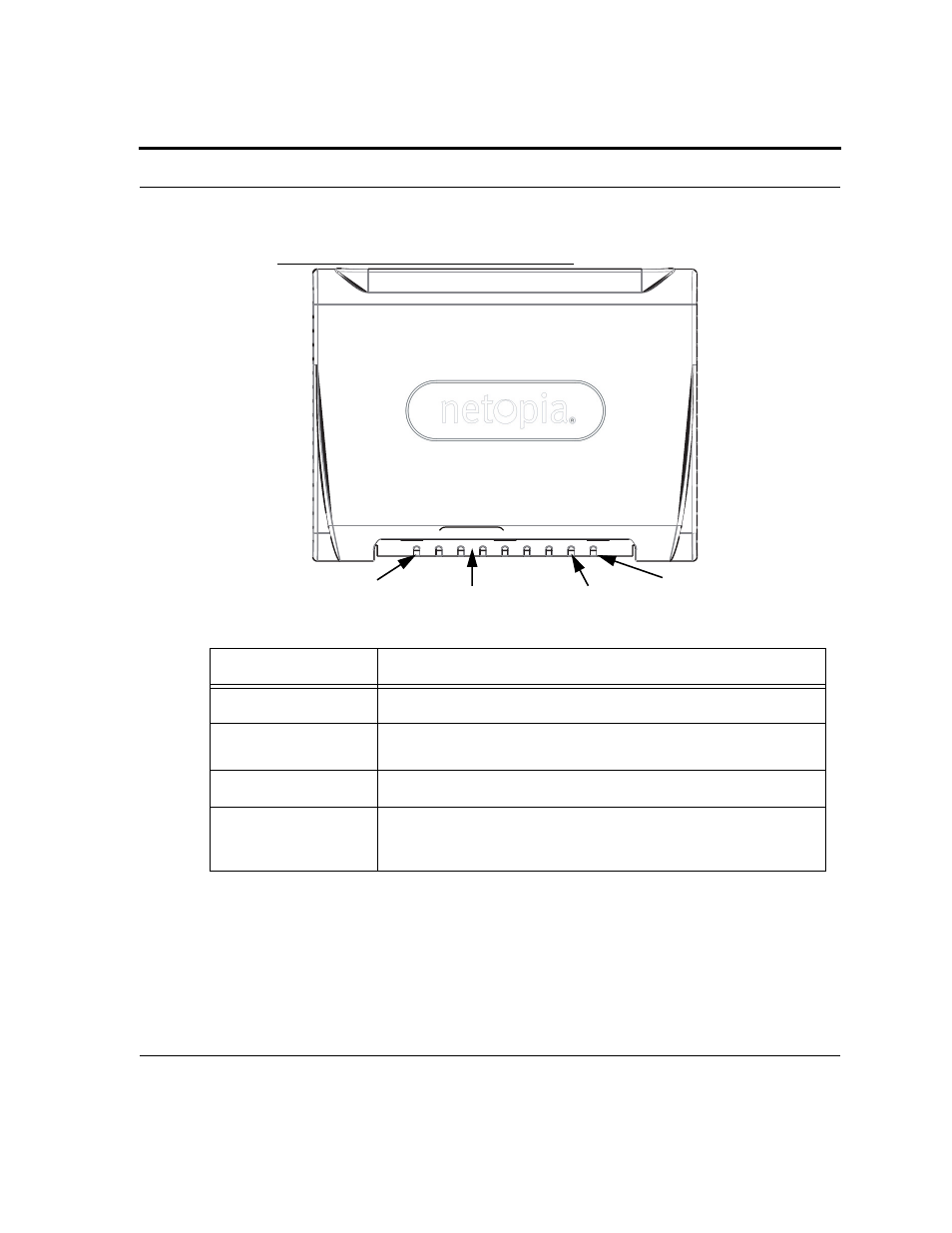

Netopia Gateway 2246N status indicator lights
LED Action
Power Green when power is on. Red if device malfunctions.
Ethernet 1, 2, 3, 4
Solid green when connected. Flash green when there is activity on
the LAN.
DSL Solid green when Internet connection is established.
Internet
Solid green when Broadband device is connected. Flashes green for
activity on the WAN por t. If the physical link comes up, but PPP or
DHCP fail, the LED turns
red .
O P
W
R E
1 2 3 4
ETHER NET
S D
L
N I
E T
N R
T E
Power
Ethernet 1, 2, 3, 4 DSL
Internet
