Installing an XFP

Prerequisites

•

Verify that the XFP is the correct model for your network configuration.

Procedure steps

Step

Action

Remove the XFP from its protective packaging.

Grasp the XFP between your thumb and forefinger.

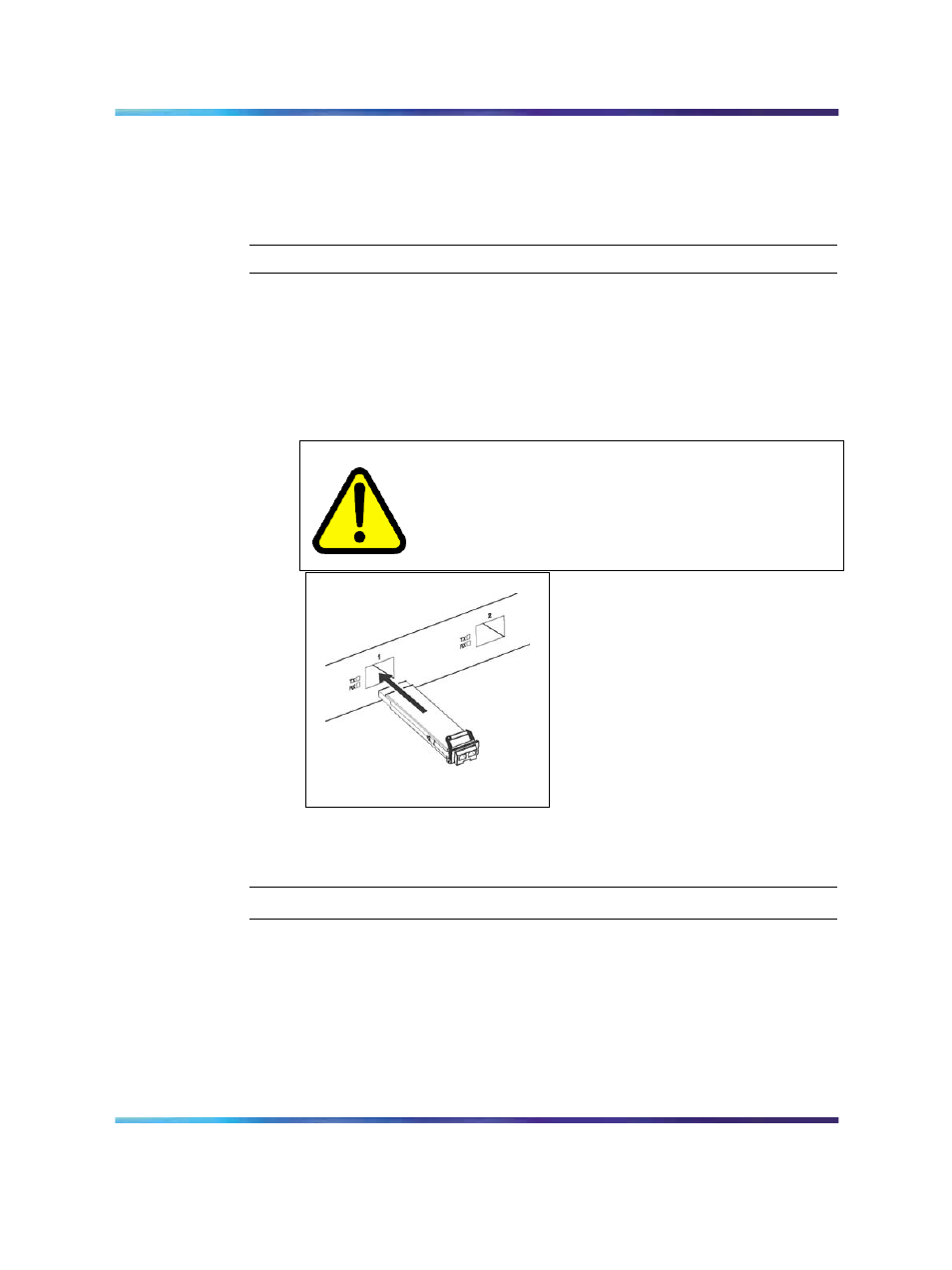

Insert the XFP into the XFP slot on the module.

Apply a light pressure to the XFP until the device clicks and locks
into position in the module.

CAUTION

Risk of equipment damage

XFPs are keyed to prevent incorrect insertion. If the XFP
resists pressure, do not force it; turn it over, and reinsert it.

Remove the dust cover from the XFP optical bores and insert the
fiber optic cable.

—End—

Procedure job aid: locking and extractor mechanisms

Depending on the transceiver manufacturer, your XFP transceiver can have
various types of locking/extractor mechanisms.

The following figure shows a typical bail-type mechanism used on XFP
transceivers. Pull the bail down to release the device.
