1001rp server description
Standard 1.0
20
CallPilot
Sample network setup: Meridian 1

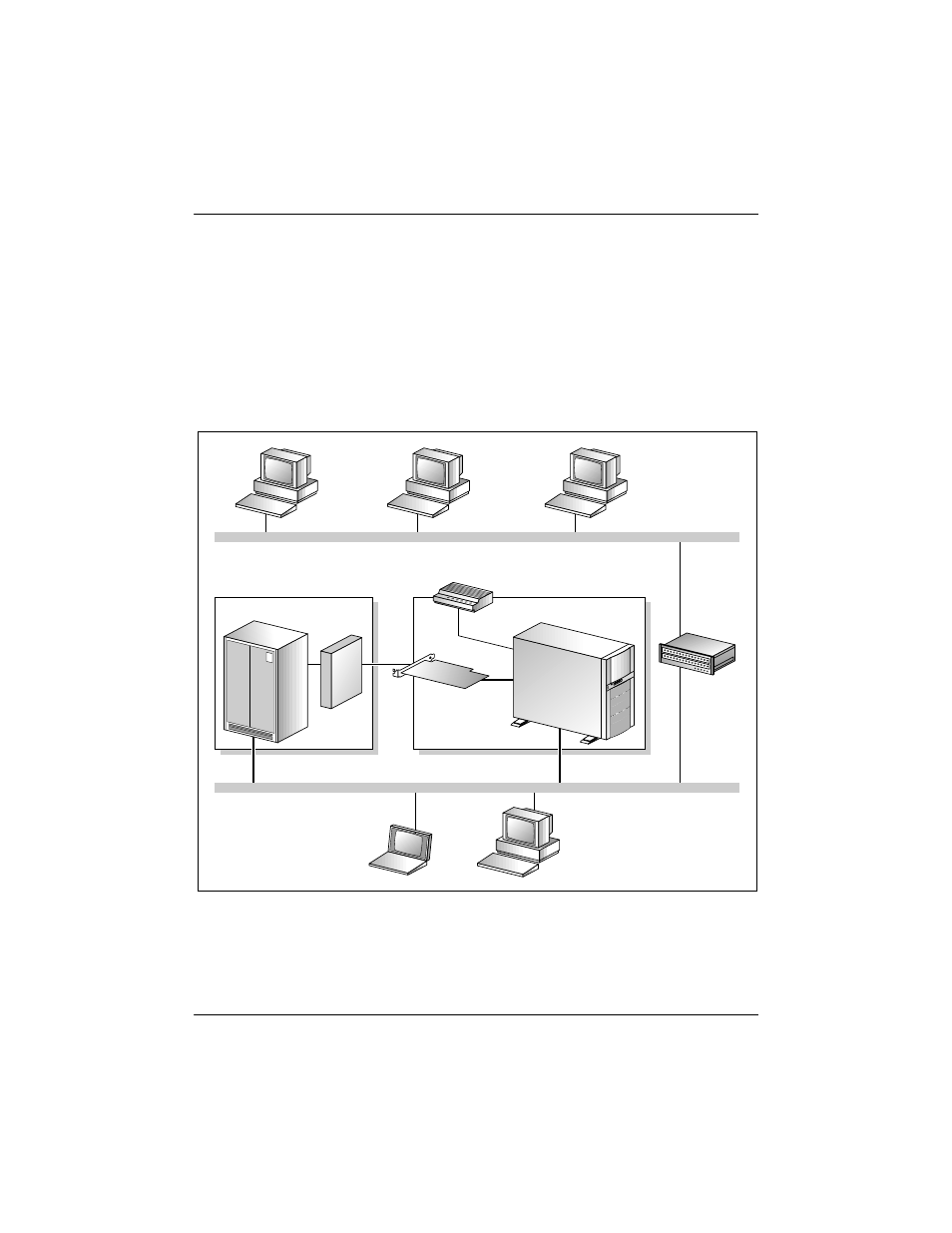

The following diagram shows a CallPilot server sample network setup with
a Meridian 1 switch. The Meridian 1 switch can be one of the following:
Option 11C or Option 11C Mini
Option 51C
Option 61C
Options 81 and 81C
G101626
Customer LAN (optional)
Embedded LAN
Web-enabled
administrative
PC
Web-enabled
administrative
PC
Desktop
client PC
Desktop
client PC
Meridian 1 switch
Laptop
MGate
card
Modem
MPB16-4
board
CallPilot server
Router or
Ethernet
switch
(optional)
