Reference Manual for the ADSL Firewall Router DG834
Connecting the Router to the Internet
3-13
202-10005-05, June 2005
4.
Click the Test button to test your Internet connection. If the NETGEAR Web site does not
appear within one minute, refer to
.
Wizard-Detected Fixed IP (Static) Account Setup
If the router determines that your Internet service account uses Fixed IP assignment, you will be
directed to the page shown in
below:

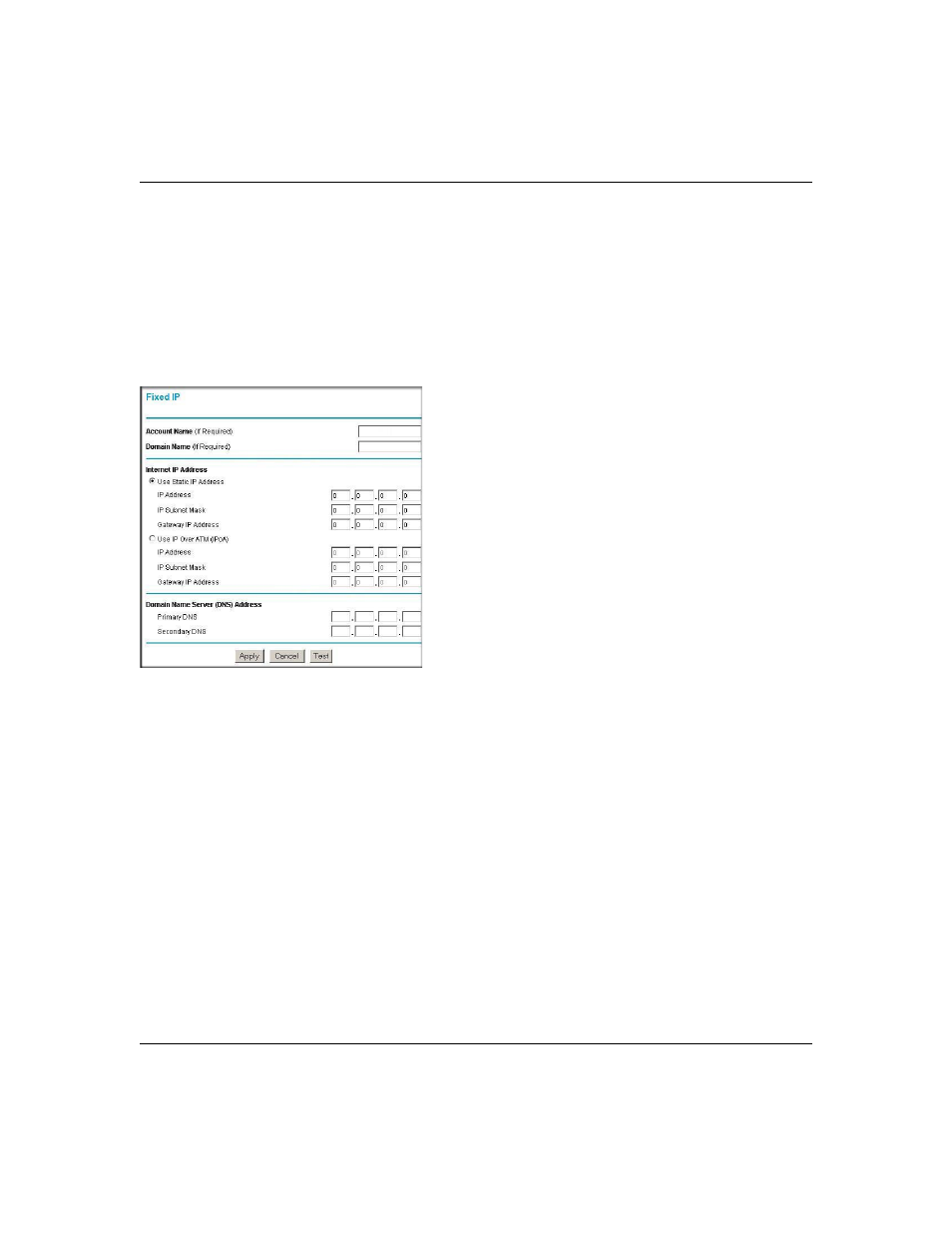

Figure 3-14: Setup Wizard menu for Fixed IP address
1.
If required, enter the Account Name and Domain Name from your ISP.
2.
Choose “Use Static IP Address” or “Use IP Over ATM” (IPoA — RFC1483 Routed)
according to the information from your ISP. If you choose IPoA, the router will be able to
detect the gateway IP address but you still need to provide the router IP address.
3.
Enter your assigned IP Address, Subnet Mask, and the IP Address of your ISP’s gateway
router. This information should have been provided to you by your ISP. You need the
configuration parameters from your ISP you recorded in
“Record Your Internet Connection
4.
Enter the IP address of your ISP’s Primary DNS Server. If a Secondary DNS Server address is
available, enter it also.
